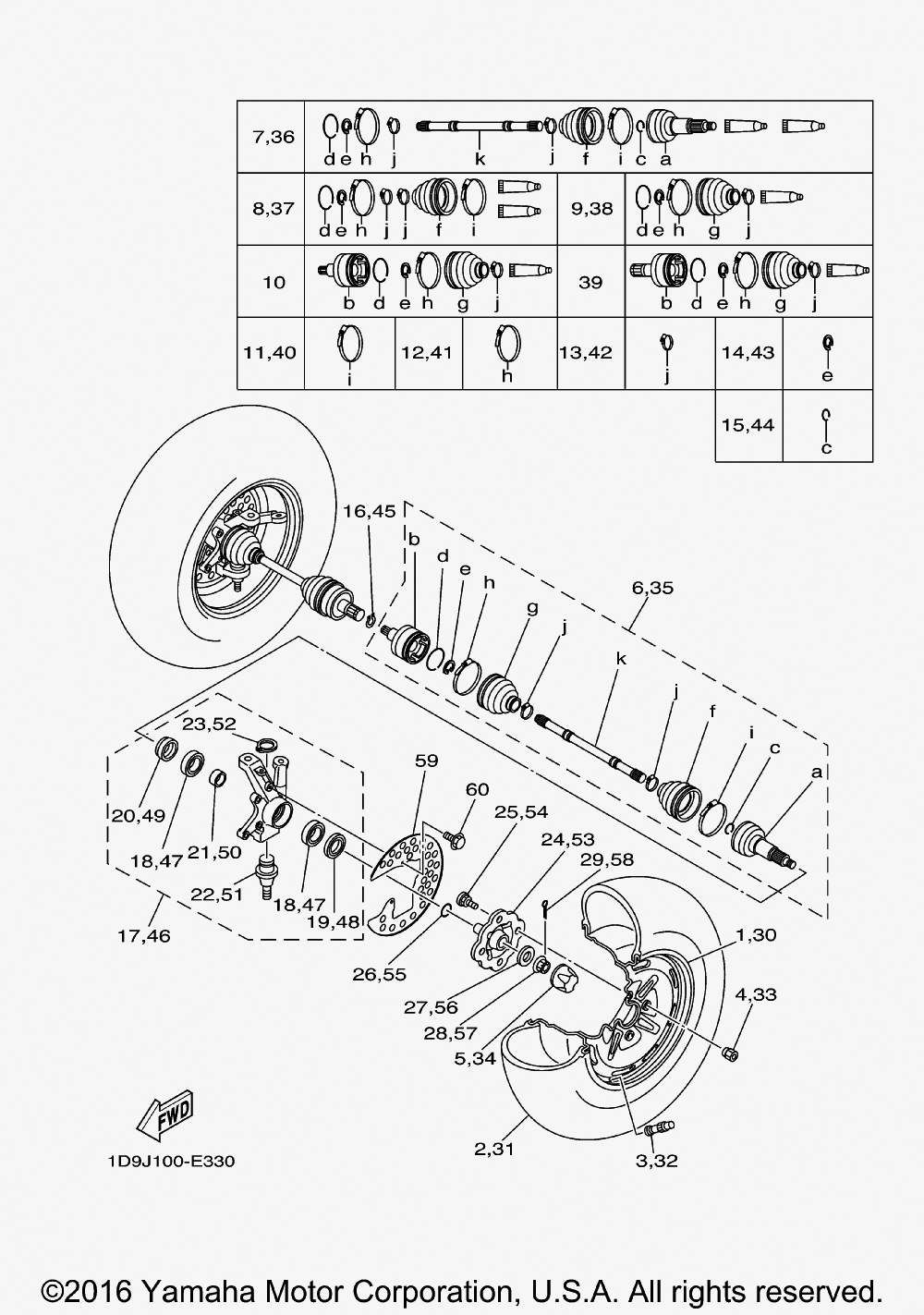

WHEEL - FRONT W/ AXLE ASSY для Yamaha KODIAK 450 4WD SPECIAL ED. - 2006 года выпуска
-
№АртикулНазвание
-
11D9-F5180-20-00 WHEEL COMP.WHEEL COMP.
-
294108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65ND-F518F-00-00 DRIVE SHAFT ASSY (LH)DRIVE SHAFT ASSY (LH)
-
75ND-F510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
85KM-2510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
95KM-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
105KM-2510J-00-00 ...DOUBLE OFF SET JOINT (LH)...DOUBLE OFF SET JOINT (LH)
-
113HN-2511G-01-00 ...CIRCLIP...CIRCLIP
-
124KB-2511H-00-00 ...BOOT BAND(DOUBLE OFFSETJOINT)...BOOT BAND(DOUBLE OFFSETJOINT)
-
133HN-2512G-01-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
142HR-2512J-00-00 ...SNAP RING...SNAP RING
-
154KB-2512H-00-00 ...CIRCLIP...CIRCLIP
-
165KM-45531-10-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
171D9-F3501-02-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1893306-006Y2-00 ...BEARING...BEARING
-
1993106-38046-00 ...OIL SEAL...OIL SEAL
-
2093106-38047-00 ...OIL SEAL...OIL SEAL
-
2190387-30008-00 ...COLLAR...COLLAR
-
225FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2393410-32826-00 ...CIRCLIP...CIRCLIP
-
245ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
2590114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
2693210-27666-00 O-RINGO-RING
-
2790201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2890171-16001-00 NUT, CASTLENUT, CASTLE
-
2991401-30030-00 PIN, COTTERPIN, COTTER
-
301D9-F5180-20-00 WHEEL COMP.WHEEL COMP.
-
3194108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
3293900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
3390179-10540-00 NUTNUT
-
345GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
355ND-F518G-00-00 DRIVE SHAFT ASSY (RH)DRIVE SHAFT ASSY (RH)
-
365ND-F510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
375KM-2510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
385KM-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
395KM-2510J-10-00 ...DOUBLE OFF SET JOINT (RH)...DOUBLE OFF SET JOINT (RH)
-
403HN-2511G-01-00 ...CIRCLIP...CIRCLIP
-
414KB-2511H-00-00 ...BOOT BAND(DOUBLE OFFSETJOINT)...BOOT BAND(DOUBLE OFFSETJOINT)
-
423HN-2512G-01-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
432HR-2512J-00-00 ...SNAP RING...SNAP RING
-
444KB-2512H-00-00 ...CIRCLIP...CIRCLIP
-
4593450-22119-00 CIRCLIPCIRCLIP
-
461D9-F3502-02-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4793306-006Y2-00 ...BEARING...BEARING
-
4893106-38046-00 ...OIL SEAL...OIL SEAL
-
4993106-38047-00 ...OIL SEAL...OIL SEAL
-
5090387-30008-00 ...COLLAR...COLLAR
-
515FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
5293410-32826-00 ...CIRCLIP...CIRCLIP
-
535ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
5490114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
5593210-27666-00 O-RINGO-RING
-
5690201-168R1-00 WASHER, PLATEWASHER, PLATE
-
5790171-16001-00 NUT, CASTLENUT, CASTLE
-
5891401-30030-00 PIN, COTTERPIN, COTTER
-
591D9-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
609582P-06012-00 BOLT, FLANGEBOLT, FLANGE
