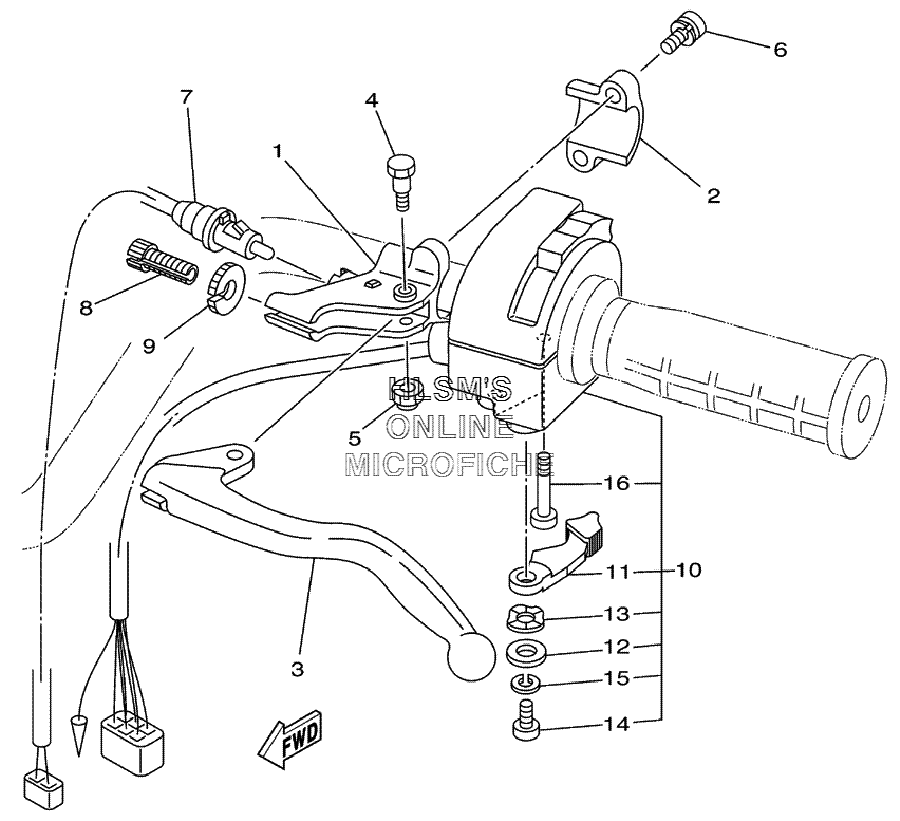

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha KODIAK 450 4WD HUNTER YFM45FAHV - 2006 года выпуска`
-
№АртикулНазвание
-
11YW-82911-02-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
490109-06799-00 BOLTBOLT
-
595607-06100-00 NUT, UNUT, U
-
697607-06120-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
75KM-82917-00-00 SWITCHSWITCH
-
890123-08046-00 BOLTBOLT
-
990179-08148-00 NUTNUT
-
105KM-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
115KM-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
121UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
133L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1498517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1592907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1698507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
