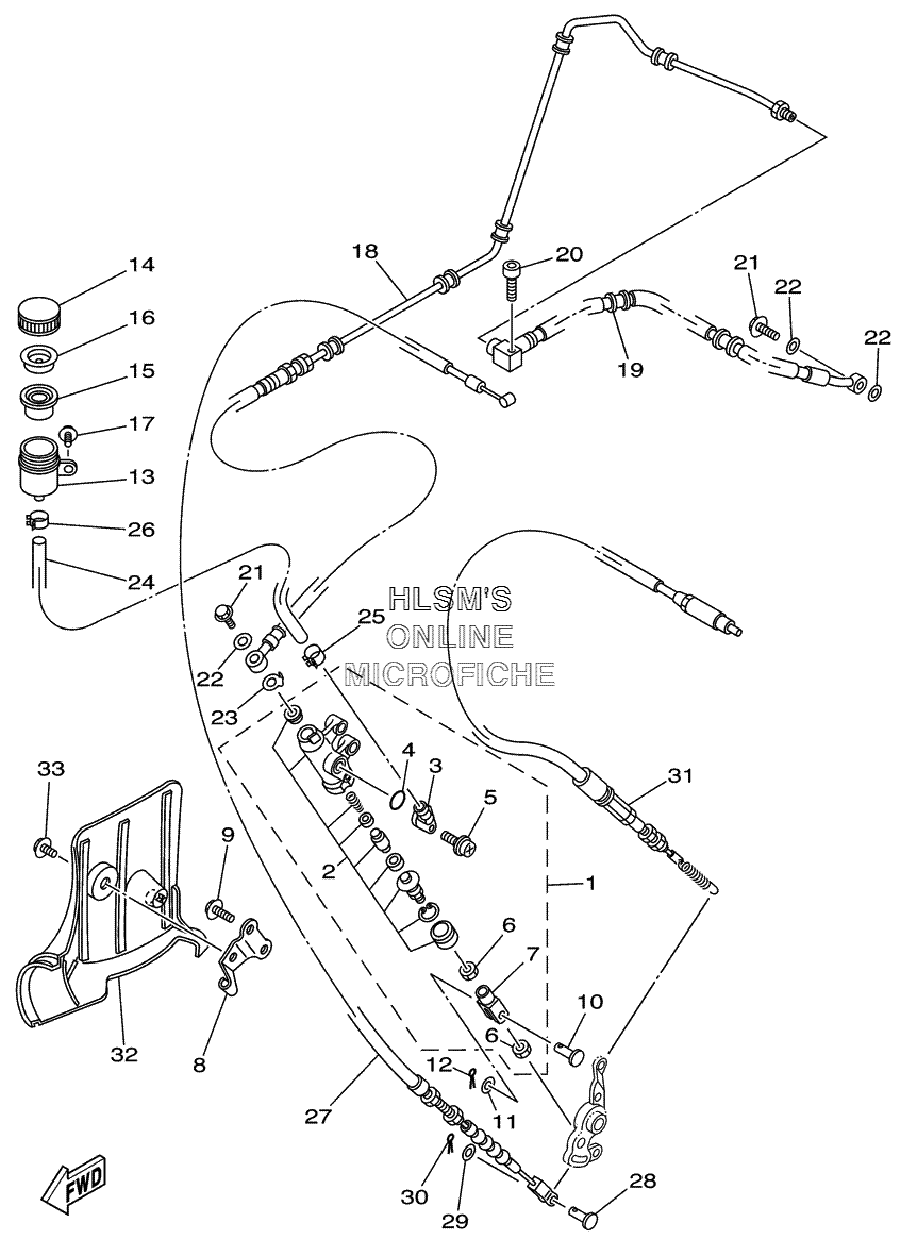

BRAKE - REAR MASTER CYLINDER для Yamaha KODIAK 400 4x4 YFM4FAHV - 2006 года выпуска`
-
№АртикулНазвание
-
15KM-2583V-00-00 RR. MASTER CYLINDER ASSY..RR. MASTER CYLINDER ASSY..
-
25KM-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
331A-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
53GM-2589H-00-00 ...SCREW...SCREW
-
64SS-27218-00-00 ...NUT...NUT
-
72YK-27222-00-00 ...JOINT...JOINT
-
85ND-F637G-00-00 HOLDER, WIREHOLDER, WIRE
-
995817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1090240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1190201-08083-00 WASHER, PLATEWASHER, PLATE
-
1291401-16012-00 PIN, COTTERPIN, COTTER
-
132VN-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
144PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
162VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1790105-06690-00 BOLT, FLANGEBOLT, FLANGE
-
181D9-F584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
191D9-F581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
2097017-06025-00 BOLTBOLT
-
2190401-10159-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
235GH-25844-00-00 WASHER, LOCKWASHER, LOCK
-
245ND-F5895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2590467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
2690467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
275GH-26341-01-00 CABLE, BRAKECABLE, BRAKE
-
2890240-06076-00 PIN, CLEVISPIN, CLEVIS
-
2990201-06042-00 WASHER, PLATEWASHER, PLATE
-
3091401-20012-00 PIN, COTTERPIN, COTTER
-
315GH-2637F-00-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
325ND-F7491-00-00 PROTECTORPROTECTOR
-
339582P-06012-00 BOLT, FLANGEBOLT, FLANGE
