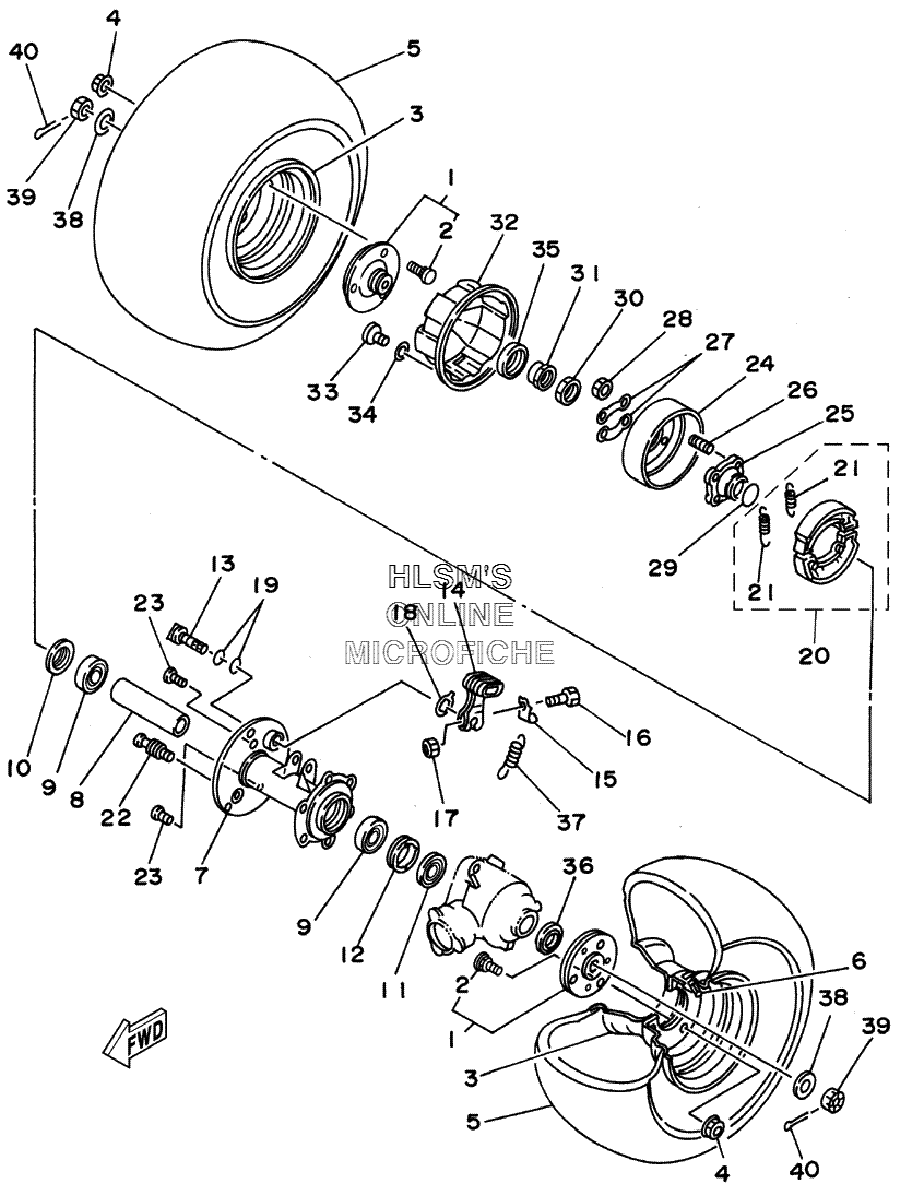

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 80 YFM80GHV - 2006 года выпуска`
-
№АртикулНазвание
-
155X-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
290109-08745-00 ...BOLT...BOLT
-
32FJ-25390-00-98 REAR WHEEL COMP. (LOW GLOSS BLACK)REAR WHEEL COMP. (LOW GLOSS BLACK)
-
495707-08500-00 NUT, FLANGENUT, FLANGE
-
594108-073Y8-00 TIRE (AT18X8-7**KT587T/L N) DUNLOPTIRE (AT18X8-7**KT587T/L N) DUNLOP
-
693900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
73GB-25311-00-33 HUB, REAR (BLACK)HUB, REAR (BLACK)
-
83GB-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
993306-00612-00 BEARINGBEARING
-
1093102-38383-00 OIL SEALOIL SEAL
-
1193102-36409-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
123GB-25382-00-00 NUT, AXLENUT, AXLE
-
133Y6-25351-00-00 CAMSHAFTCAMSHAFT
-
1455X-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1555X-2533H-00-00 HOOK, SPRINGHOOK, SPRING
-
1690101-06562-00 BOLTBOLT
-
1795307-06600-00 NUTNUT
-
1823F-2533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1993210-14104-00 O-RINGO-RING
-
203KG-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
2190506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
223GB-25326-00-00 PIN, PIVOTPIN, PIVOT
-
2390114-10005-00 BOLT, SERRATIONBOLT, SERRATION
-
243GB-2531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
253GB-25343-00-00 BOSSBOSS
-
2690116-08507-00 BOLT, STUDBOLT, STUD
-
27390-25412-01-00 WASHERWASHER
-
2895307-08600-00 NUTNUT
-
2993210-26606-00 O-RINGO-RING
-
3090170-28379-00 NUTNUT
-
3190179-28573-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
323GB-25715-00-00 COVER 1COVER 1
-
3398507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492907-06100-00 WASHER, SPRINGWASHER, SPRING
-
3593102-35349-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
363GB-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
3790507-15038-00 SPRING, TENSIONSPRING, TENSION
-
3890201-126A7-00 WASHER, PLATEWASHER, PLATE
-
3990171-12039-00 NUT, CASTLENUT, CASTLE
-
4091401-25025-00 PIN, COTTERPIN, COTTER
