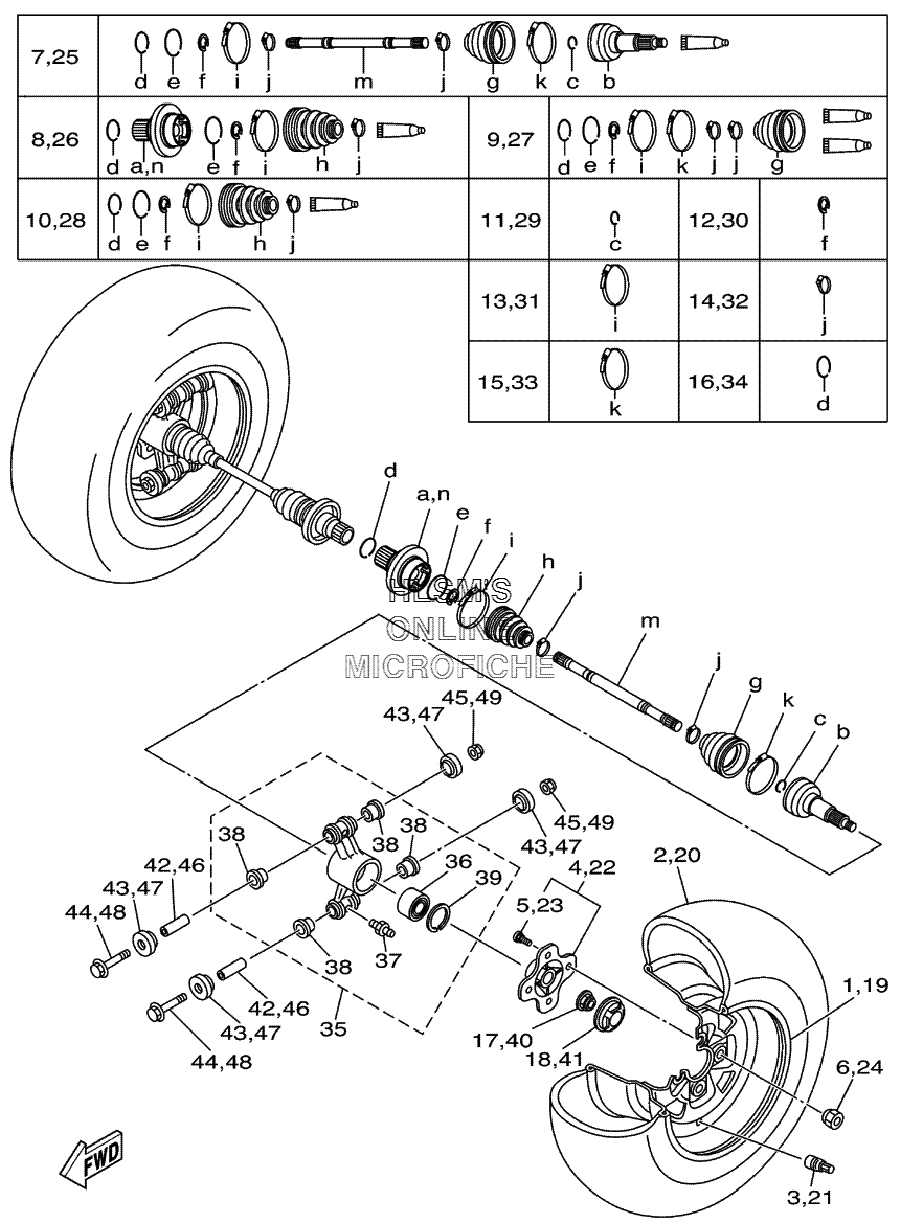

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 660 4x4 SE YFM66FASEV - 2006 года выпуска`
-
№АртикулНазвание
-
12C6-25390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12009-00 TIRE (AT 25X10-12** KT135 T/L) DUNLOPTIRE (AT 25X10-12** KT135 T/L) DUNLOP
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
45KM-25311-10-00 HUB, REARHUB, REAR
-
590114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690179-10016-00 NUTNUT
-
75KM-2530U-13-00 BALL JOINT SETBALL JOINT SET
-
85KM-2530W-11-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
95KM-2530X-12-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
105KM-2530Y-11-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
114KB-2512H-00-00 CIRCLIPCIRCLIP
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
143HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
153HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
165KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
1790179-20006-00 NUTNUT
-
182C6-2512A-00-00 CAP, WHEELCAP, WHEEL
-
192C6-25390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
2094110-12009-00 TIRE (AT 25X10-12** KT135 T/L) DUNLOPTIRE (AT 25X10-12** KT135 T/L) DUNLOP
-
2193900-00030-00 VALVE, RIMVALVE, RIM
-
225KM-25311-10-00 HUB, REARHUB, REAR
-
2390114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2490179-10016-00 NUTNUT
-
255KM-2530T-13-00 BALL JOINT SETBALL JOINT SET
-
265KM-2530V-11-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
275KM-2530X-12-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
285KM-2530Y-11-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
294KB-2512H-00-00 CIRCLIPCIRCLIP
-
302HR-2512J-00-00 SNAP RINGSNAP RING
-
314KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
323HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
333HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
345KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
355KM-2530F-10-00 REAR KNUCKLE ASSY.REAR KNUCKLE ASSY.
-
3693305-00601-00 ...BEARING...BEARING
-
3793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3890381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3999009-55500-00 ...CIRCLIP...CIRCLIP
-
4090179-20006-00 NUTNUT
-
412C6-2512A-00-00 CAP, WHEELCAP, WHEEL
-
425KM-23448-00-00 SPACERSPACER
-
432NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4490105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
465KM-23448-00-00 SPACERSPACER
-
472NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4890105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
