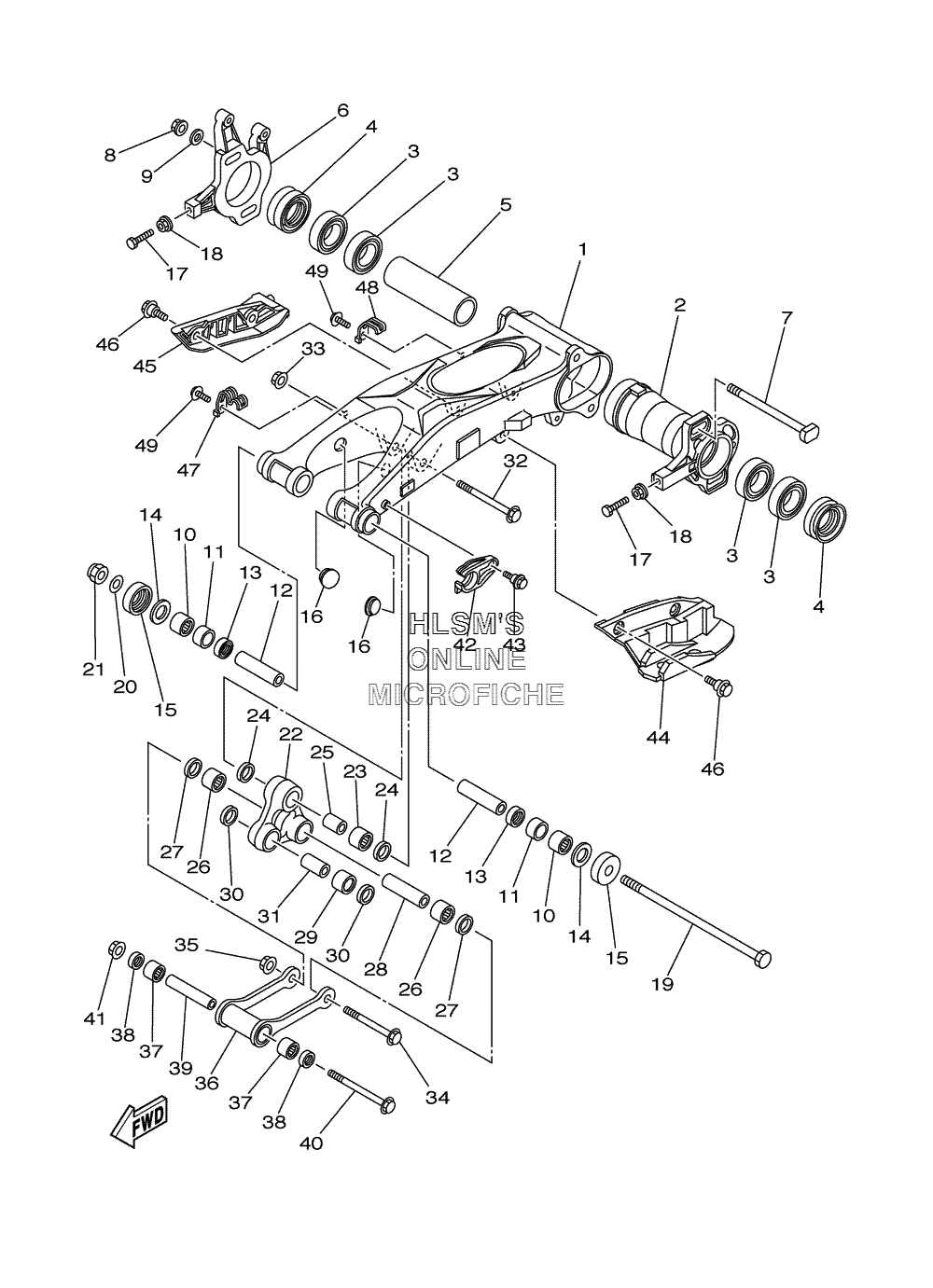

SUSPENSION - REAR ARM для Yamaha YFZ450 YFZ450T - 2005 года выпуска`
-
№АртикулНазвание
-
15TG-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
25TG-25311-00-00 HUB, REARHUB, REAR
-
393306-90803-00 BEARINGBEARING
-
493106-46001-00 OIL SEALOIL SEAL
-
55TG-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
65TG-25721-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
790109-12002-00 BOLTBOLT
-
890179-12588-00 NUTNUT
-
990201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1093317-22237-00 BEARING, CYL.#17BEARING, CYL.#17
-
1190380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1290387-160W0-00 COLLARCOLLAR
-
1393106-22019-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
143YF-22149-00-00 WASHERWASHER
-
154X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1690338-23004-00 PLUGPLUG
-
1790101-08777-00 BOLTBOLT
-
1890179-08299-00 NUTNUT
-
195LP-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2090201-160F6-00 WASHER, PLATEWASHER, PLATE
-
2190185-16127-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
225TG-2217A-00-00 ARM, RELAYARM, RELAY
-
2393315-32057-00 BEARING, CYL.#15BEARING, CYL.#15
-
2493109-20076-00 OIL SEALOIL SEAL
-
2590387-123M3-00 COLLARCOLLAR
-
2693315-31758-00 BEARINGBEARING
-
2793109-17071-00 OIL SEALOIL SEAL
-
2890387-12018-00 COLLARCOLLAR
-
2993315-32052-00 BEARINGBEARING
-
3093109-20076-00 OIL SEALOIL SEAL
-
3190387-12020-00 COLLARCOLLAR
-
3290105-12025-00 BOLT, FLANGEBOLT, FLANGE
-
3390185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490105-12024-00 BOLT, FLANGEBOLT, FLANGE
-
3590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
365TG-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
3793315-31758-00 BEARINGBEARING
-
3893109-17071-00 OIL SEALOIL SEAL
-
3990387-12019-00 COLLARCOLLAR
-
4090105-12022-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425TG-22151-00-00 SEAL, GUARDSEAL, GUARD
-
4390109-063F1-00 BOLTBOLT
-
445TG-22360-00-00 GUARD SUB ASSY.GUARD SUB ASSY.
-
455TG-22362-00-00 GUARD 2GUARD 2
-
4690109-065G5-00 BOLTBOLT
-
475TG-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
485TG-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4995027-06012-00 BOLT, FLANGEBOLT, FLANGE
