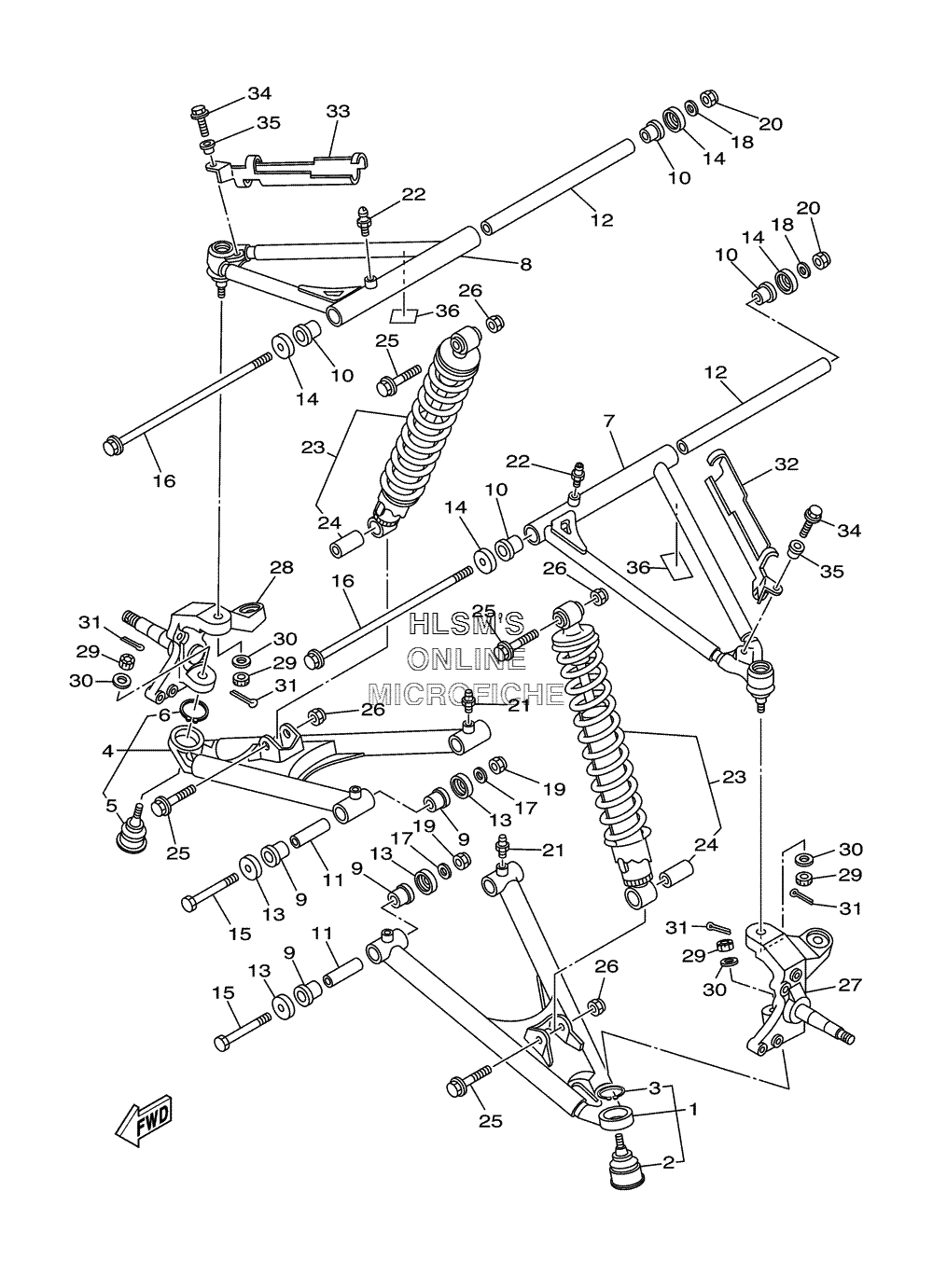

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска`
-
№АртикулНазвание
-
15LP-23570-30-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
45LP-23580-30-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
55LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
699009-30400-00 ...CIRCLIP...CIRCLIP
-
75LP-23540-40-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
85LP-23550-40-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
990381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1190387-101R3-00 COLLARCOLLAR
-
1290387-10002-00 COLLARCOLLAR
-
131UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
141UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1590105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1690105-10407-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790201-10430-00 WASHER, PLATEWASHER, PLATE
-
1890201-10430-00 WASHER, PLATEWASHER, PLATE
-
1990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
235LP-23350-01-00 SHOCK ABSORBER ASSY. (WW FOR DPBSE)SHOCK ABSORBER ASSY. (WW FOR DPBSE)
-
235LP-23350-41-00 SHOCK ABSORBER ASSY. (SL FOR BWS1)SHOCK ABSORBER ASSY. (SL FOR BWS1)
-
243GG-23372-00-00 ...BUSH 2...BUSH 2
-
2590105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
2690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
275LP-23501-00-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
285LP-23502-00-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
2990171-10046-00 NUT, CASTLENUT, CASTLE
-
3090209-10229-00 WASHERWASHER
-
3191401-20020-00 PIN, COTTERPIN, COTTER
-
325LP-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
335LP-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3495027-06016-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
3590387-081R2-00 COLLARCOLLAR
-
363SP-21732-00-00 SEAL 1SEAL 1
