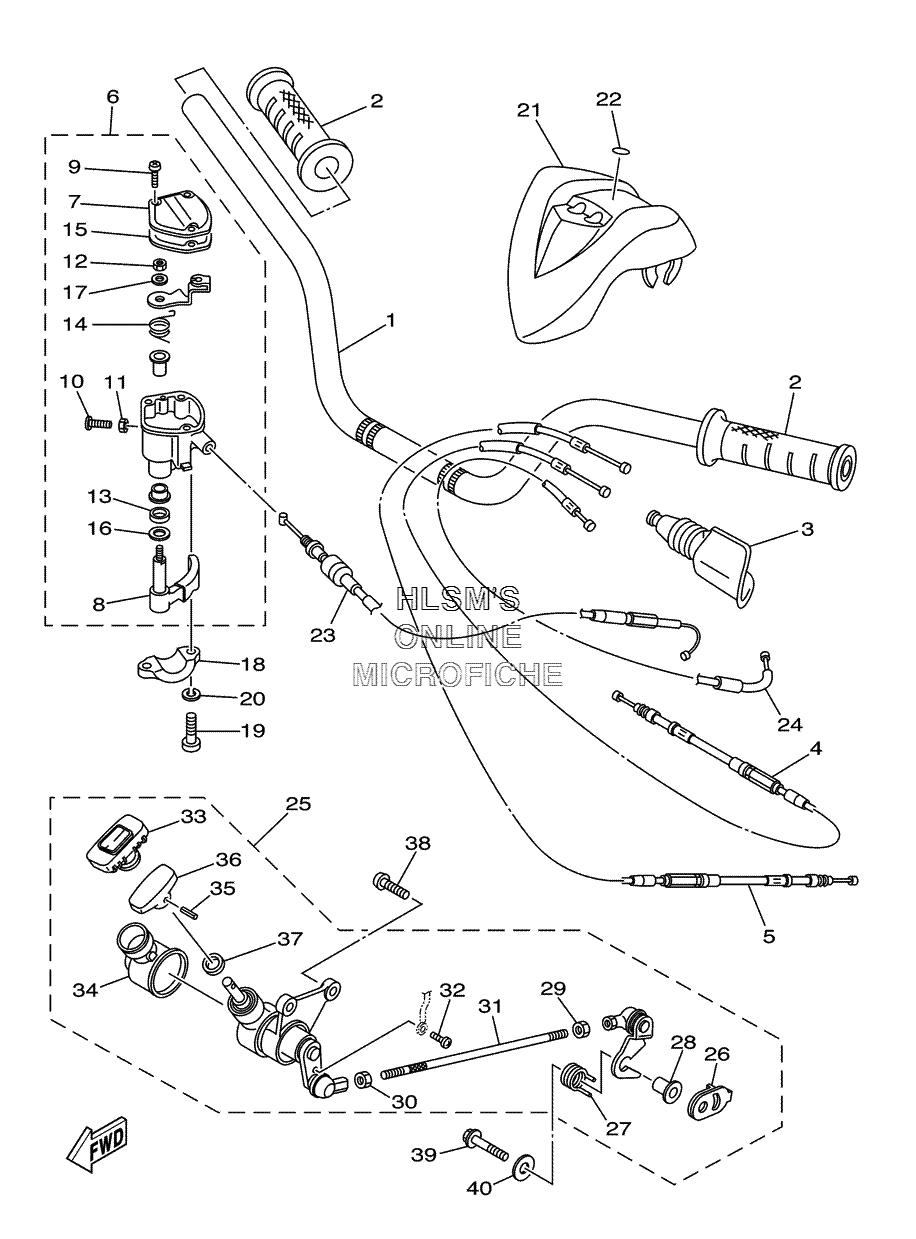

HANDLEBAR W/ CABLES для Yamaha RAPTOR 350 SE YFM350RSET - 2005 года выпуска`
-
№АртикулНазвание
-
15YT-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
331A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
45YT-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
55YT-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
64KB-26250-00-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
74KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
81NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
990149-04278-00 ...SCREW...SCREW
-
1098507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1195607-05100-00 ...NUT, U...NUT, U
-
1295307-05700-00 ...NUT...NUT
-
1393104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
141NV-26304-00-00 ...SPRING...SPRING
-
154KB-2628G-00-00 ...GASKET...GASKET
-
161NV-26129-00-00 ...WASHER...WASHER
-
171NV-26398-00-00 ...WASHER...WASHER
-
184V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
215YT-26124-30-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
225GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
235YT-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
245YT-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
255YT-26150-00-00 REV. LEVER ASSY..REV. LEVER ASSY..
-
264SH-18198-00-00 ...LEVER...LEVER
-
2790508-35764-00 ...SPRING, TORSION...SPRING, TORSION
-
2890387-063W7-00 ...COLLAR...COLLAR
-
2995317-06700-00 ...NUT...NUT
-
3090170-06289-00 ...NUT...NUT
-
313GD-26166-10-00 ...ROD, JOINT...ROD, JOINT
-
3298507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
331UY-26153-00-00 ...GRIP, LEVER...GRIP, LEVER
-
341UY-26372-00-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
3591609-40016-00 ...PIN, SPRING...PIN, SPRING
-
361UY-26157-00-00 ...LEVER, LOCK...LEVER, LOCK
-
3793109-08050-00 ...OIL SEAL, SDO-TYPE...OIL SEAL, SDO-TYPE
-
3892017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3995817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-06008-00 WASHER, PLATEWASHER, PLATE
