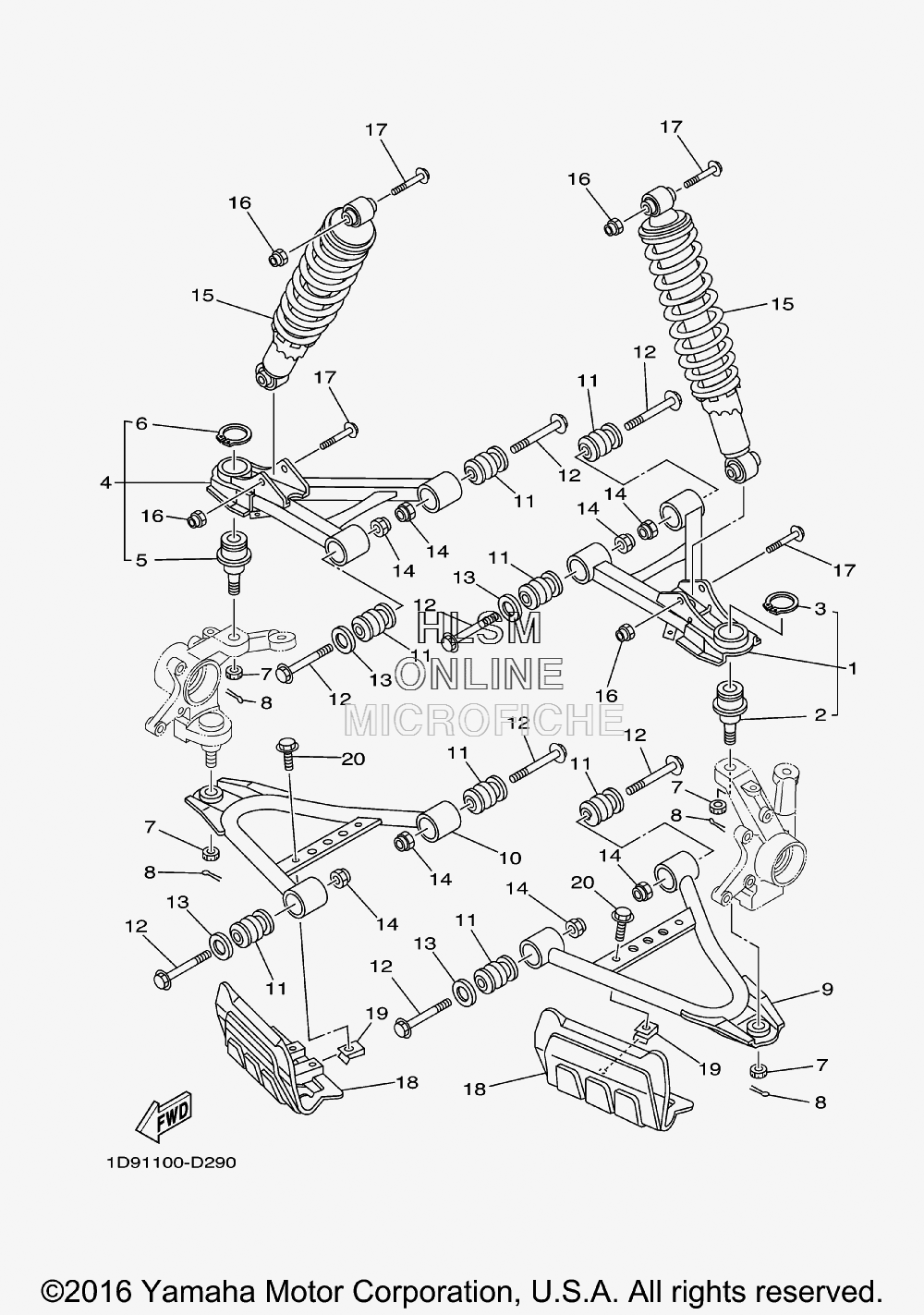

SUSPENSION - FRONT WHEEL для Yamaha KODIAK 450 4WD BLACK/CARBON - 2005 года выпуска`
-
№АртикулНазвание
-
15ND-F3540-11-00 FRONT UPPER ARM COMP. (LEFT) (YMUS)FRONT UPPER ARM COMP. (LEFT) (YMUS)
-
25FU-F3549-00-00 ...BALL JOINT 1 (YMUS)...BALL JOINT 1 (YMUS)
-
393410-32826-00 ...CIRCLIP...CIRCLIP
-
45ND-F3550-11-00 FRONT UPPER ARM COMP. (RIGHT) (YMUS)FRONT UPPER ARM COMP. (RIGHT) (YMUS)
-
55FU-F3549-00-00 ...BALL JOINT 1 (YMUS)...BALL JOINT 1 (YMUS)
-
693410-32826-00 ...CIRCLIP...CIRCLIP
-
790171-12816-00 NUT, CASTLE (YMUS)NUT, CASTLE (YMUS)
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
91D9-F357A-00-00 ARM,FR. LWR. LH. (YMUS)ARM,FR. LWR. LH. (YMUS)
-
101D9-F358A-00-00 ARM,FR. LWR. RH. (YMUS)ARM,FR. LWR. RH. (YMUS)
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
135KM-22149-00-00 WASHERWASHER
-
1490185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
-
151D9-F3350-10-00 SHOCK ABSORBER ASSY (YMUS)SHOCK ABSORBER ASSY (YMUS)
-
1690185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
-
1790105-108B1-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
185ND-F3123-00-00 COVER, LOWER 1 (YMUS)COVER, LOWER 1 (YMUS)
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
