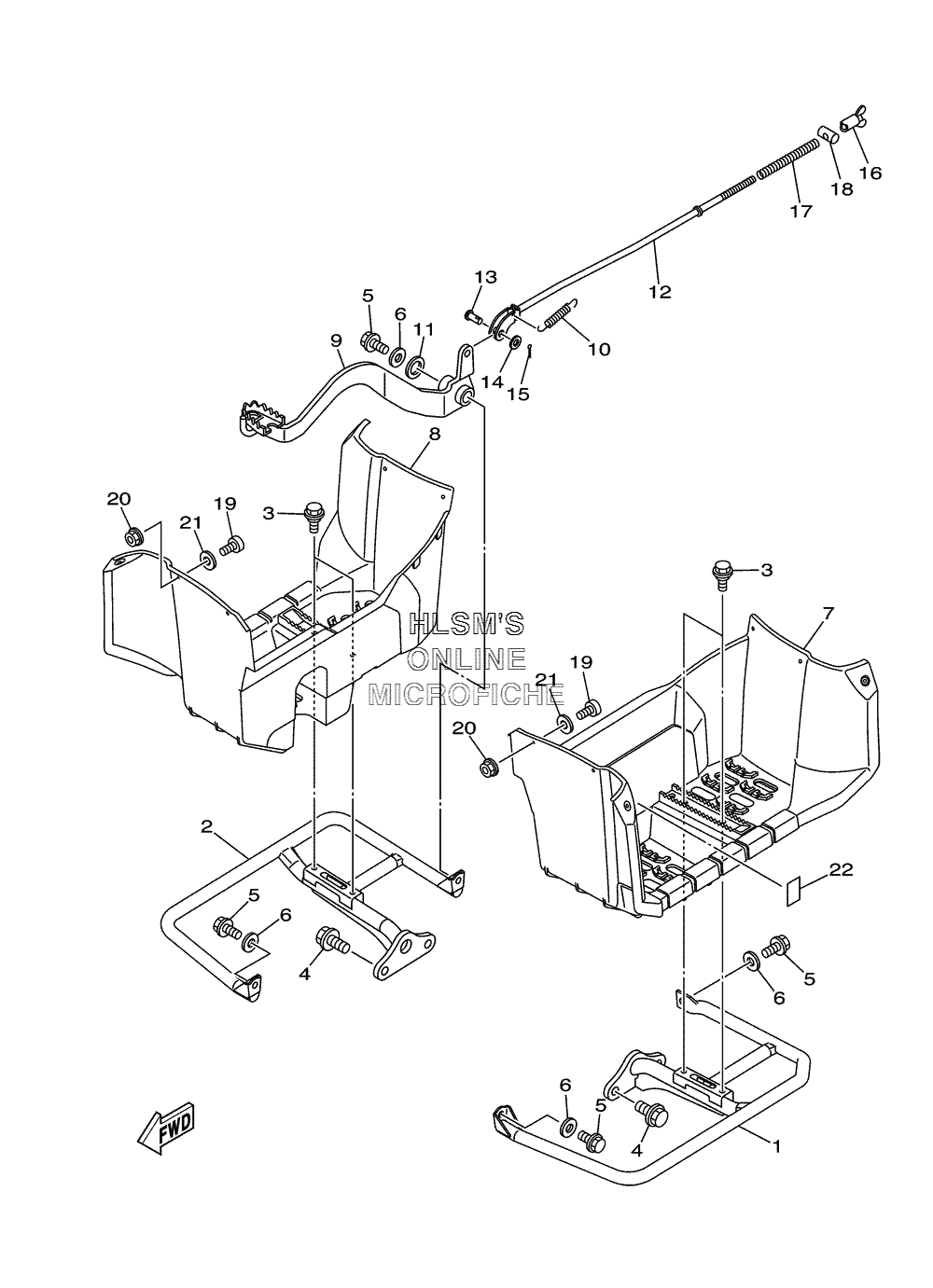

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 80 YFM80GT - 2005 года выпуска`
-
№АртикулНазвание
-
12D3-27411-00-00 FOOTREST 1FOOTREST 1
-
22D3-27421-00-00 FOOTREST 2FOOTREST 2
-
390109-063F1-00 BOLTBOLT
-
495817-12020-00 BOLT, FLANGEBOLT, FLANGE
-
595027-08014-00 BOLT, FLANGEBOLT, FLANGE
-
690201-086P8-00 WASHER, PLATEWASHER, PLATE
-
72D3-27453-00-00 COVER 1COVER 1
-
82D3-27463-00-00 COVER 2COVER 2
-
92D3-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1090506-16318-00 SPRING, TENSIONSPRING, TENSION
-
1190201-15797-00 WASHER, PLATEWASHER, PLATE
-
123GB-27231-00-00 ROD, BRAKEROD, BRAKE
-
1390240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1492907-06200-00 WASHERWASHER
-
1591401-20012-00 PIN, COTTERPIN, COTTER
-
1620E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1790501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890249-12008-00 PINPIN
-
1998907-05016-00 SCREW, BINDSCREW, BIND
-
2095707-05300-00 NUT, FLANGENUT, FLANGE
-
2190201-05029-00 WASHER, PLATEWASHER, PLATE
-
224EM-15443-01-00 EMBLEMEMBLEM
