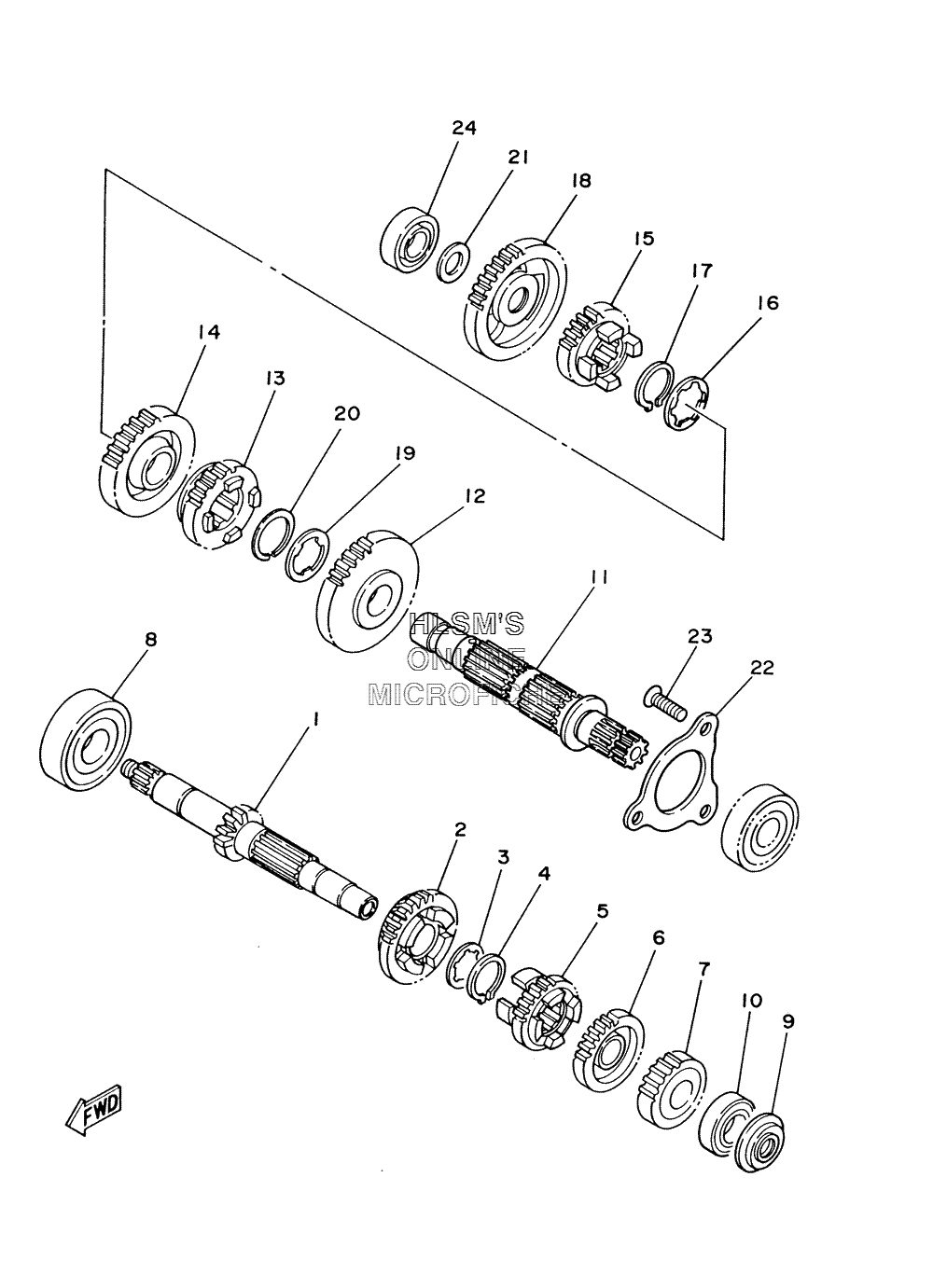

TRANSMISSION для Yamaha BRUIN 250 YFM250BT - 2005 года выпуска
-
№АртикулНазвание
-
15XG-E7401-00-00 MAIN AXLE ASSY.MAIN AXLE ASSY.
-
224W-17151-02-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
390209-17285-00 WASHERWASHER
-
493410-20038-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
55XG-E7131-00-00 GEAR, 3RD PINION (22T)GEAR, 3RD PINION (22T)
-
65XG-E7141-00-00 GEAR, 4TH PINION (25T)GEAR, 4TH PINION (25T)
-
75XG-E7121-00-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
893306-204Y6-00 BEARINGBEARING
-
993101-15101-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1093306-202X2-00 BEARINGBEARING
-
115XG-E7402-00-00 DRIVE AXLE ASSY.DRIVE AXLE ASSY.
-
125XG-E7221-00-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
131P0-E7241-00-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
145XG-E7231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
154BD-17251-00-00 GEAR, 5TH WHEEL (23T)GEAR, 5TH WHEEL (23T)
-
1690209-18208-00 WASHERWASHER
-
1793410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
185XG-E7211-00-00 GEAR, 1ST WHEEL (34T)GEAR, 1ST WHEEL (34T)
-
1990209-23241-00 WASHERWASHER
-
2093410-26067-00 CIRCLIPCIRCLIP
-
2190201-15700-00 WASHER, PLATEWASHER, PLATE
-
225XG-E7558-00-00 PLATE, BEARINGPLATE, BEARING
-
2390149-08152-00 SCREWSCREW
-
2493306-202X2-00 BEARINGBEARING
