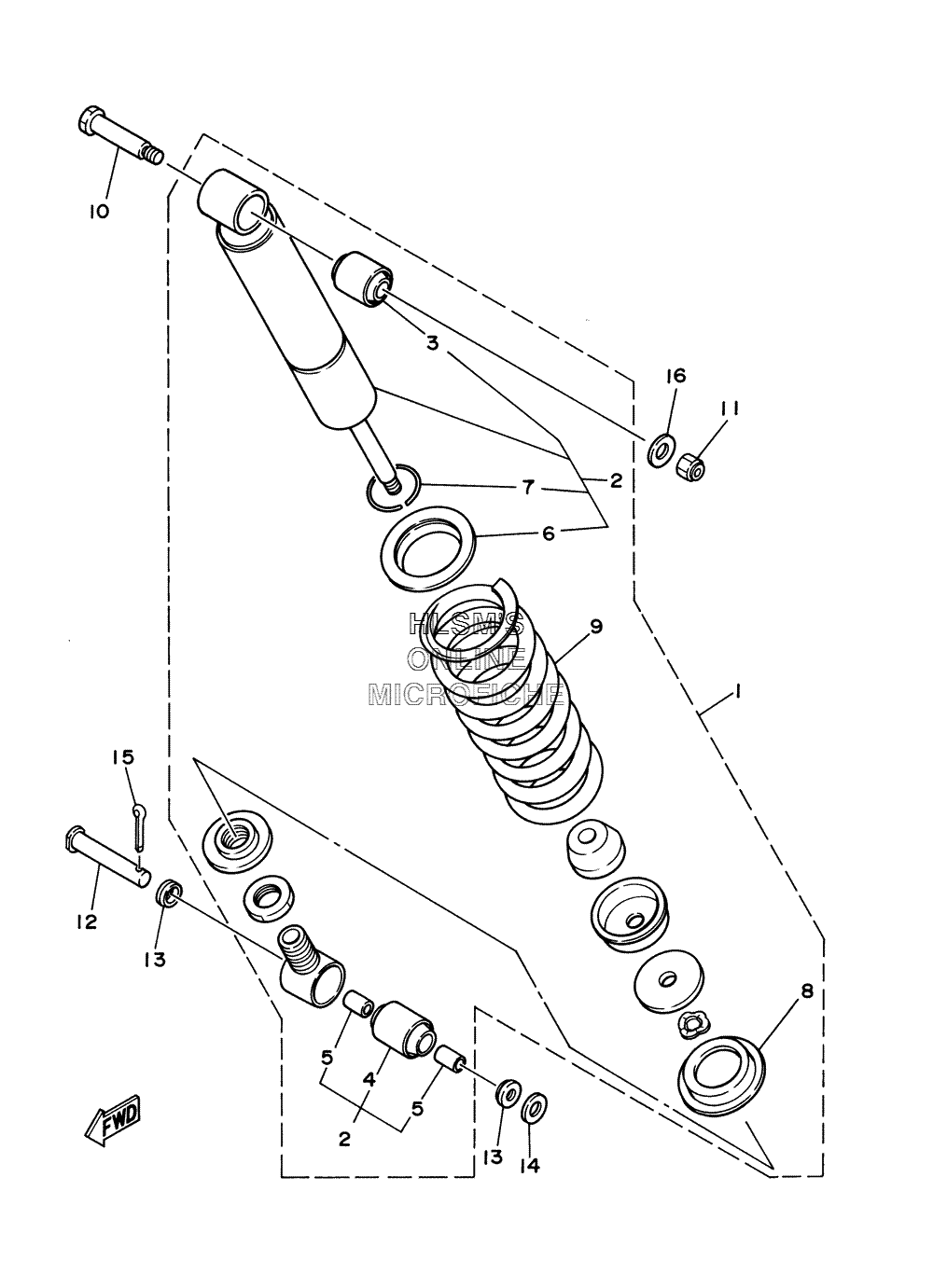

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BLASTER 200 YFS200T - 2005 года выпуска`
-
№АртикулНазвание
-
12XJ-22210-10-36 SHOCK ABSORBER ASSY., REAR (WW FOR DPBSE)SHOCK ABSORBER ASSY., REAR (WW FOR DPBSE)
-
12XJ-22210-10-35 SHOCK ABSORBER ASSY., REAR (SL FOR BWS1)SHOCK ABSORBER ASSY., REAR (SL FOR BWS1)
-
22XJ-22201-10-00 ...DAMPER SUB ASSY....DAMPER SUB ASSY.
-
31NU-22216-00-00 ......BUSH, REAR SHOCK ABSORBER......BUSH, REAR SHOCK ABSORBER
-
41NU-22226-00-00 ......BUSH, SHOCK ABSORBER LOWER......BUSH, SHOCK ABSORBER LOWER
-
590380-12051-00 ......BUSH, SOLID......BUSH, SOLID
-
622W-22223-00-00 ......SEAT, SPRING LOWER......SEAT, SPRING LOWER
-
793440-42101-00 ......CIRCLIP, OUTER......CIRCLIP, OUTER
-
822W-22214-01-00 ...GUIDE, SPRING 1...GUIDE, SPRING 1
-
92XJ-22212-00-36 ...SPRING (WW FOR DPBSE)...SPRING (WW FOR DPBSE)
-
92XJ-22212-00-35 ...SPRING (SL FOR BWS1)...SPRING (SL FOR BWS1)
-
1090109-10736-00 BOLTBOLT
-
1195607-10100-00 NUT, UNUT, U
-
1290240-12092-00 PIN, CLEVISPIN, CLEVIS
-
131W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1492907-12600-00 WASHER, PLATEWASHER, PLATE
-
1591401-30025-00 PIN,COTTERPIN,COTTER
-
1690201-10126-00 WASHER, PLATEWASHER, PLATE
