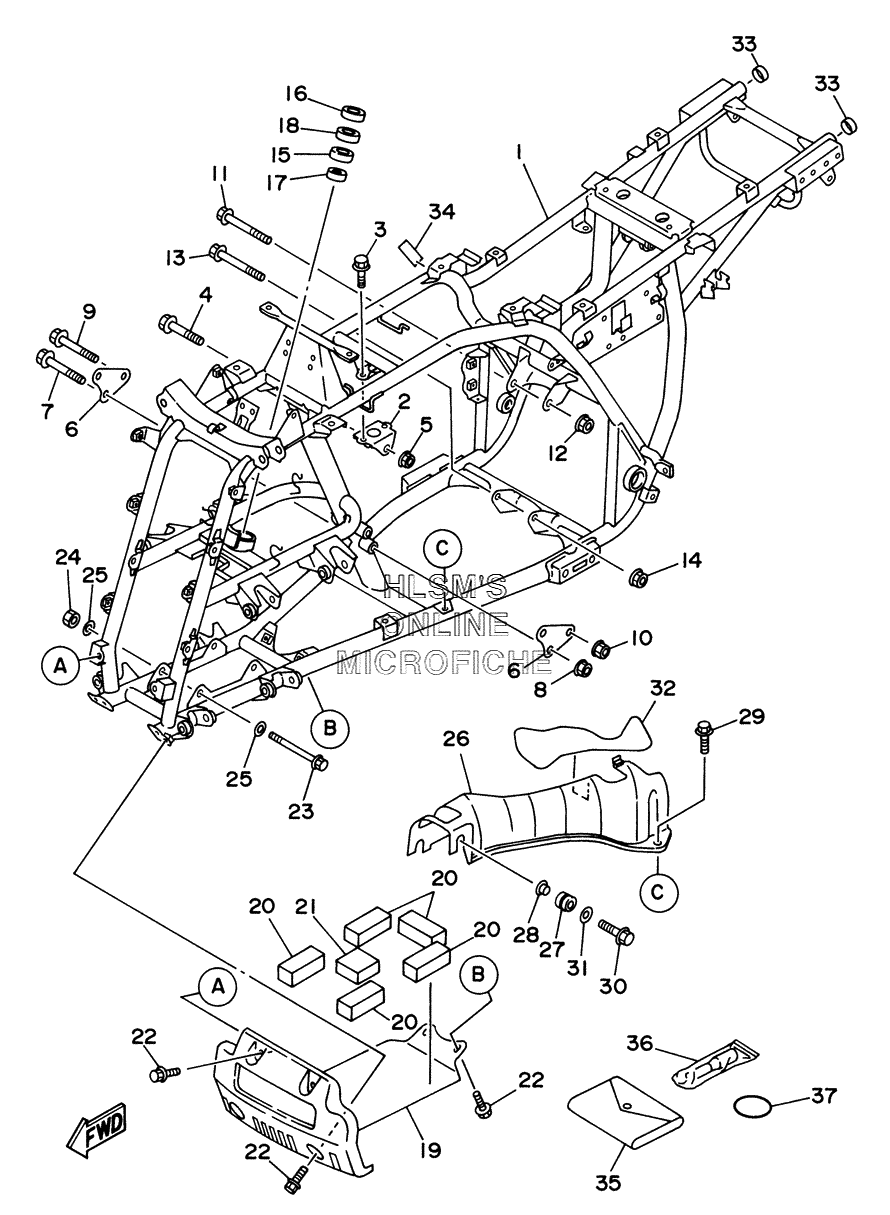

FRAME для Yamaha WOLVERINE 4X4 YFM350FXS - 2004 года выпуска
-
№АртикулНазвание
-
14KB-21110-40-33 FRAME COMP. (YB - YAMAHA BLACK)FRAME COMP. (YB - YAMAHA BLACK)
-
22HR-21315-02-00 STAY, ENGINE 2STAY, ENGINE 2
-
395817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
495817-08055-00 BOLT, FLANGEBOLT, FLANGE
-
595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
64KB-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
795817-08085-00 BOLT, FLANGEBOLT, FLANGE
-
895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990105-10454-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190105-10747-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390105-10747-00 BOLT, FLANGEBOLT, FLANGE
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1593306-20331-00 BEARINGBEARING
-
1693102-25081-00 OIL SEALOIL SEAL
-
1793102-25099-00 OIL SEALOIL SEAL
-
182GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
194KB-2147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
2041R-21717-00-00 DAMPERDAMPER
-
214KB-21486-00-00 DAMPER 2DAMPER 2
-
2295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2390105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
264KB-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
2790480-15058-00 GROMMETGROMMET
-
2890387-06024-00 COLLARCOLLAR
-
2990119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090105-06738-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-06380-00 WASHER, PLATEWASHER, PLATE
-
324KB-2117G-01-00 PROTECTORPROTECTOR
-
3390336-22056-00 PLUG, TAPERPLUG, TAPER
-
344KB-21268-00-00 SEALSEAL
-
354WV-28100-00-00 TOOL KITTOOL KIT
-
361NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
3793210-41041-00 O-RINGO-RING
