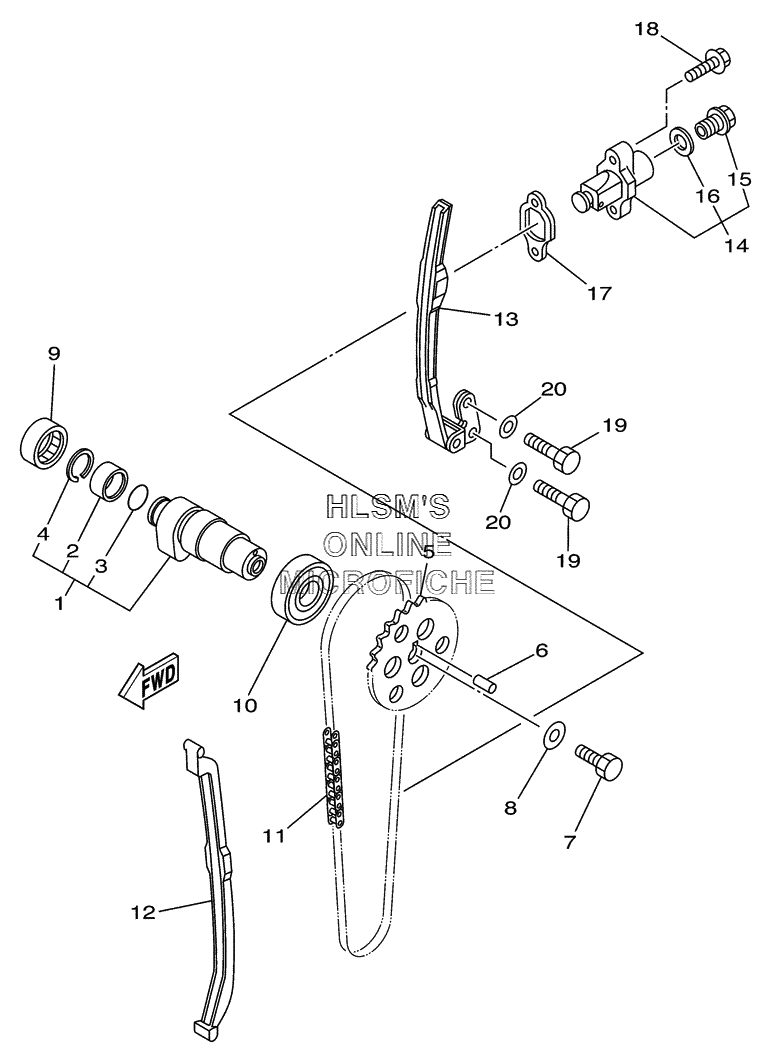

CAMSHAFT W/ CHAIN для Yamaha RAPTOR YFM350S - 2004 года выпуска`
-
№АртикулНазвание
-
15UH-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
290387-20013-00 ...COLLAR...COLLAR
-
393210-17003-00 ...O-RING...O-RING
-
493410-20038-00 ...CIRCLIP...CIRCLIP
-
55YT-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
693604-10011-00 PIN, DOWELPIN, DOWEL
-
790101-10303-00 BOLTBOLT
-
890201-10591-00 WASHER, PLATEWASHER, PLATE
-
993315-32516-00 BEARINGBEARING
-
1093306-00502-00 BEARING (B6005)BEARING (B6005)
-
1194500-02090-00 CHAIN (BF05M 90L)CHAIN (BF05M 90L)
-
123Y1-12231-01-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
131UY-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1431G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1531G-12222-00-00 ...PLUG...PLUG
-
1631G-12214-00-00 ...GASKET...GASKET
-
173GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1895027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1997027-06016-00 BOLTBOLT
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
