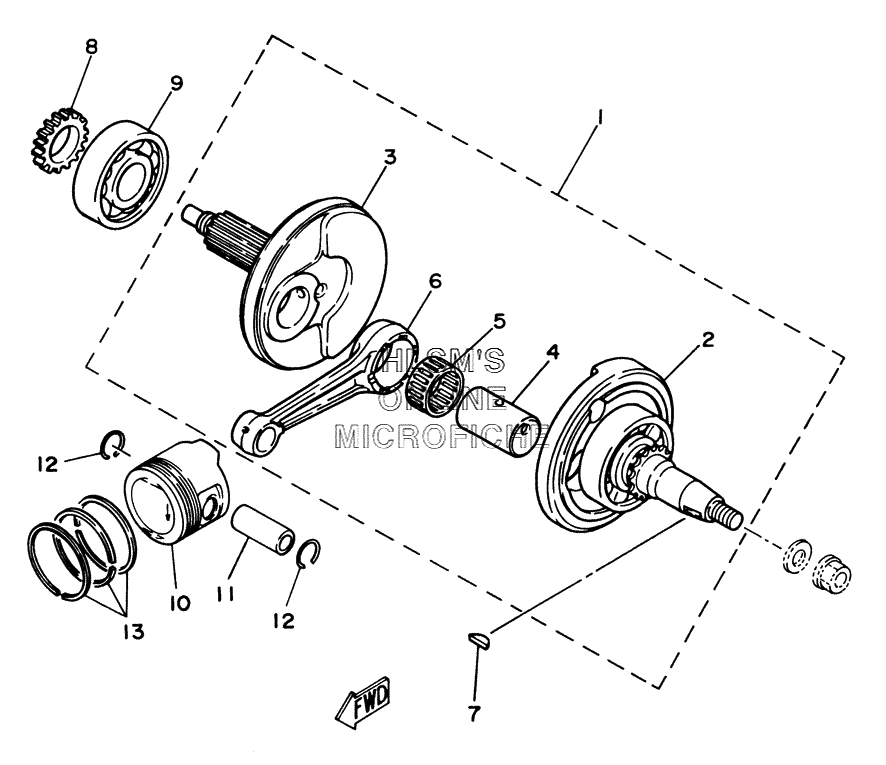

CRANKSHAFT - PISTON для Yamaha RAPTOR 80 YFM80WS - 2004 года выпуска`
-
№АртикулНазвание
-
122K-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
222K-W1141-00-00 ...CRANK 1...CRANK 1
-
322K-11422-00-00 ...CRANK 2...CRANK 2
-
422F-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593311-32353-00 ...BEARING...BEARING
-
622K-11651-02-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
846J-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
993306-30433-00 BEARINGBEARING
-
1055X-11631-00-96 PISTON (STD)PISTON (STD)
-
1055X-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
1055X-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
1122K-11633-01-00 PIN, PISTONPIN, PISTON
-
1293450-14088-00 CIRCLIPCIRCLIP
-
1355X-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1355X-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
1355X-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
