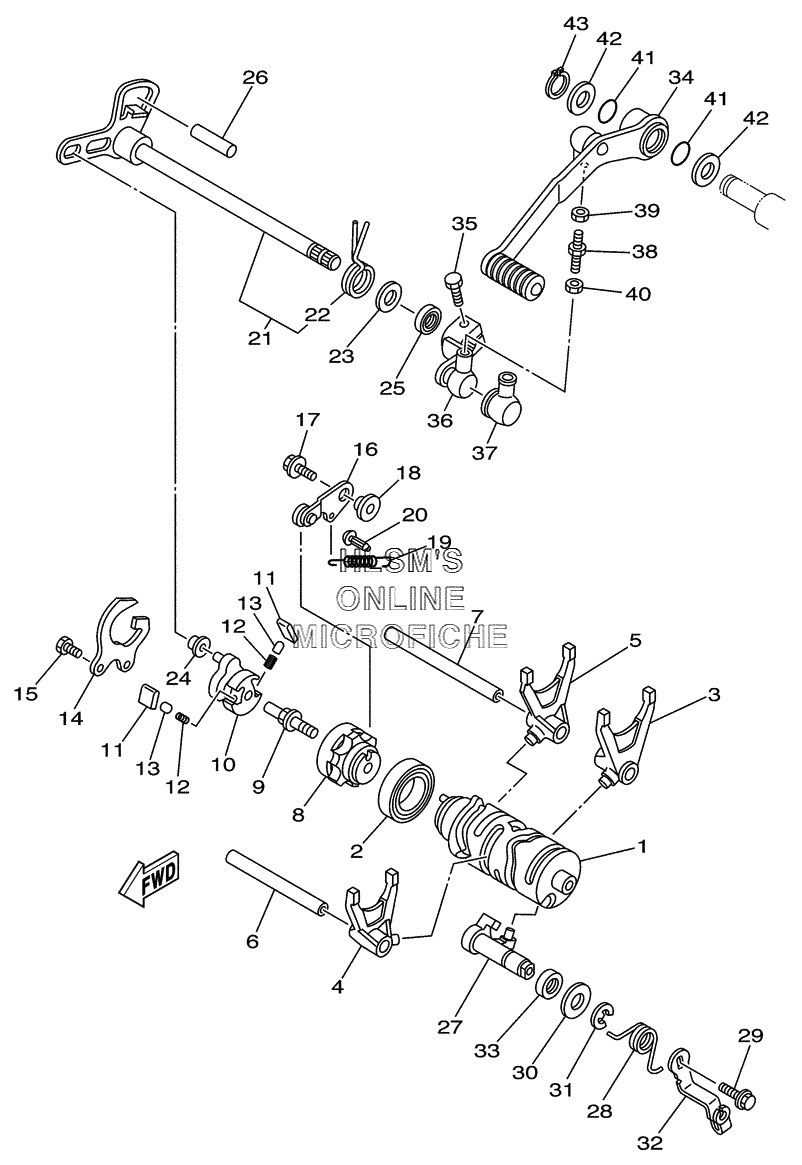

SHIFT CAM W/ FORK для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90501-00 BEARINGBEARING
-
35LP-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
45LP-18512-10-00 FORK, SHIFT 2FORK, SHIFT 2
-
55LP-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
63GX-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
74TR-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
84EW-18185-00-00 SEGMENTSEGMENT
-
93XJ-18173-00-00 PIN, SHIFTPIN, SHIFT
-
105LP-18122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
113XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
1290501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
145LP-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
1590101-06664-00 BOLTBOLT
-
165LP-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
1790159-06078-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
184NX-18175-00-00 SPACERSPACER
-
1990506-14005-00 SPRING, TENSIONSPRING, TENSION
-
20132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
215LP-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
2290508-35007-00 ...SPRING, TORSION...SPRING, TORSION
-
2390201-12474-00 WASHER, PLATEWASHER, PLATE
-
243XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
2693608-33046-00 PIN, DOWELPIN, DOWEL
-
275LP-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
285LP-18337-00-00 SPRINGSPRING
-
2995817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-12575-00 WASHER, PLATEWASHER, PLATE
-
3199001-10600-00 CIRCLIPCIRCLIP
-
325LP-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3393102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
345LP-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
3597027-06020-00 BOLTBOLT
-
365LP-18112-00-00 ARM, SHIFTARM, SHIFT
-
372H9-18154-00-00 COVER, DUSTCOVER, DUST
-
382KW-18115-00-00 ROD, SHIFTROD, SHIFT
-
3990170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
4095304-06700-00 NUTNUT
-
4193210-15414-00 O-RINGO-RING
-
4290201-15797-00 WASHER, PLATEWASHER, PLATE
-
4393430-12008-00 CIRCLIPCIRCLIP
