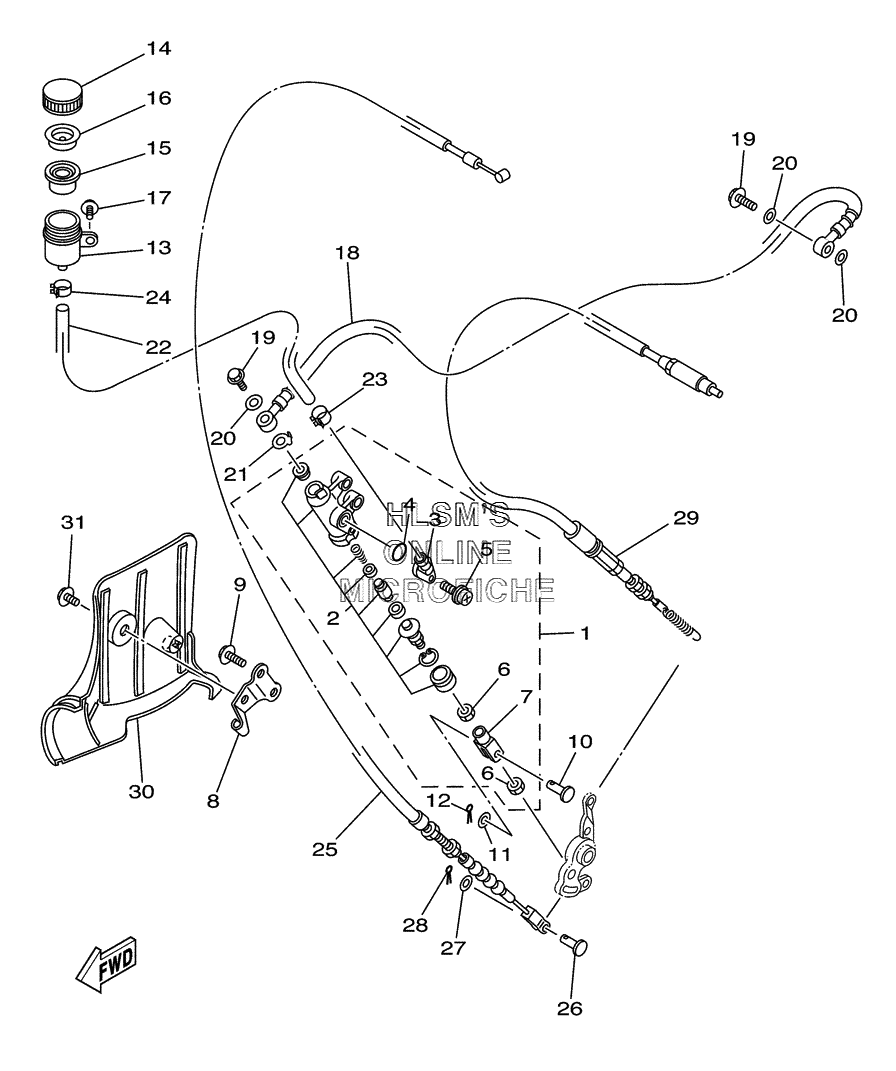

BRAKE - REAR MASTER CYLINDER для Yamaha KODIAK 450 AUTO 4X4 - 2004 года выпуска`
-
№АртикулНазвание
-
15KM-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25KM-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
331A-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
53GM-2589H-00-00 ...SCREW...SCREW
-
64SS-27218-00-00 ...NUT...NUT
-
72YK-27222-00-00 ...JOINT...JOINT
-
85ND-F637G-00-00 HOLDER, WIRE (YMUS)HOLDER, WIRE (YMUS)
-
995817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1090240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1190201-08083-00 WASHER, PLATEWASHER, PLATE
-
1291401-16012-00 PIN, COTTERPIN, COTTER
-
132VN-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
144PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
162VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
1790105-06690-00 BOLT, FLANGEBOLT, FLANGE
-
185ND-F5874-00-00 HOSE, BRAKE (YMUS)HOSE, BRAKE (YMUS)
-
1990401-10159-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
215GH-25844-00-00 WASHER, LOCKWASHER, LOCK
-
225ND-F5895-00-00 HOSE, RESERVOIR (YMUS)HOSE, RESERVOIR (YMUS)
-
2390467-14057-00 CLIPCLIP
-
2490467-11044-00 CLIPCLIP
-
255GH-26341-01-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2690240-06076-00 PIN, CLEVISPIN, CLEVIS
-
2790201-06042-00 WASHER, PLATEWASHER, PLATE
-
2891401-20012-00 PIN, COTTERPIN, COTTER
-
295GH-2637F-00-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
305ND-F7491-00-00 PROTECTOR (YMUS)PROTECTOR (YMUS)
-
319582P-06012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
