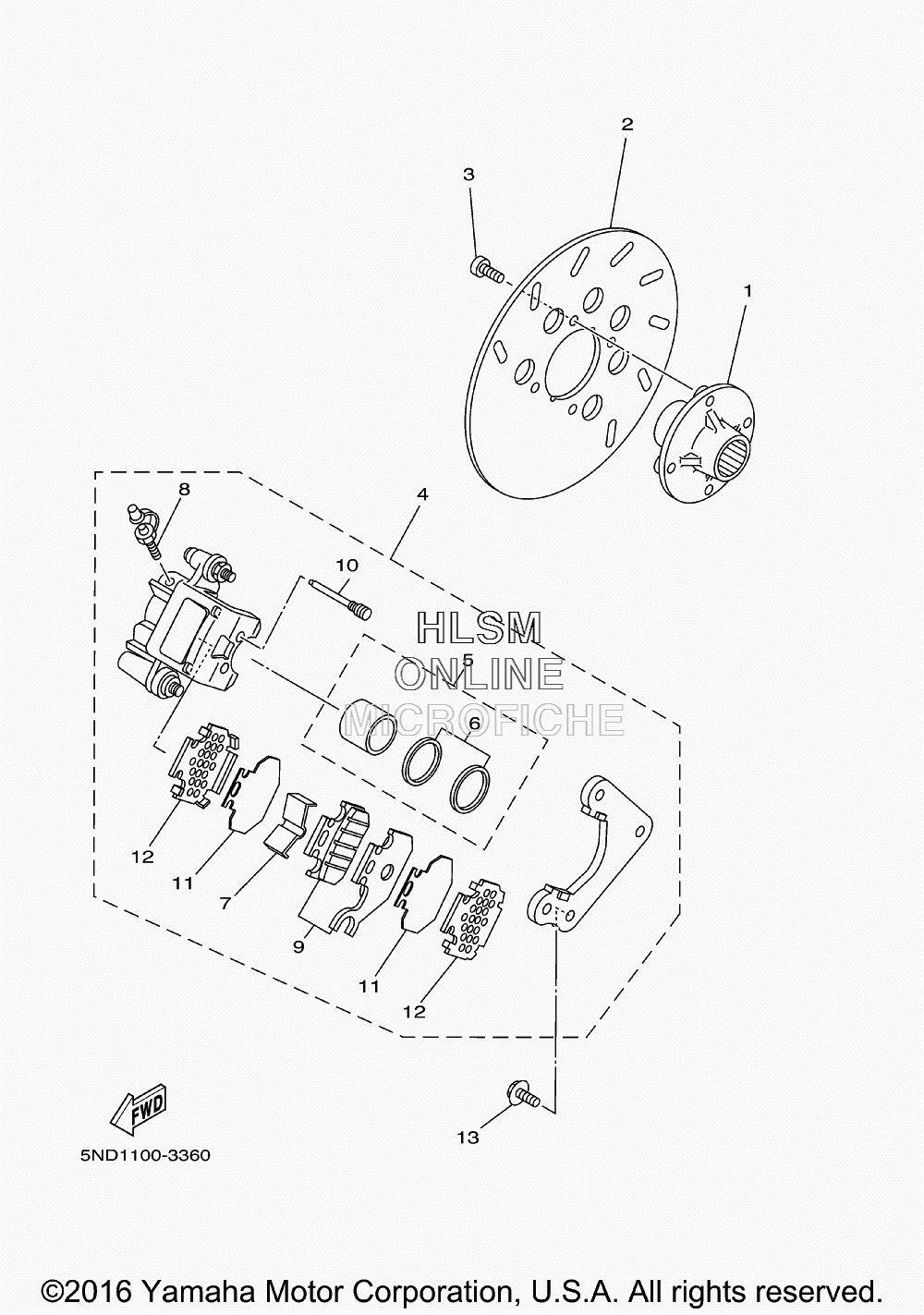

BRAKE - REAR CALIPER для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска`
-
№АртикулНазвание
-
15ND-F5712-10-00 BRACKET, DISC (YMUS)BRACKET, DISC (YMUS)
-
25ND-F5831-00-00 DISC, BRAKE (RIGHT) (YMUS)DISC, BRAKE (RIGHT) (YMUS)
-
390109-081F0-00 BOLTBOLT
-
45GH-2580V-10-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
53TB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
63GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
74GY-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
81UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
95GH-W0046-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
105GH-25924-00-00 ...PIN, PAD...PIN, PAD
-
114GY-22898-50-00 ...INSULATOR, HEAT...INSULATOR, HEAT
-
125GH-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1390105-08538-00 BOLT, FLANGEBOLT, FLANGE
