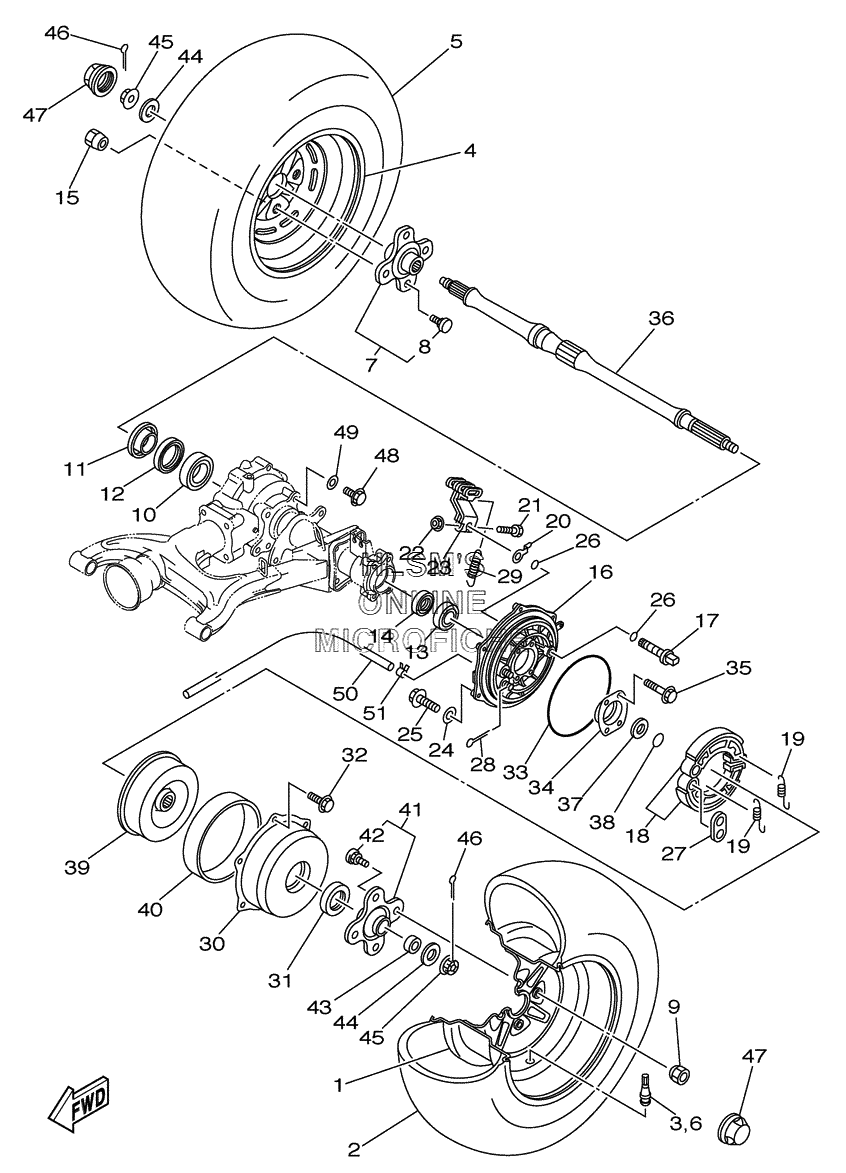

WHEEL - REAR W/ AXLE ASSY для Yamaha KODIAK 400 4X4 YFM400FAS - 2004 года выпуска`
-
№АртикулНазвание
-
15ND-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
45ND-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
693900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
75ND-F5383-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
75ND-F5383-10-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
890114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUTNUT
-
1093306-008Y0-00 BEARINGBEARING
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293106-47040-00 OIL SEALOIL SEAL
-
1393306-278Y0-00 BEARINGBEARING
-
1493101-35097-00 OIL SEALOIL SEAL
-
1590179-10540-00 NUTNUT
-
165VH-F5321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
175VH-F5351-00-00 CAMSHAFTCAMSHAFT
-
185VH-WF536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
195VH-F5333-00-00 SPRING, RETURNSPRING, RETURN
-
205VH-F533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
215VH-F5833-00-00 BOLT, FITTINGBOLT, FITTING
-
229560L-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
235VH-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
245VH-F5898-00-00 GASKETGASKET
-
255VH-F5818-00-00 BOLT, CALIPERBOLT, CALIPER
-
265VH-F5359-00-00 SEAL, CAMSHAFTSEAL, CAMSHAFT
-
275VH-F539F-00-00 PLATE 1PLATE 1
-
2891401-25020-00 PIN, COTTERPIN, COTTER
-
2990506-16482-00 SPRING, TENSIONSPRING, TENSION
-
305FU-F5327-00-00 COVER, PLATECOVER, PLATE
-
315FU-F5319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
329582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
335FU-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
344XE-G6513-00-00 RETAINERRETAINER
-
3590105-08892-00 BOLT, FLANGEBOLT, FLANGE
-
365TE-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
3790387-284T0-00 COLLARCOLLAR
-
3893210-26606-00 O-RINGO-RING
-
395FU-F531E-10-00 DRUM, BRAKEDRUM, BRAKE
-
405FU-F5336-00-00 RING 2RING 2
-
415FU-F5377-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
415FU-F5377-10-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
4290114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
435FU-F5384-00-00 WASHER, WHEELWASHER, WHEEL
-
4490201-168R1-00 WASHER, PLATEWASHER, PLATE
-
4590171-16001-00 NUT, CASTLENUT, CASTLE
-
4691401-30030-00 PIN, COTTERPIN, COTTER
-
475GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
4890105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
4990201-101J1-00 WASHER, PLATEWASHER, PLATE
-
5090445-07807-00 HOSE (L1150)HOSE (L1150)
-
5190467-07093-00 CLIPCLIP
