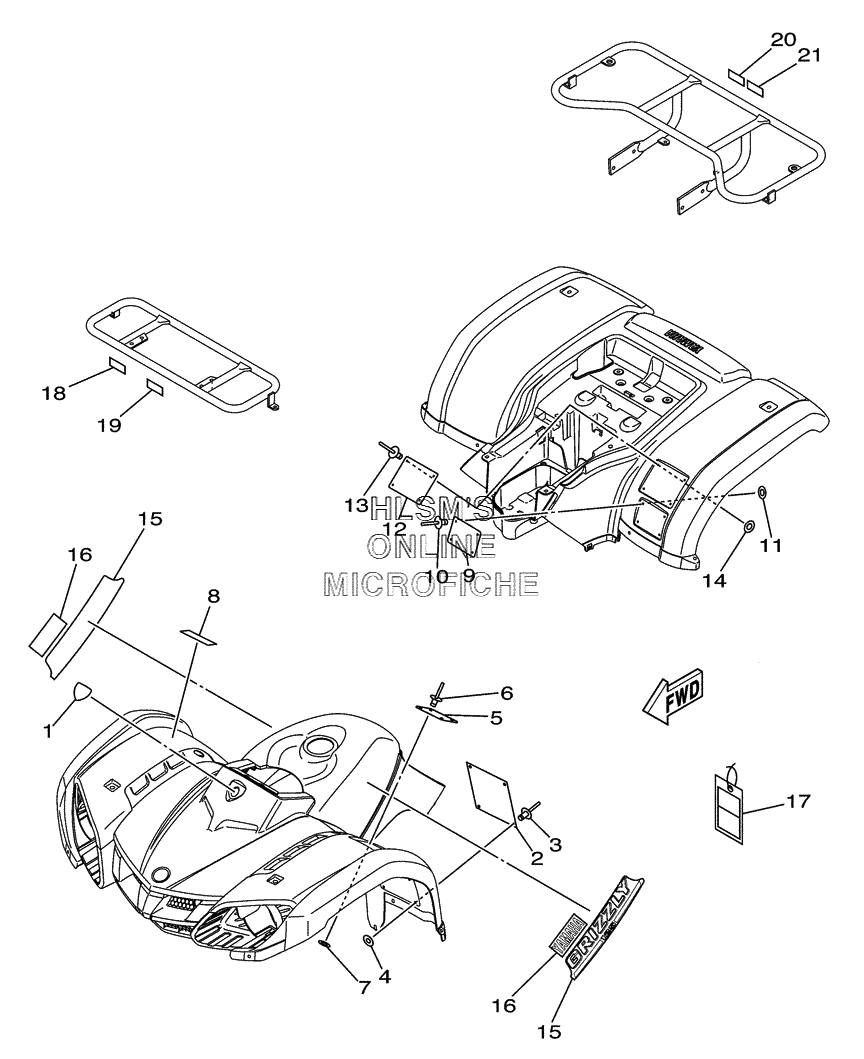

DECALS для Yamaha GRIZZLY YFM125S - 2004 года выпуска`
-
№АртикулНазвание
-
15FE-26232-00-00 EMBLEM 3DEMBLEM 3D
-
25FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
390267-32004-00 RIVET, BLINDRIVET, BLIND
-
490201-03313-00 WASHER, PLATEWASHER, PLATE
-
55FE-21697-01-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03313-00 WASHER, PLATEWASHER, PLATE
-
85YT-2151E-01-00 LABEL 2LABEL 2
-
91C5-21696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
1090267-32004-00 RIVET, BLINDRIVET, BLIND
-
1190201-03313-00 WASHER, PLATEWASHER, PLATE
-
125FE-2151H-01-00 LABEL 5 (ENGLISH)LABEL 5 (ENGLISH)
-
1390267-32004-00 RIVET, BLINDRIVET, BLIND
-
1490201-03313-00 WASHER, PLATEWASHER, PLATE
-
151C5-2173E-00-00 GRAPHIC 1 (FOR PDG)GRAPHIC 1 (FOR PDG)
-
151C5-2173E-10-00 GRAPHIC 1 (FOR DPBSN)GRAPHIC 1 (FOR DPBSN)
-
164ES-2153E-30-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
175KM-2819R-00-00 TAG, WARNINGTAG, WARNING
-
183MX-24875-A0-00 LABEL 1LABEL 1
-
193LD-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
203MX-24875-A0-00 LABEL 1LABEL 1
