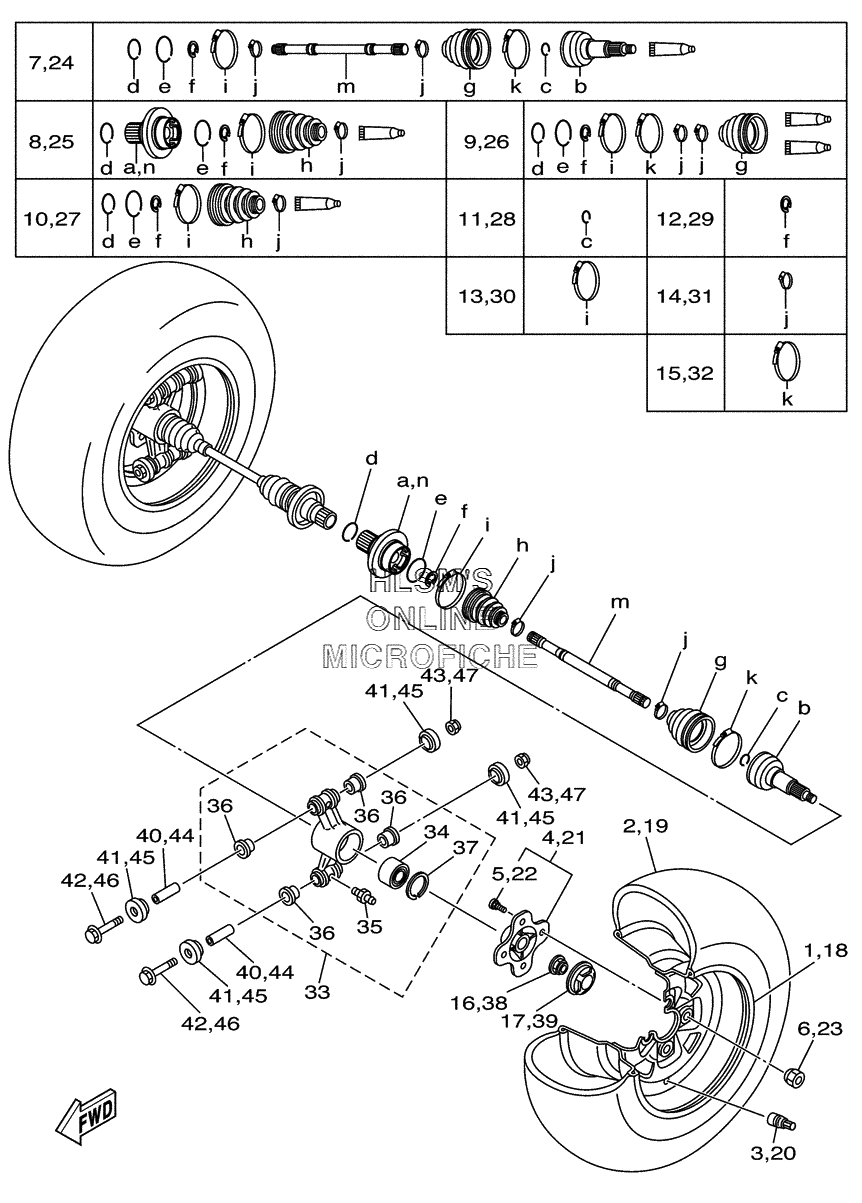

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 660 4X4 WETLAND YFM660FHSWL - 2004 года выпуска`
-
№АртикулНазвание
-
15KM-25390-31-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
15KM-25390-41-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12009-00 TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)
-
393900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
45KM-25311-10-00 HUB, REARHUB, REAR
-
590114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690179-10007-00 NUTNUT
-
75KM-2530U-11-00 BALL JOINT SET (LEFT)BALL JOINT SET (LEFT)
-
85KM-2530W-10-00 DOUBLE OFF SET JOINT (LEFT)DOUBLE OFF SET JOINT (LEFT)
-
95KM-2530X-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
105KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
114KB-2512H-00-00 CIRCLIPCIRCLIP
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
143HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
153HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
1690179-20006-00 NUTNUT
-
175KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
185KM-25390-31-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
185KM-25390-41-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
1994110-12009-00 TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)
-
2093900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
215KM-25311-10-00 HUB, REARHUB, REAR
-
2290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2390179-10007-00 NUTNUT
-
245KM-2530T-11-00 BALL JOINT SET (RIGHT)BALL JOINT SET (RIGHT)
-
255KM-2530V-10-00 DOUBLE OFF SET JOINT (RIGHT)DOUBLE OFF SET JOINT (RIGHT)
-
265KM-2530X-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
275KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
284KB-2512H-00-00 CIRCLIPCIRCLIP
-
292HR-2512J-00-00 SNAP RINGSNAP RING
-
304KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
313HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
323HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
335KM-2530F-10-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
3493305-00601-00 ...BEARING...BEARING
-
3593700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3799009-55500-00 ...CIRCLIP...CIRCLIP
-
3890179-20006-00 NUTNUT
-
395KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
405KM-23448-00-00 SPACERSPACER
-
412NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4290105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4390185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
445KM-23448-00-00 SPACERSPACER
-
452NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4690105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
