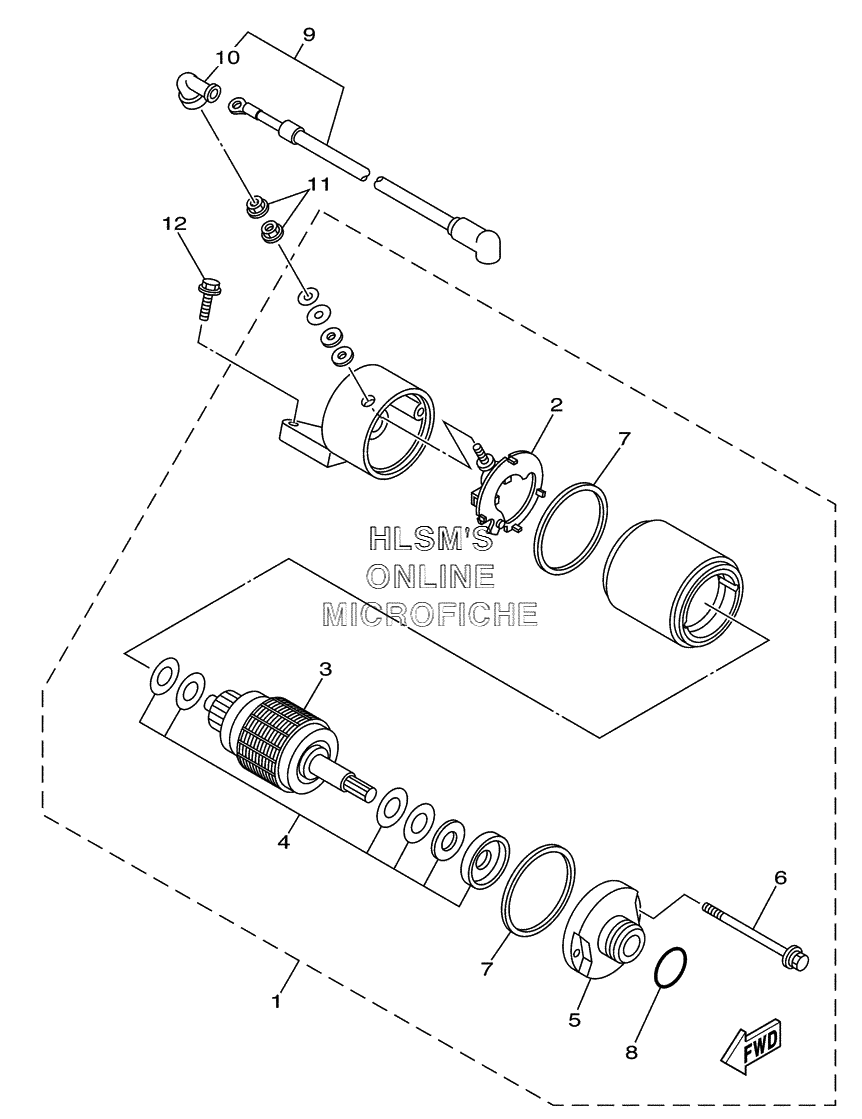

STARTING MOTOR для Yamaha BRUIN YFM350AS - 2004 года выпуска
-
№АртикулНазвание
-
13HE-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23HE-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
33HE-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
43AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
53HE-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
63HE-81826-00-00 ...BOLT...BOLT
-
711H-81844-00-00 ...GASKET...GASKET
-
81FK-81847-00-00 ...O-RING...O-RING
-
93XF-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
104G0-81871-00-00 ...CAP...CAP
-
114XV-8182A-00-00 NUTNUT
-
1295027-06025-00 BOLT, FLANGEBOLT, FLANGE
