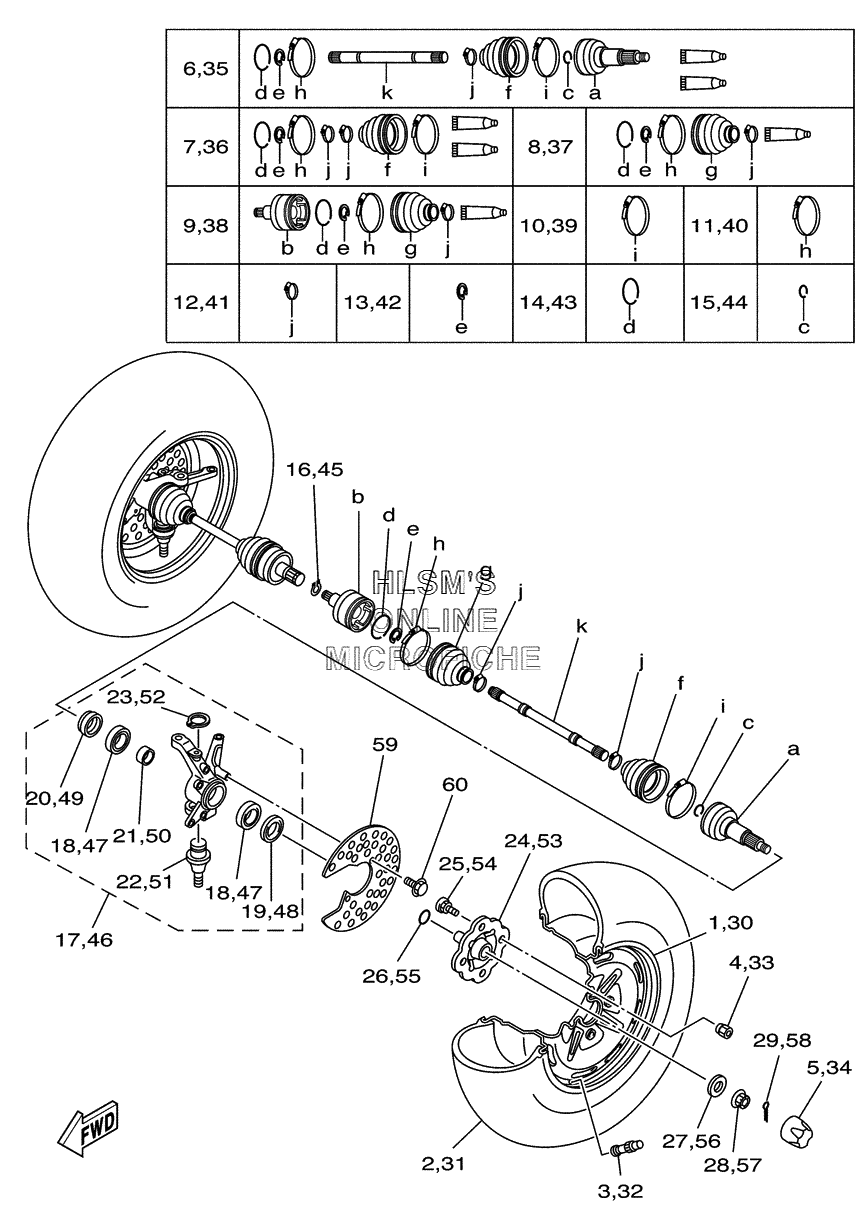

WHEEL - FRONT W/ AXLE ASSY для Yamaha BRUIN 4X4 YFM350FAS - 2004 года выпуска
-
№АртикулНазвание
-
15ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65UH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
75UH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85UH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95UH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
113HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
152HR-2512H-00-00 CIRCLIPCIRCLIP
-
1693450-22119-00 CIRCLIPCIRCLIP
-
175ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1893306-006Y2-00 ...BEARING...BEARING
-
1993106-38046-00 ...OIL SEAL...OIL SEAL
-
2093106-38047-00 ...OIL SEAL...OIL SEAL
-
2190560-30325-00 ...SPACER...SPACER
-
225FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2393410-32826-00 ...CIRCLIP...CIRCLIP
-
245ND-F5111-20-00 HUB, FRONT (OPT)HUB, FRONT (OPT)
-
245ND-F5111-11-00 HUB, FRONT (OPT)HUB, FRONT (OPT)
-
2590114-10804-00 .BOLT, SERRATION.BOLT, SERRATION
-
2693210-27666-00 O-RINGO-RING
-
2790201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2890171-16001-00 NUT, CASTLENUT, CASTLE
-
2991401-30030-00 PIN, COTTERPIN, COTTER
-
305ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
3194108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
3293900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
3390179-10540-00 NUTNUT
-
345GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
355UH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
365UH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
375UH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
385UH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
393HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
403HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
413HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
422HR-2512J-00-00 SNAP RINGSNAP RING
-
434KB-2512H-00-00 CIRCLIPCIRCLIP
-
442HR-2512H-00-00 CIRCLIPCIRCLIP
-
4593450-22119-00 CIRCLIPCIRCLIP
-
465ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4793306-006Y2-00 ...BEARING...BEARING
-
4893106-38046-00 ...OIL SEAL...OIL SEAL
-
4993106-38047-00 ...OIL SEAL...OIL SEAL
-
5090560-30325-00 ...SPACER...SPACER
-
515FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
5293410-32826-00 ...CIRCLIP...CIRCLIP
-
535ND-F5111-20-00 HUB, FRONT (OPT)HUB, FRONT (OPT)
-
535ND-F5111-11-00 HUB, FRONT (OPT)HUB, FRONT (OPT)
-
5490114-10804-00 .BOLT, SERRATION.BOLT, SERRATION
-
5593210-27666-00 O-RINGO-RING
-
5690201-168R1-00 WASHER, PLATEWASHER, PLATE
-
5790171-16001-00 NUT, CASTLENUT, CASTLE
-
5891401-30030-00 PIN, COTTERPIN, COTTER
-
595ND-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
609582P-06012-00 BOLT, FLANGEBOLT, FLANGE
