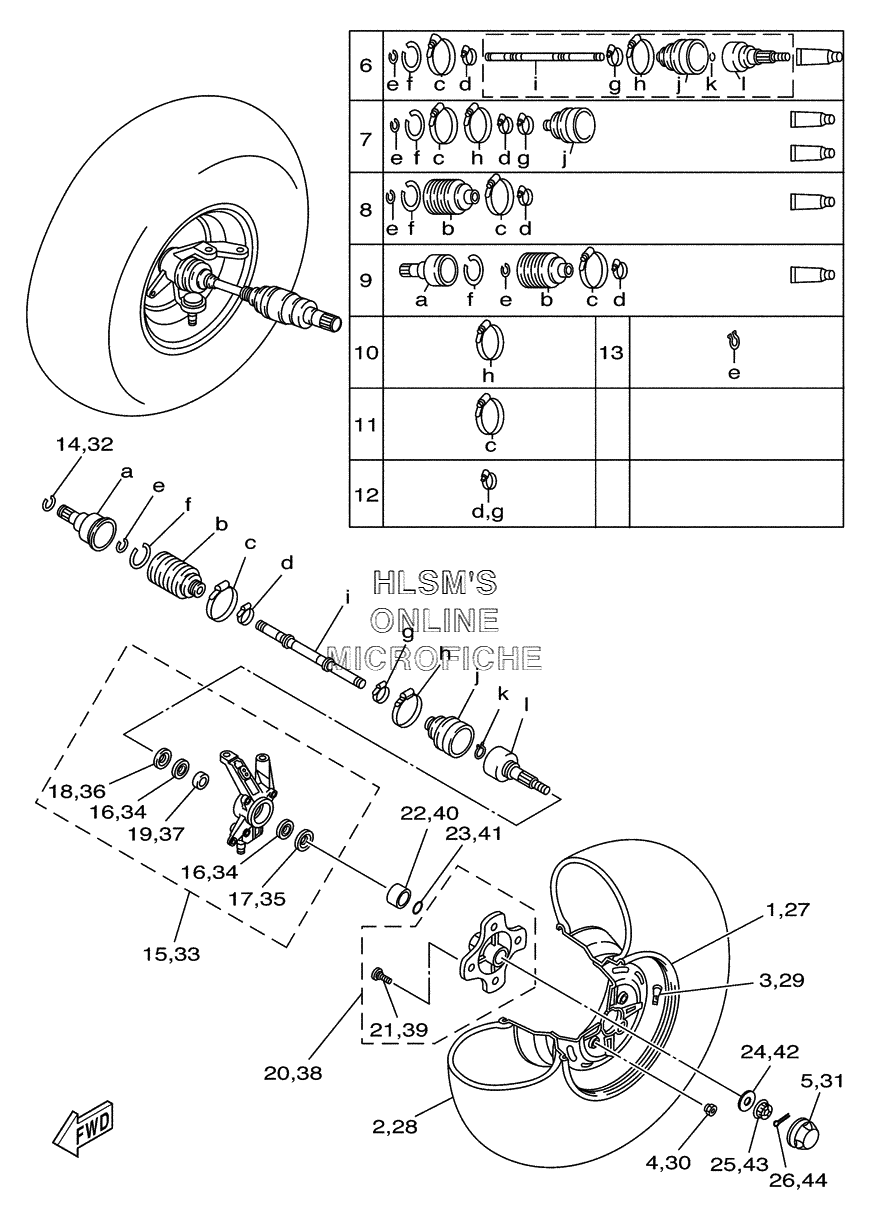

WHEEL - FRONT W/ AXLE ASSY для Yamaha BIG BEAR 400 4X4 YFM400FWS - 2004 года выпуска`
-
№АртикулНазвание
-
15FU-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294108-128Y0-00 TIRE (AT25 X 8-12*, KT404) (OPT) (DUNLOP)TIRE (AT25 X 8-12*, KT404) (OPT) (DUNLOP)
-
294108-128Y4-00 TIRE (AT25 X 8-12*, C2991) (OPT) (CHENG SHIN)TIRE (AT25 X 8-12*, C2991) (OPT) (CHENG SHIN)
-
393900-00812-00 VALVE, RIM (OPT) (DUNLOP)VALVE, RIM (OPT) (DUNLOP)
-
393900-00813-00 VALVE, RIM (TR413) (OPT) (CHENG SHIN)VALVE, RIM (TR413) (OPT) (CHENG SHIN)
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65FU-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
73HN-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
83HN-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
113HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
1493450-22119-00 CIRCLIPCIRCLIP
-
155FU-F3501-00-00 STEERING KNUCKLE ASSY (LEFT) (OPT)STEERING KNUCKLE ASSY (LEFT) (OPT)
-
155FU-F3501-10-00 STEERING KNUCKLE ASSY (LEFT) (OPT)STEERING KNUCKLE ASSY (LEFT) (OPT)
-
1693306-006Y0-00 ...BEARING...BEARING
-
1793106-38046-00 ...OIL SEAL...OIL SEAL
-
1893106-38047-00 ...OIL SEAL...OIL SEAL
-
1990560-30325-00 ...SPACER...SPACER
-
204KB-25111-02-00 HUB, FRONTHUB, FRONT
-
2190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2290387-281V8-00 COLLARCOLLAR
-
2393210-26606-00 O-RINGO-RING
-
2490201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2590171-16001-00 NUT, CASTLENUT, CASTLE
-
2691401-30030-00 PIN, COTTERPIN, COTTER
-
275FU-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
2894108-128Y0-00 TIRE (AT25 X 8-12*, KT404) (OPT) (DUNLOP)TIRE (AT25 X 8-12*, KT404) (OPT) (DUNLOP)
-
2894108-128Y4-00 TIRE (AT25 X 8-12*, C2991) (OPT) (CHENG SHIN)TIRE (AT25 X 8-12*, C2991) (OPT) (CHENG SHIN)
-
2993900-00812-00 VALVE, RIM (OPT) (DUNLOP)VALVE, RIM (OPT) (DUNLOP)
-
2993900-00813-00 VALVE, RIM (TR413) (OPT) (CHENG SHIN)VALVE, RIM (TR413) (OPT) (CHENG SHIN)
-
3090179-10540-00 NUTNUT
-
315GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
3293450-22119-00 CIRCLIPCIRCLIP
-
335FU-F3502-00-00 STEERING KNUCKLE ASSY (RIGHT) (OPT)STEERING KNUCKLE ASSY (RIGHT) (OPT)
-
335FU-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT) (OPT)STEERING KNUCKLE ASSY (RIGHT) (OPT)
-
3493306-006Y0-00 ...BEARING...BEARING
-
3593106-38046-00 ...OIL SEAL...OIL SEAL
-
3693106-38047-00 ...OIL SEAL...OIL SEAL
-
3790560-30325-00 ...SPACER...SPACER
-
384KB-25111-02-00 HUB, FRONTHUB, FRONT
-
3990114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4090387-281V8-00 COLLARCOLLAR
-
4193210-26606-00 O-RINGO-RING
-
4290201-168R1-00 WASHER, PLATEWASHER, PLATE
-
4390171-16001-00 NUT, CASTLENUT, CASTLE
-
4491401-30030-00 PIN, COTTERPIN, COTTER
