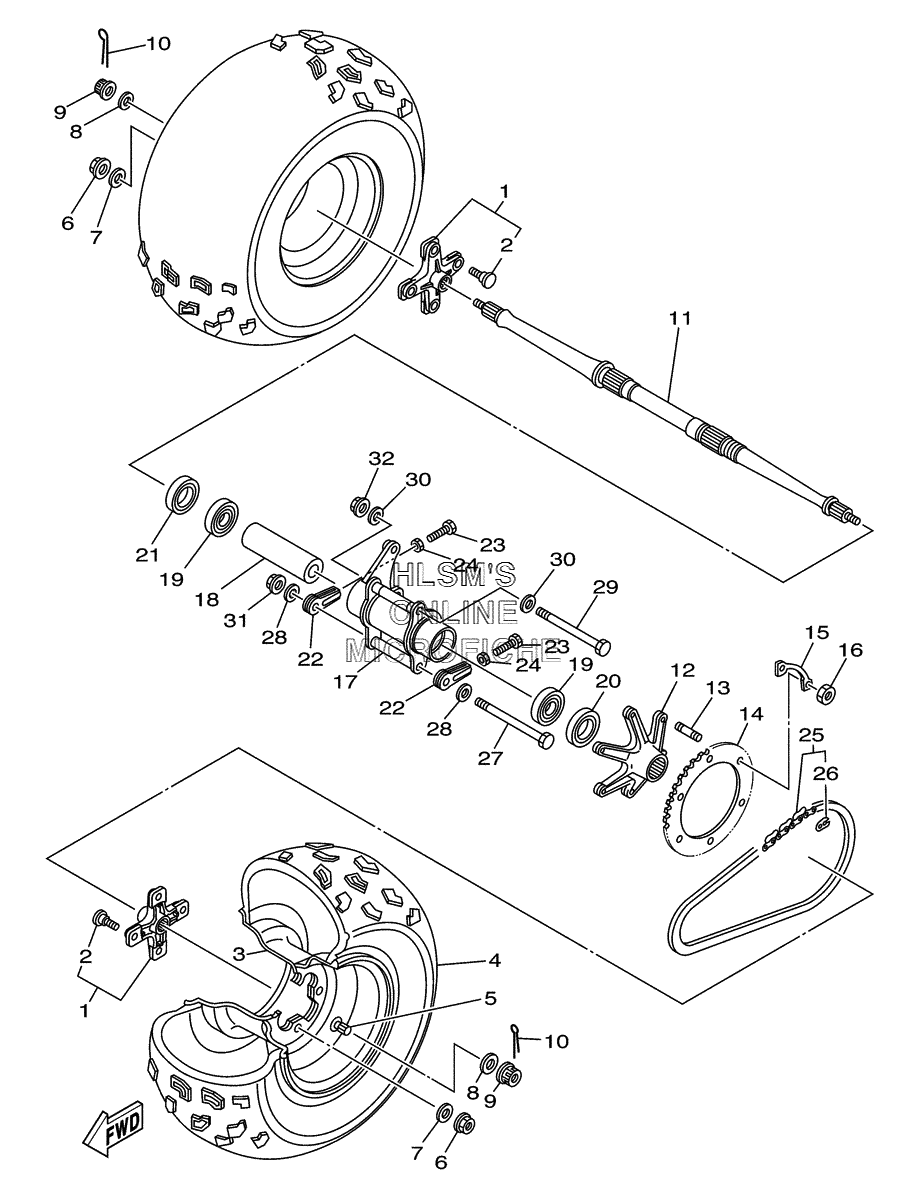

WHEEL - REAR W/ AXLE ASSY для Yamaha BANSHEE LIMITED EDITION YFZ350LES - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-25383-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
290114-10009-00 ...BOLT, SERRATION...BOLT, SERRATION
-
32XK-25390-01-98 REAR WHEEL COMP. (LGB - LOW GLOSS BLACK)REAR WHEEL COMP. (LGB - LOW GLOSS BLACK)
-
494110-090Y3-00 TIRE (AT20X10-9**KT877 T/L) (DUNLOP)TIRE (AT20X10-9**KT877 T/L) (DUNLOP)
-
593900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
695707-10500-00 NUT, FLANGENUT, FLANGE
-
792907-10200-00 WASHER, PLAINWASHER, PLAIN
-
890201-14226-00 WASHER, PLATEWASHER, PLATE
-
990171-14037-00 NUT, CASTLENUT, CASTLE
-
1091401-30030-00 PIN, COTTERPIN, COTTER
-
1138W-25381-02-00 AXLE, WHEELAXLE, WHEEL
-
122XJ-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
1390116-08507-00 BOLT, STUDBOLT, STUD
-
142XJ-25441-20-00 SPROCKET, DRIVEN (41T)SPROCKET, DRIVEN (41T)
-
152XJ-25412-00-00 WASHERWASHER
-
1690170-08258-00 NUTNUT
-
173GG-25311-01-98 HUB, REAR (LGB - LOW GLOSS BLACK)HUB, REAR (LGB - LOW GLOSS BLACK)
-
1890560-35263-00 SPACERSPACER
-
1993306-00705-00 BEARINGBEARING
-
2093102-42260-00 OIL SEALOIL SEAL
-
2193102-43341-00 OIL SEALOIL SEAL
-
222XJ-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2390101-08777-00 BOLTBOLT
-
2495307-08600-00 NUTNUT
-
2594581-87104-00 CHAIN (DID520V)CHAIN (DID520V)
-
2694681-87011-00 ...JOINT, CHAIN (DID520V FJ)...JOINT, CHAIN (DID520V FJ)
-
2790101-10685-00 BOLTBOLT
-
2890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
2990101-12694-00 BOLTBOLT
-
3090201-126A7-00 WASHER, PLATEWASHER, PLATE
-
3190179-10247-00 NUTNUT
-
3290179-12588-00 NUTNUT
