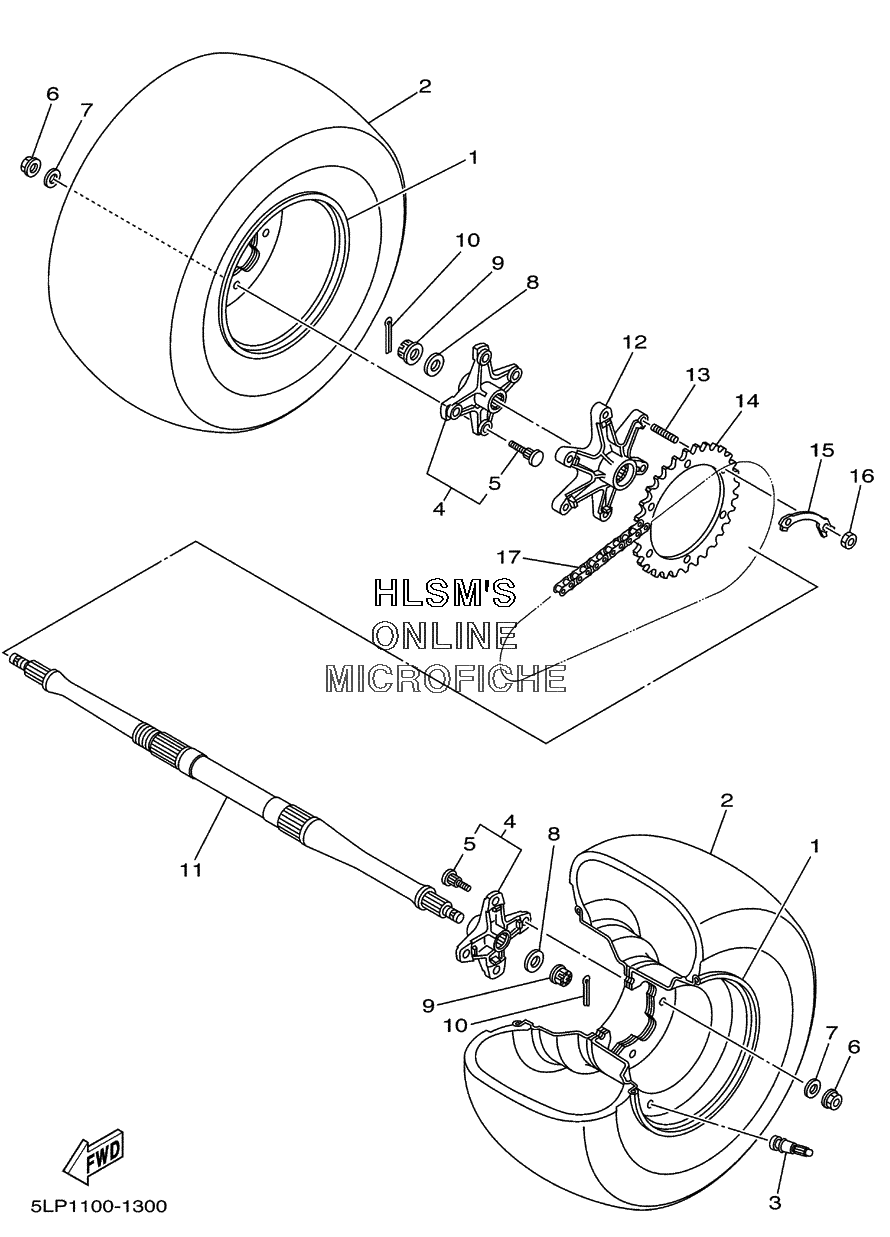

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR BLACK LTD YFM660RLER (5LPC) - 2003 года выпуска`
-
№АртикулНазвание
-
15LP-25390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09008-00 TIRE (AT20 X 10-9** KT335 T/L) (DUNLOP)TIRE (AT20 X 10-9** KT335 T/L) (DUNLOP)
-
393900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
45LP-25383-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10009-00 ...BOLT, SERRATION...BOLT, SERRATION
-
695707-10500-00 NUT, FLANGENUT, FLANGE
-
792907-10200-00 WASHER, PLAINWASHER, PLAIN
-
890201-14226-00 WASHER, PLATEWASHER, PLATE
-
990171-14037-00 NUT, CASTLENUT, CASTLE
-
1091401-30030-00 PIN, COTTERPIN, COTTER
-
115LP-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
125LP-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
1390116-08507-00 BOLT, STUDBOLT, STUD
-
142XJ-25440-20-00 SPROCKET, DRIVEN (40T)SPROCKET, DRIVEN (40T)
-
152XJ-25412-00-00 WASHERWASHER
-
1690170-08258-00 NUTNUT
-
1794582-02092-00 CHAIN (DID520V)CHAIN (DID520V)
