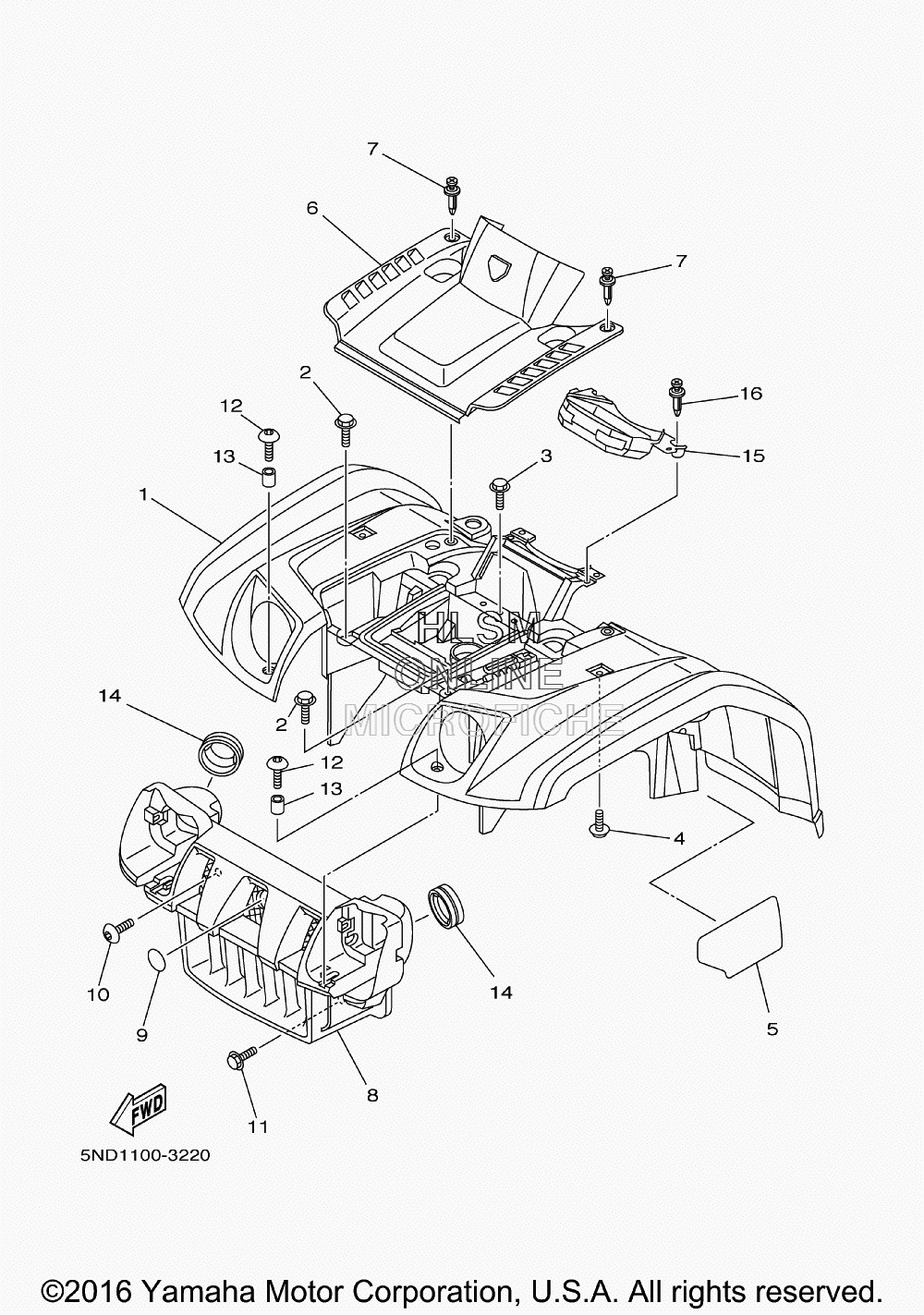

FENDER - FRONT для Yamaha KODIAK 450 REAL TREE [YFM450FAHR] - 2003 года выпуска
-
№АртикулНазвание
-
15ND-F1500-A0-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
290119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55ND-F1575-00-00 SEAL 1SEAL 1
-
65ND-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
790269-06800-00 RIVETRIVET
-
85ND-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
95FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1090110-06007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390387-067V1-00 COLLARCOLLAR
-
145GH-28349-00-00 CAPCAP
-
155ND-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1690269-06800-00 RIVETRIVET
