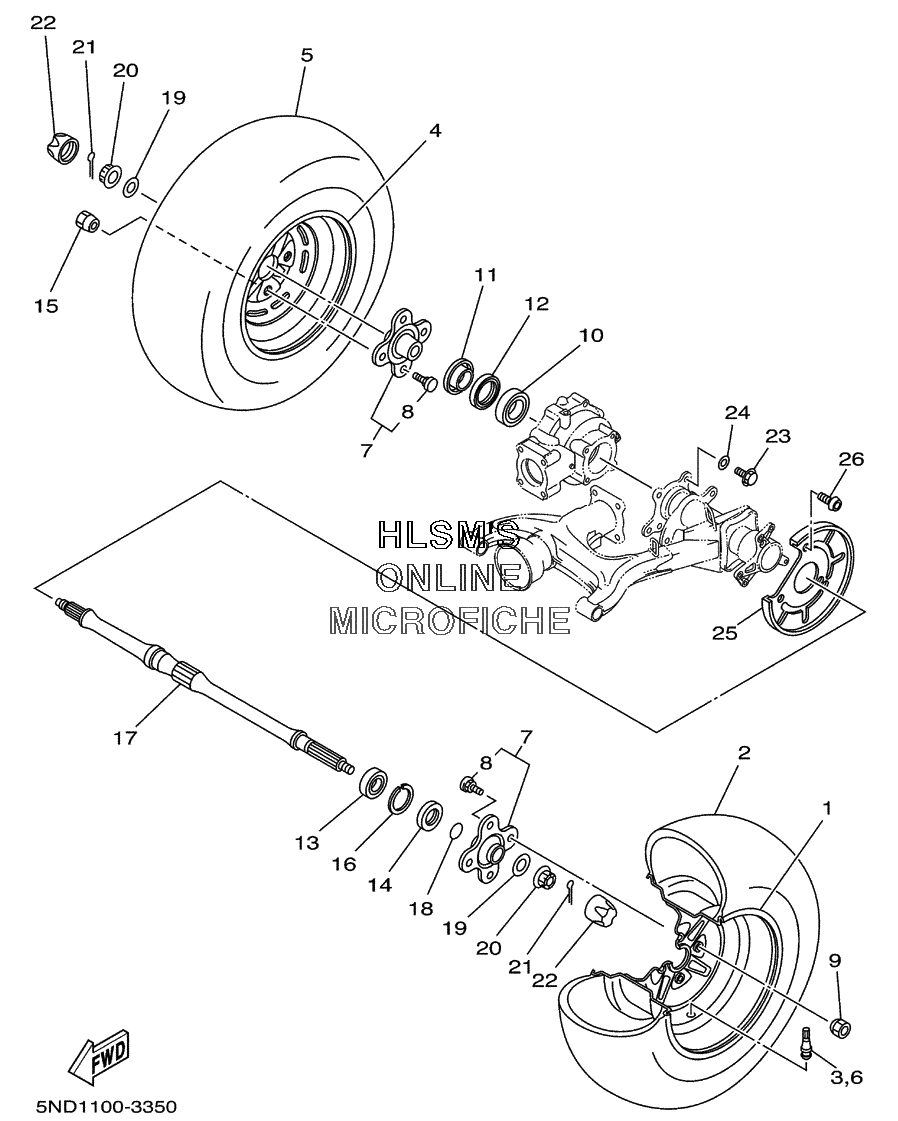

WHEEL - REAR W/ AXLE ASSY для Yamaha KODIAK 450 4WD YFM450FAR (5ND1) - 2003 года выпуска`
-
№АртикулНазвание
-
15ND-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (CHENG SHIN)VALVE, RIM (CHENG SHIN)
-
45ND-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
693900-00813-00 VALVE, RIM (CHENG SHIN)VALVE, RIM (CHENG SHIN)
-
75ND-F5383-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
75ND-F5383-10-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
890114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUTNUT
-
1093306-008Y0-00 BEARINGBEARING
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293106-47040-00 OIL SEALOIL SEAL
-
1393306-006Y2-00 BEARINGBEARING
-
1493106-38046-00 OIL SEALOIL SEAL
-
1590179-10540-00 NUTNUT
-
1699009-55500-00 CIRCLIPCIRCLIP
-
175ND-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
1893210-27666-00 O-RINGO-RING
-
1990201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2090171-16001-00 NUT, CASTLENUT, CASTLE
-
2191401-30030-00 PIN, COTTERPIN, COTTER
-
225GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
2390105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
2490201-101J1-00 WASHER, PLATEWASHER, PLATE
-
255ND-F5718-00-00 PROTECTOR, DISK BRAKEPROTECTOR, DISK BRAKE
-
2692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
