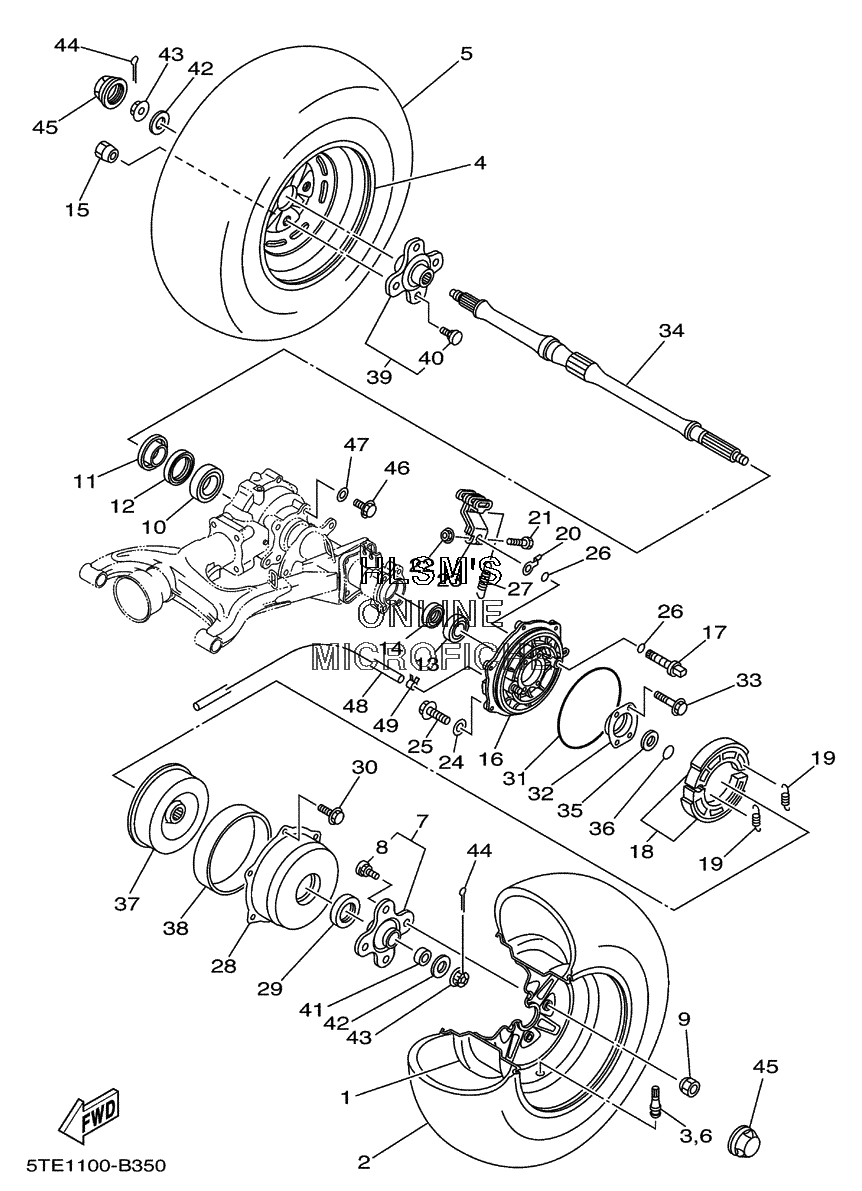

WHEEL - REAR W/ AXLE ASSY для Yamaha KODIAK 400 4X4 YFM400FAR (5TE1) - 2003 года выпуска
-
№АртикулНазвание
-
15ND-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (CHENG SHIN)VALVE, RIM (CHENG SHIN)
-
45ND-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
693900-00813-00 VALVE, RIMVALVE, RIM
-
75ND-F5383-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
75ND-F5383-10-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
890114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUTNUT
-
1093306-008Y0-00 BEARINGBEARING
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293106-47040-00 OIL SEALOIL SEAL
-
1393306-278Y0-00 BEARINGBEARING
-
1493101-35097-00 OIL SEALOIL SEAL
-
1590179-10540-00 NUTNUT
-
165TE-F5321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
175FU-F5351-00-00 CAMSHAFTCAMSHAFT
-
185FU-WF536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
194XE-F5133-00-00 SPRING, RETURNSPRING, RETURN
-
205TE-F513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
214XE-F5833-00-00 BOLT, FITTINGBOLT, FITTING
-
229570L-06500-00 NUT, FLANGENUT, FLANGE
-
235TE-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
244XE-F5898-00-00 GASKETGASKET
-
254XE-F5818-00-00 BOLT, CALIPERBOLT, CALIPER
-
264XE-F5816-00-00 SEAL, DUSTSEAL, DUST
-
2790506-16482-00 SPRING, TENSIONSPRING, TENSION
-
285FU-F5327-00-00 COVER, PLATECOVER, PLATE
-
295FU-F5319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
309582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315FU-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
324XE-G6513-00-00 RETAINERRETAINER
-
3390105-08892-00 BOLT, FLANGEBOLT, FLANGE
-
345TE-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
3590387-284T0-00 COLLARCOLLAR
-
3693210-26606-00 O-RINGO-RING
-
375FU-F531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
385FU-F5336-00-00 RING 2RING 2
-
395FU-F5383-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
395FU-F5383-10-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
4090114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
415FU-F5384-00-00 WASHER, WHEELWASHER, WHEEL
-
4290201-168R1-00 WASHER, PLATEWASHER, PLATE
-
4390171-16001-00 NUT, CASTLENUT, CASTLE
-
4491401-30030-00 PIN, COTTERPIN, COTTER
-
455GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
4690105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
4790201-101J1-00 WASHER, PLATEWASHER, PLATE
-
4890445-07807-00 HOSEHOSE
-
4990467-07093-00 CLIPCLIP
