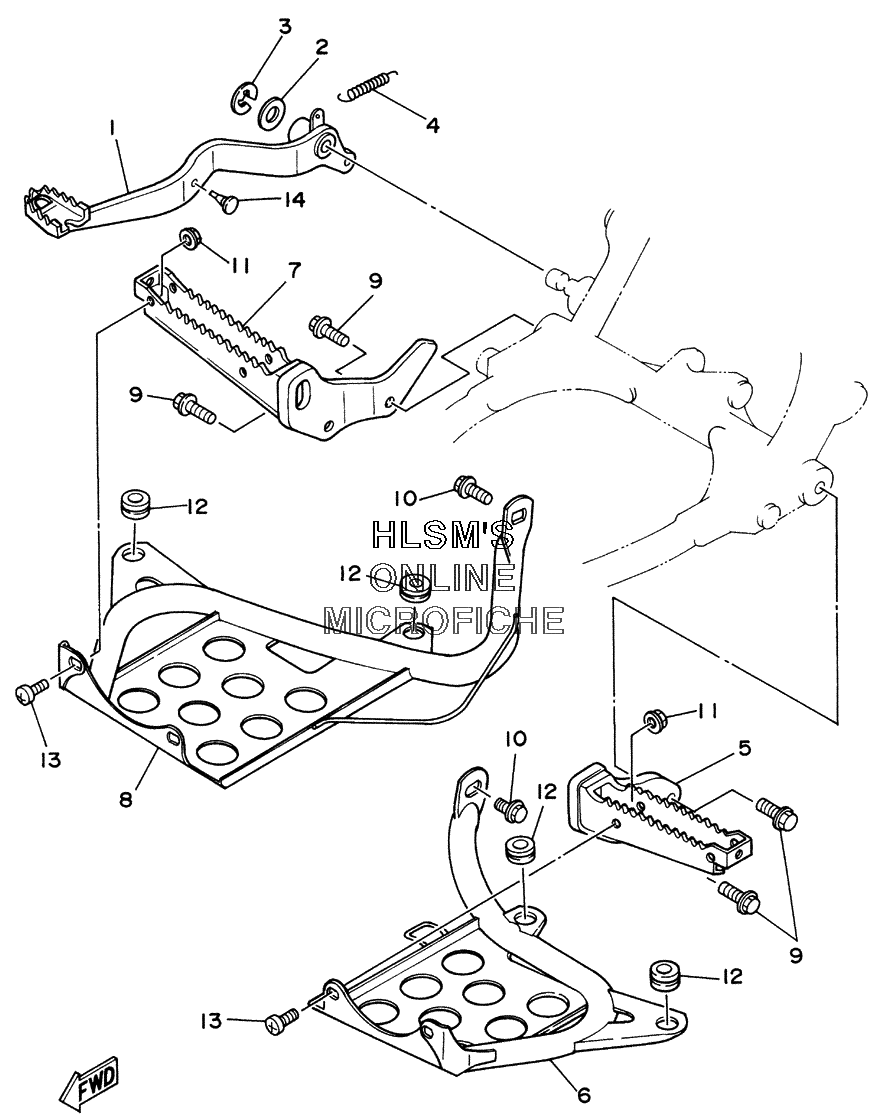

FOOTREST W/ BRAKE PEDAL для Yamaha BANSHEE LTD YFZ350LER (5FKM) - 2003 года выпуска`
-
№АртикулНазвание
-
13GG-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290201-15797-00 WASHER, PLATEWASHER, PLATE
-
393430-12008-00 CIRCLIPCIRCLIP
-
490506-20380-00 SPRING, TENSIONSPRING, TENSION
-
53GG-27411-01-00 FOOTREST 1FOOTREST 1
-
63GD-27445-10-00 PLATE 1PLATE 1
-
73GG-27421-01-00 FOOTREST 2FOOTREST 2
-
83GG-27446-10-00 PLATE 2PLATE 2
-
995817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1095827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1195707-08500-00 NUT, FLANGENUT, FLANGE
-
1290480-18411-00 GROMMETGROMMET
-
1392017-08016-00 BOLTBOLT
-
1490480-05201-00 GROMMETGROMMET
