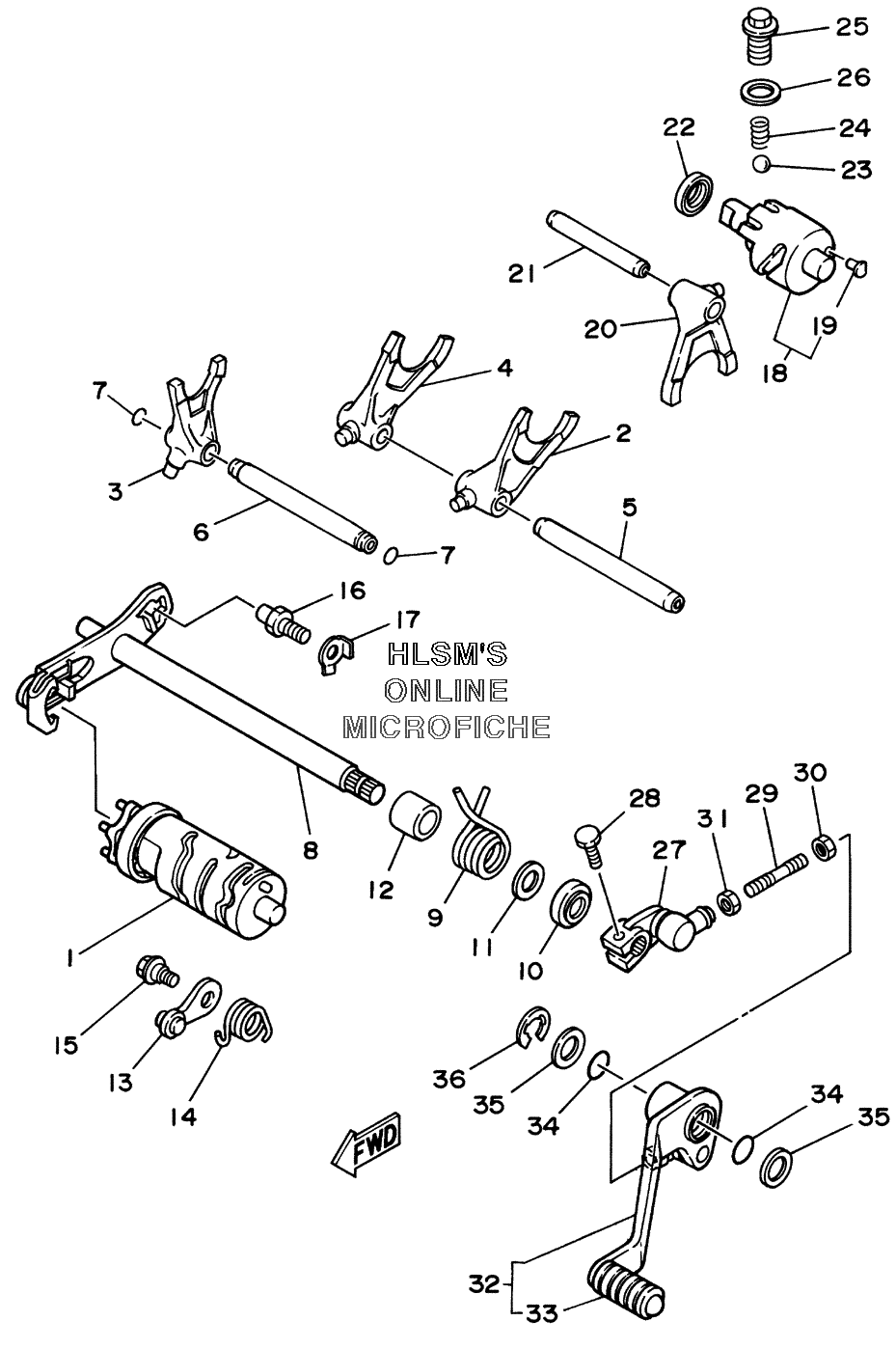

SHIFT CAM FORK для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска`
-
№АртикулНазвание
-
11UY-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
21YW-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
34GB-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
41UY-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
51UY-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
64GB-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
793210-07590-00 O-RINGO-RING
-
81UY-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
990508-32711-00 SPRING, TORSIONSPRING, TORSION
-
1093102-14209-00 OIL SEAL, SD TYPEOIL SEAL, SD TYPE
-
1190201-14691-00 WASHER, PLATEWASHER, PLATE
-
1290560-14284-00 SPACERSPACER
-
131UY-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
1490508-25712-00 SPRING, TORSIONSPRING, TORSION
-
1590109-063F7-00 BOLTBOLT
-
164G0-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
1790215-08260-00 WASHER, LOCKWASHER, LOCK
-
183GD-18420-00-00 SHIFTER ASSYSHIFTER ASSY
-
193GH-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
201UY-18311-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
212A6-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
2293102-15212-00 OIL SEALOIL SEAL
-
2393503-08007-00 BALLBALL
-
2490501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2590105-14367-00 BOLT, FLANGEBOLT, FLANGE
-
2690430-14194-00 GASKETGASKET
-
271UY-18112-01-00 ARM, SHIFTARM, SHIFT
-
2897017-06020-00 BOLTBOLT
-
292XK-18115-00-00 ROD, SHIFTROD, SHIFT
-
3090170-06289-00 NUTNUT
-
3195307-06700-00 NUTNUT
-
321UY-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
33132-18113-01-00 ....COVER, SHIFT PEDAL....COVER, SHIFT PEDAL
-
3493210-15414-00 O-RINGO-RING
-
3590201-15797-00 WASHER, PLATEWASHER, PLATE
-
3693430-12008-00 CIRCLIPCIRCLIP
