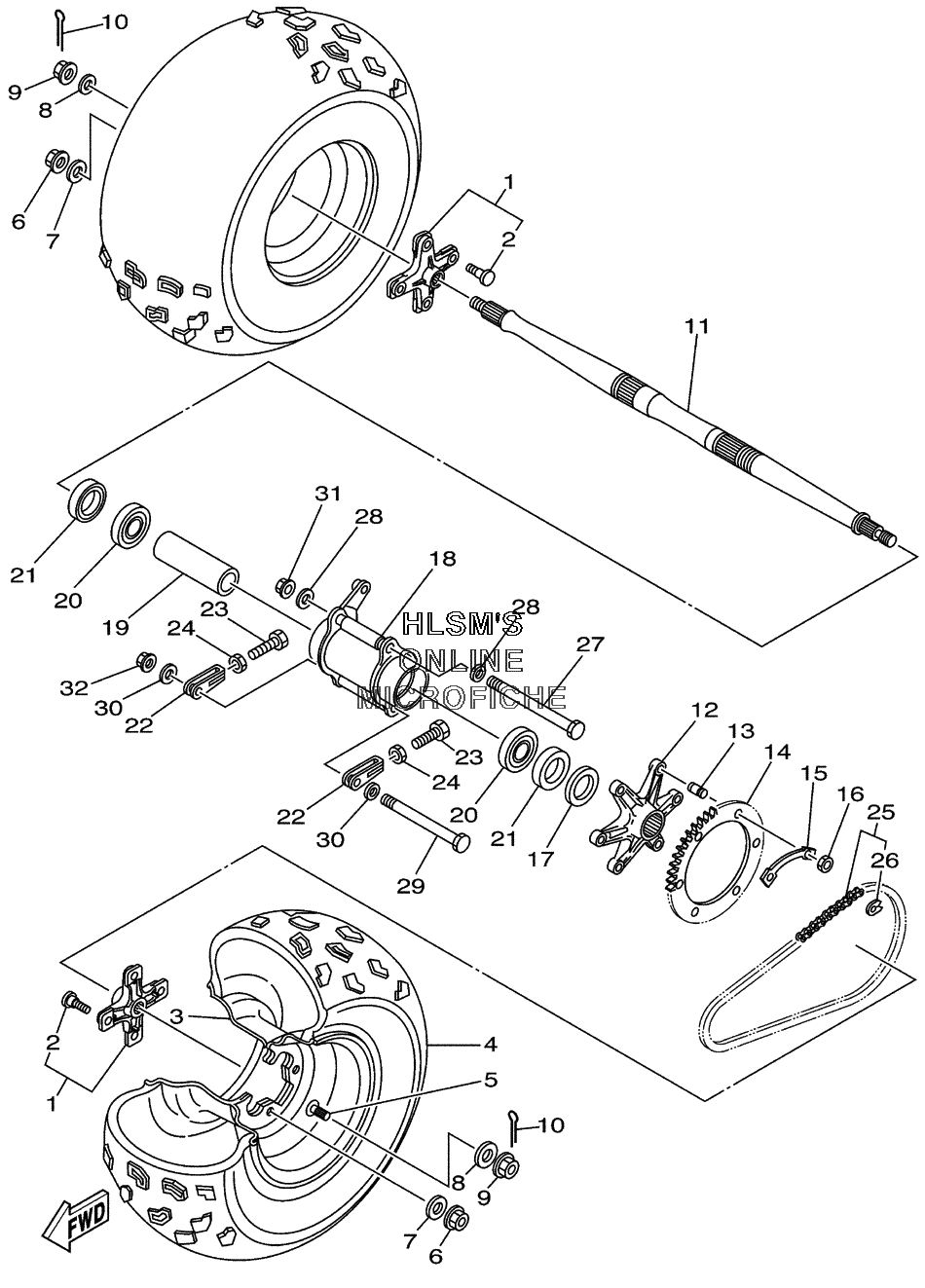

WHEEL - REAR W/ AXLE для Yamaha WARRIOR YFM350XP (5NF4) - 2002 года выпуска`
-
№АртикулНазвание
-
15LP-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
290114-10009-00 ....BOLT, SERRATION....BOLT, SERRATION
-
32XK-25390-01-HM REAR WHEEL COMP.REAR WHEEL COMP.
-
494110-090X4-00 TIRE (AT22X10-9KT775B T/L N) (DUNLOP)TIRE (AT22X10-9KT775B T/L N) (DUNLOP)
-
593900-00022-00 VALVE, RIM (TAIHEIYO)VALVE, RIM (TAIHEIYO)
-
695707-10500-00 NUT, FLANGENUT, FLANGE
-
792907-10200-00 WASHER, PLAINWASHER, PLAIN
-
890201-14226-00 WASHER, PLATEWASHER, PLATE
-
990171-14037-00 NUT, CASTLENUT, CASTLE
-
1091401-30030-00 PIN, COTTERPIN, COTTER
-
113GD-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
123GD-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
1390116-08507-00 BOLT, STUDBOLT, STUD
-
142XJ-25440-20-00 SPROCKET, DRIVEN (40T)SPROCKET, DRIVEN (40T)
-
152XJ-25412-00-00 WASHERWASHER
-
1690170-08258-00 NUTNUT
-
171UY-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
183GD-25311-11-35 HUB, REARHUB, REAR
-
192XK-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
2093306-00804-00 BEARINGBEARING
-
2193102-48370-00 OIL SEALOIL SEAL
-
223GD-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2390101-08777-00 BOLTBOLT
-
2495307-08600-00 NUTNUT
-
2594581-87098-00 CHAIN (DID520V 98L)CHAIN (DID520V 98L)
-
2694681-08011-00 ...JOINT, CHAIN(D.I.D 520V6-FJ)...JOINT, CHAIN(D.I.D 520V6-FJ)
-
2790101-12695-00 BOLTBOLT
-
2890201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2990101-10689-00 BOLTBOLT
-
3090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3190179-12588-00 NUTNUT
-
3290179-10247-00 NUTNUT
