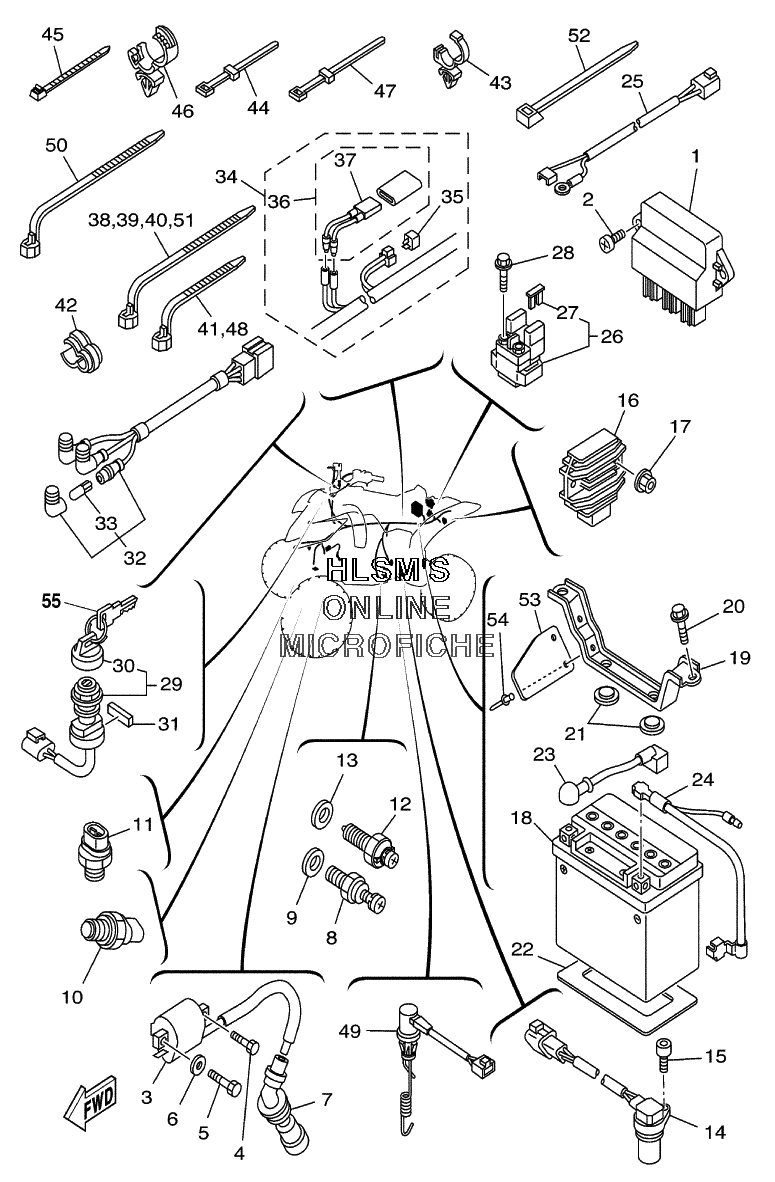

ELECTRICAL для Yamaha RAPTOR YFM660RP (5LP5) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-85540-20-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
298907-06016-00 SCREW, BINDSCREW, BIND
-
34KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
490109-06723-00 BOLTBOLT
-
597007-06020-00 BOLTBOLT
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
73YF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
85LP-82540-00-00 REVERSE SWITCHREVERSE SWITCH
-
990430-10148-00 GASKETGASKET
-
105GH-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
115LP-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
124GY-82540-10-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
145LP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1590110-06124-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
18BTY-YTX14-B5-00 BATTERY ASSY (YTX14-BS)BATTERY ASSY (YTX14-BS)
-
195LP-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
21371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
225LP-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
235LP-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
245LP-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
255LP-82541-00-00 WIRE, LEADWIRE, LEAD
-
264XE-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
272GH-82151-00-00 ......FUSE (20A-BL)......FUSE (20A-BL)
-
2895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
295LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
303HN-82579-00-00 ......CAP, KEY......CAP, KEY
-
315LP-82176-00-00 DAMPERDAMPER
-
325LP-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
335GH-83516-00-00 ......BULB (14V-1.7W)......BULB (14V-1.7W)
-
345LP-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
353WP-81980-00-00 ......DIODE ASSY......DIODE ASSY
-
365GT-82180-00-00 ......CIRCUIT BREAKER ASSY......CIRCUIT BREAKER ASSY
-
375GT-82560-00-00 ............THERMOSWITCH ASSY............THERMOSWITCH ASSY
-
3890464-15195-00 CLAMPCLAMP
-
3990464-15195-00 CLAMPCLAMP
-
4090464-15195-00 CLAMPCLAMP
-
4190464-13073-00 CLAMPCLAMP
-
4290464-15065-00 CLAMPCLAMP
-
4390464-20181-00 CLAMPCLAMP
-
44437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4590465-13M11-00 CLAMPCLAMP
-
4690464-07209-00 CLAMPCLAMP
-
473TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4890464-13073-00 CLAMPCLAMP
-
495LP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
5090464-13077-00 CLAMPCLAMP
-
5190464-15195-00 CLAMPCLAMP
-
5290464-16061-00 BANDBAND
-
535LP-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
5490267-48120-00 RIVET, BLINDRIVET, BLIND
-
5590890-56001-00 ATV KEY BLANK (TYPE-A)ATV KEY BLANK (TYPE-A)
-
5590890-56002-00 ATV KEY BLANK (TYPE-B)ATV KEY BLANK (TYPE-B)
