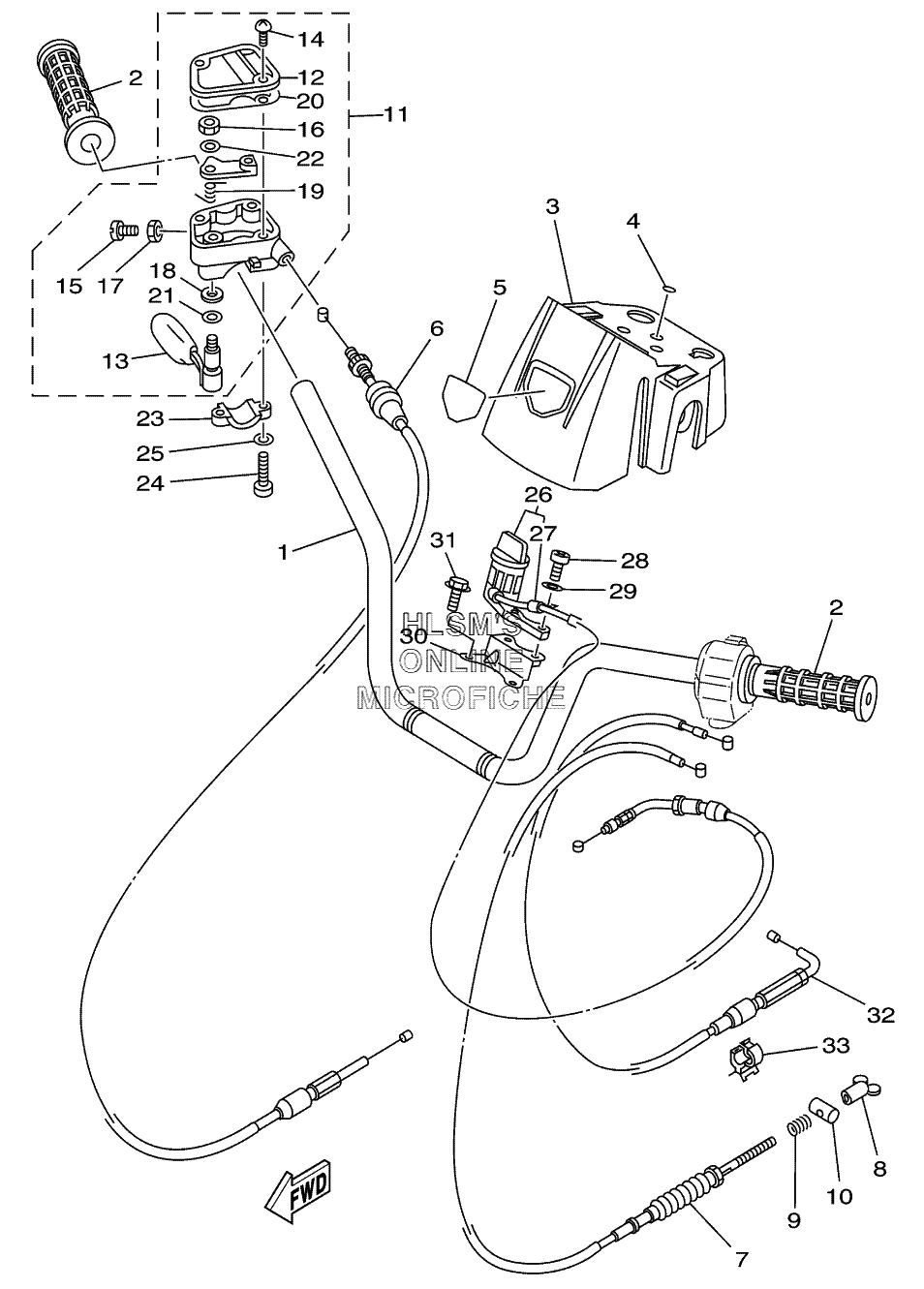

HANDLEBAR W/ THOTTLE - CABLES для Yamaha BIG BEAR 400 2WD YFM400P (5GW7) - 2002 года выпуска`
-
№АртикулНазвание
-
15FU-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-00-00 GRIPGRIP
-
35FU-F6124-10-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-00-00 TUNING FORK (12MM)TUNING FORK (12MM)
-
55FU-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
65FU-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75FU-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
990501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090249-12008-00 PINPIN
-
114KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
124KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
131NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1490149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1695607-05100-00 ...NUT, U...NUT, U
-
1795307-05700-00 ......NUT......NUT
-
1893104-09025-00 ......OIL SEAL......OIL SEAL
-
191NV-26304-00-00 ......SPRING......SPRING
-
204KB-2628G-00-00 ......GASKET......GASKET
-
211NV-26129-00-00 ......WASHER......WASHER
-
221NV-26398-00-00 ......WASHER......WASHER
-
234V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2498507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592907-05600-00 WASHERWASHER
-
264KB-26150-01-00 REVLEVER ASSYREVLEVER ASSY
-
274KB-2637E-02-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
2898507-05018-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2992907-05600-00 WASHERWASHER
-
305FU-F612E-00-00 BRACKETBRACKET
-
319502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
325FU-26331-10-00 CABLE, STARTER 1CABLE, STARTER 1
-
3390464-10842-00 CLAMPCLAMP
