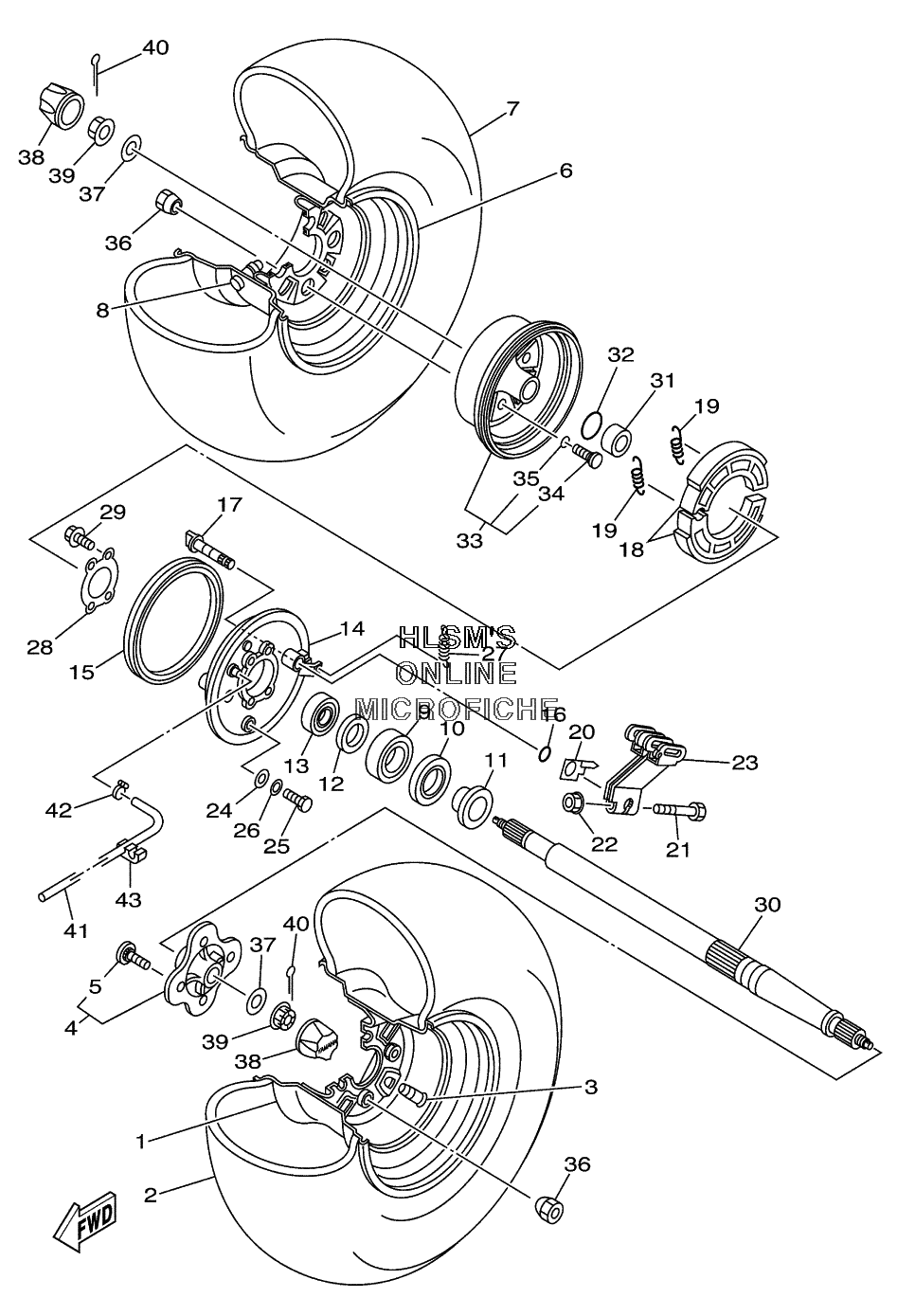

WHEEL - REAR W/ AXLE - BRAKE для Yamaha BEAR TRACKER YFM250XP (4XEE) - 2002 года выпуска`
-
№АртикулНазвание
-
14XE-F5390-20-00 REAR WHEEL COMPREAR WHEEL COMP
-
294110-10800-00 TIRE (AT 22X10-10, M-906) (OPT)TIRE (AT 22X10-10, M-906) (OPT)
-
294110-108S9-00 TIRE (AT 22X10-10) (OPT)TIRE (AT 22X10-10) (OPT)
-
294110-108X7-00 TIRE (AT 22X10-10, KT705-T/L) (OPT)TIRE (AT 22X10-10, KT705-T/L) (OPT)
-
393900-00810-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
393900-00813-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
42HR-25383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
64XE-F5390-20-00 REAR WHEEL COMPREAR WHEEL COMP
-
794110-10800-00 TIRE (AT 22X10-10, M-906) (OPT)TIRE (AT 22X10-10, M-906) (OPT)
-
794110-108S9-00 TIRE (AT 22X10-10) (OPT)TIRE (AT 22X10-10) (OPT)
-
794110-108X7-00 TIRE (AT 22X10-10, KT705-T/L) (OPT)TIRE (AT 22X10-10, KT705-T/L) (OPT)
-
893900-00810-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
893900-00813-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
993306-008Y0-00 BEARINGBEARING
-
1093106-47040-00 OIL SEALOIL SEAL
-
114SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1293101-35097-00 OIL SEALOIL SEAL
-
1393306-278Y0-00 BEARINGBEARING
-
144XE-F5321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
154XE-F5129-00-00 SEAL, PLATE DUSTSEAL, PLATE DUST
-
164XE-F5816-00-00 SEAL, DUSTSEAL, DUST
-
174XE-F5351-00-00 CAMSHAFTCAMSHAFT
-
184XE-WF531-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
194XE-F5133-00-00 SPRING, RETURNSPRING, RETURN
-
204XE-F513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
214XE-F5833-00-00 BOLT, FITTINGBOLT, FITTING
-
229570L-06500-00 NUT, FLANGENUT, FLANGE
-
234XE-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
244XE-F5898-00-00 GASKETGASKET
-
254XE-F5818-00-00 BOLT, CALIPERBOLT, CALIPER
-
264XE-F5153-00-00 SHIM, CAMSHAFTSHIM, CAMSHAFT
-
2790506-12403-00 SPRING, TENSIONSPRING, TENSION
-
284XE-G6513-00-00 RETAINERRETAINER
-
2990105-08892-00 BOLT, FLANGEBOLT, FLANGE
-
304XE-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
3190387-284T0-00 COLLARCOLLAR
-
3293210-26606-00 O-RINGO-RING
-
334XE-F5310-00-00 HUB ASSYHUB ASSY
-
3490114-10802-00 ...BOLT, SERRATION...BOLT, SERRATION
-
3593210-12131-00 ...O-RING...O-RING
-
3690179-10540-00 NUTNUT
-
3790201-168R1-00 WASHER, PLATEWASHER, PLATE
-
3852H-2512A-00-00 CAP, WHEELCAP, WHEEL
-
3990171-16001-00 NUT, CASTLENUT, CASTLE
-
4091401-30030-00 PIN, COTTERPIN, COTTER
-
4190445-07800-00 HOSEHOSE
-
4290467-07093-00 CLIPCLIP
-
4390468-15020-00 CLIPCLIP
