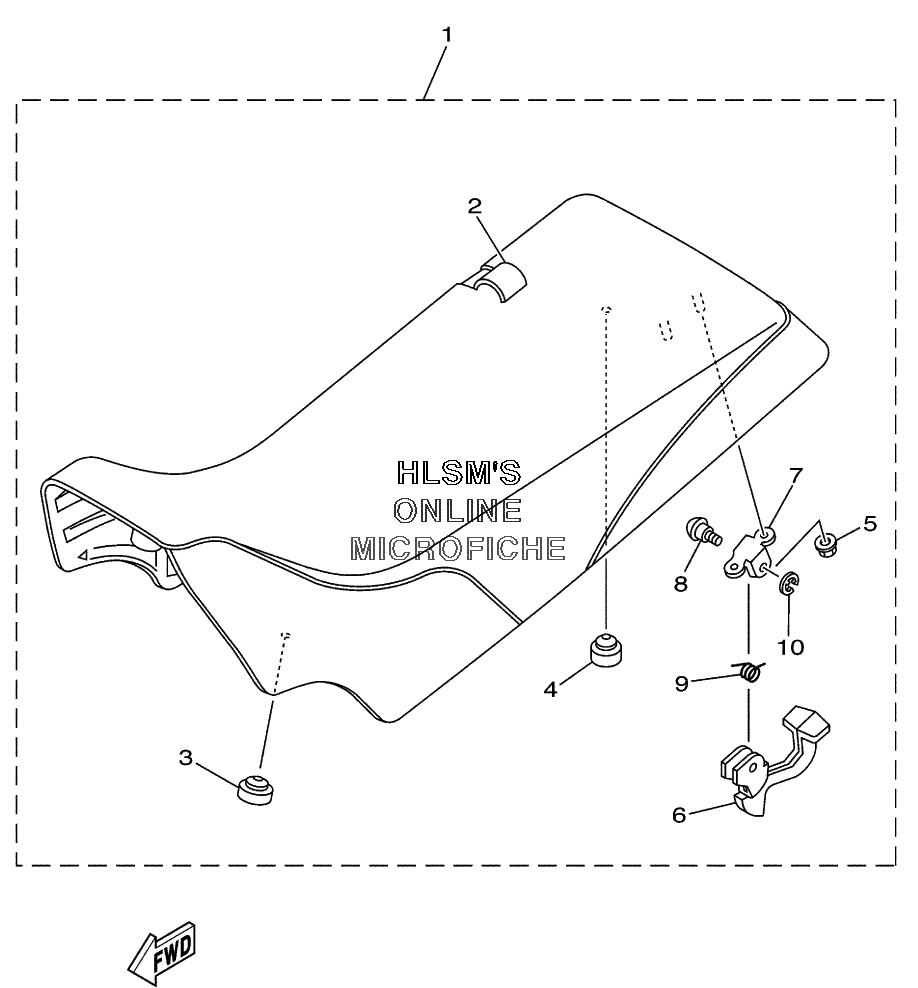

SEAT для Yamaha BANSHEE YFZ350P (5FKE) - 2002 года выпуска`
-
№АртикулНазвание
-
15FK-24710-E0-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25FK-2470F-E0-00 ...COVER, SEAT...COVER, SEAT
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
4371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
595707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
63GD-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
84K0-24774-01-00 ...PIN...PIN
-
990508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
1093430-20454-00 ...CIRCLIP...CIRCLIP
