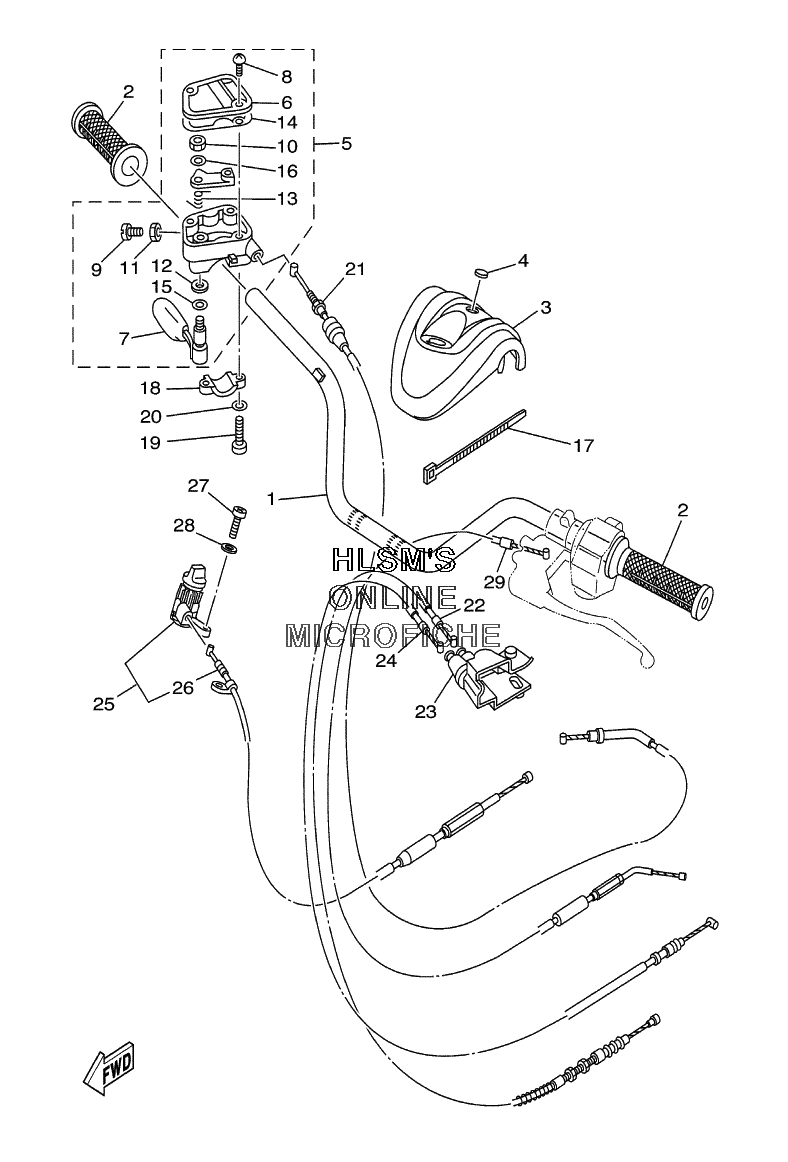

HANDLEBAR W/ THROTTLE - CABLE для Yamaha RAPTOR YFM660RNC CALIFORNIA (5LP3) - 2001 года выпуска`
-
№АртикулНазвание
-
15LP-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35LP-26124-00-00 PROTECTOR, HANDLEBAR (583) (DEEP PURPLISH BLUE)PROTECTOR, HANDLEBAR (583) (DEEP PURPLISH BLUE)
-
35LP-26124-10-00 PROTECTOR, HANDLEBAR (OUJ) (RADICAL WHITE)PROTECTOR, HANDLEBAR (OUJ) (RADICAL WHITE)
-
45GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
54KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
64KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
71NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
890149-04278-00 ...SCREW...SCREW
-
998507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1095607-05100-00 ...NUT, U...NUT, U
-
1195307-05700-00 ...NUT...NUT
-
1293104-09025-00 ...OIL SEAL...OIL SEAL
-
131NV-26304-00-00 ...SPRING...SPRING
-
144KB-2628G-00-00 WASHER, PLATEWASHER, PLATE
-
151NV-26129-00-00 ...WASHER...WASHER
-
161NV-26398-00-00 ...WASHER...WASHER
-
17437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
184V4-82913-00-00 HOLDER, LEVER LOWERHOLDER, LEVER LOWER
-
1998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
215LP-26311-00-00 CABLE, THROTTLECABLE, THROTTLE
-
225LP-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
231UY-2637A-01-00 COVER, HANDLE LEVERCOVER, HANDLE LEVER
-
245LP-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
255LP-26150-00-00 REVLEVER ASSYREVLEVER ASSY
-
265LP-2637E-00-00 ...CABLE, CONTROL...CABLE, CONTROL
-
2798507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892907-05600-00 WASHER, PLATEWASHER, PLATE
-
295LP-26331-00-00 CABLE, STARTERCABLE, STARTER
