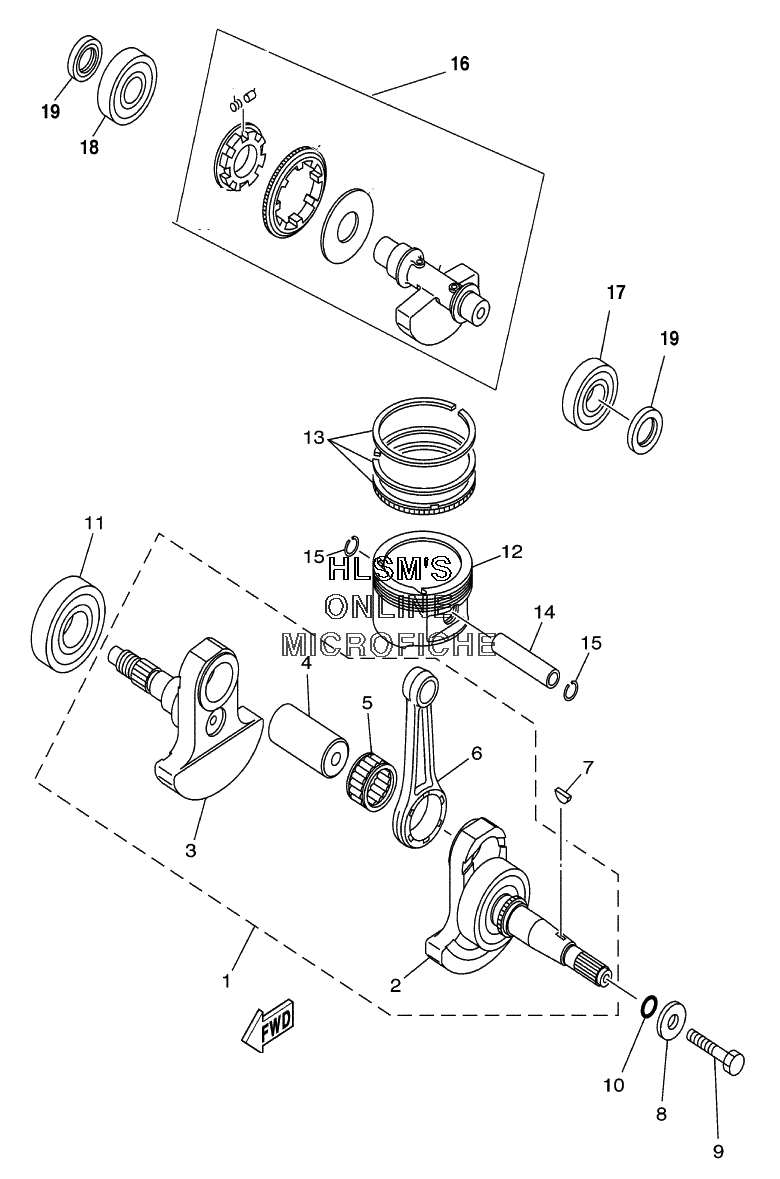

CRANKSHAFT - PISTON для Yamaha GRIZZLY YFM600FWAN (5GTE) - 2001 года выпуска
-
№АртикулНазвание
-
-5GT-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25GT-W1141-00-00 ...CRANK...CRANK
-
35GT-W1142-00-00 ...CRANK...CRANK
-
44WV-11681-10-00 ...PIN, CRANK...PIN, CRANK
-
593310-637D3-00 ......BEARING......BEARING
-
65GT-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790280-16053-00 KEY, WOODRUFFKEY, WOODRUFF
-
890201-10321-00 WASHER, PLATEWASHER, PLATE
-
990101-10568-00 BOLTBOLT
-
1093210-16290-00 O-RINGO-RING
-
1193306-30702-00 BEARING (B6307)BEARING (B6307)
-
123TB-11631-00-Y0 PISTON (STANDARD)PISTON (STANDARD)
-
123TB-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
123TB-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
1334L-11610-00-00 PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
1334L-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
1334L-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
141JK-11633-01-00 PIN, PISTONPIN, PISTON
-
1593450-24028-00 CIRCLIPCIRCLIP
-
165GT-11500-00-00 BALANCER ASSYBALANCER ASSY
-
1793306-30525-00 BEARING (B6305)BEARING (B6305)
-
1893306-30534-00 BEARINGBEARING
-
1993101-25106-00 OIL SEALOIL SEAL
