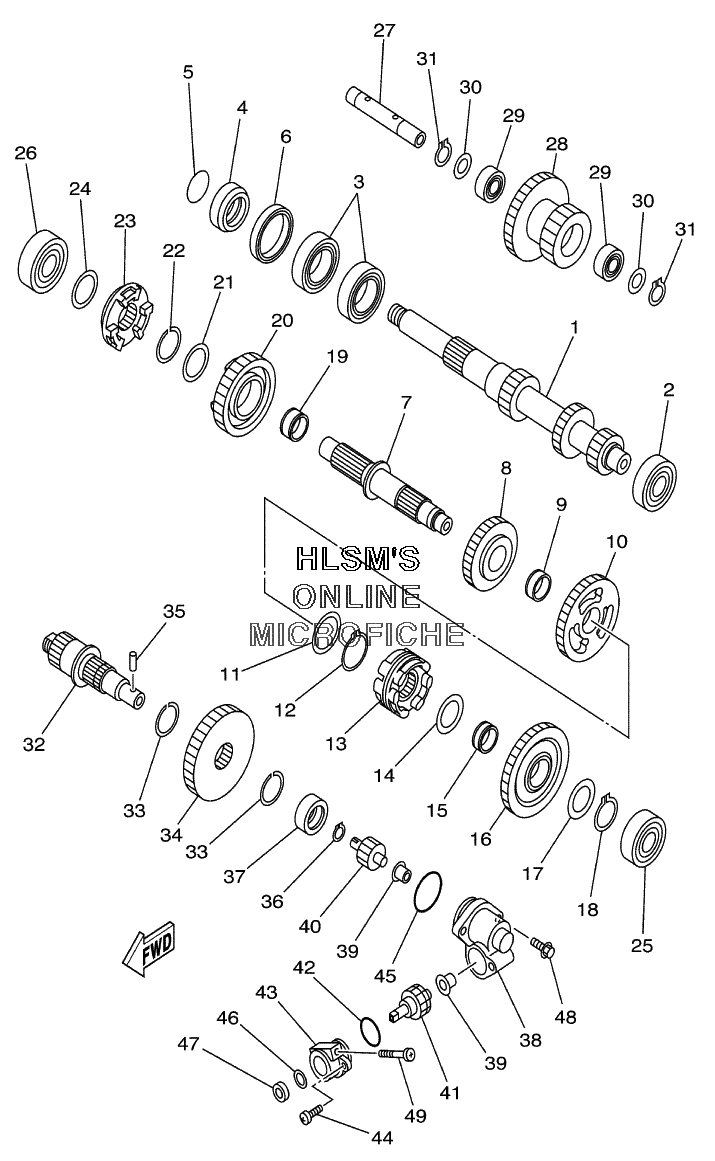

TRANSMISSION для Yamaha GRIZZLY HUNTER EDITION YFM600FWAHN (5GTK) - 2001 года выпуска
-
№АртикулНазвание
-
15GT-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-20434-00 BEARING (B6204)BEARING (B6204)
-
393306-00612-00 BEARINGBEARING
-
490387-2611X-00 COLLARCOLLAR
-
593210-26741-00 O-RINGO-RING
-
693102-42322-00 OIL SEALOIL SEAL
-
75GT-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
85GT-17582-00-00 GEAR, MIDDLE DRIVE (25 TEETH)GEAR, MIDDLE DRIVE (25 TEETH)
-
993310-32590-00 BEARINGBEARING
-
105GT-17223-00-00 GEAR, HIGH WHEEL (30 TEETH)GEAR, HIGH WHEEL (30 TEETH)
-
1190201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1293440-25084-00 CIRCLIPCIRCLIP
-
135GT-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
1490201-20278-00 WASHER, PLATEWASHER, PLATE
-
1593310-420F2-00 BEARINGBEARING
-
165GT-17233-00-00 GEAR, LOW WHEEL (38 TEETH)GEAR, LOW WHEEL (38 TEETH)
-
1790201-20278-00 WASHER, PLATEWASHER, PLATE
-
1893410-20038-00 ...CIRCLIP...CIRCLIP
-
1993310-32590-00 BEARINGBEARING
-
205GT-17253-00-00 GEAR, REVERSE WHEEL (27 TEETH)GEAR, REVERSE WHEEL (27 TEETH)
-
2190201-250R9-00 WASHER, PLATEWASHER, PLATE
-
2293440-25084-00 CIRCLIPCIRCLIP
-
235GT-17286-00-00 HOLDERHOLDER
-
2490201-20278-00 WASHER, PLATEWASHER, PLATE
-
2593306-30209-00 BEARINGBEARING
-
2693306-30441-00 BEARINGBEARING
-
274WV-17432-00-00 AXLE, IDLEAXLE, IDLE
-
284WV-17243-00-00 GEAR, REVERSE WHEELGEAR, REVERSE WHEEL
-
2993311-51554-00 BEARINGBEARING
-
3090201-150U6-00 WASHER, PLATEWASHER, PLATE
-
3199009-15400-00 CIRCLIPCIRCLIP
-
325GT-17523-00-00 SHAFTSHAFT
-
3393440-25084-00 CIRCLIPCIRCLIP
-
345GT-17583-00-00 GEAR, MIDDLE DRIVEN (34 TEETH)GEAR, MIDDLE DRIVEN (34 TEETH)
-
3593603-14240-00 PIN, DOWELPIN, DOWEL
-
3693440-14155-00 CIRCLIPCIRCLIP
-
3793311-42077-00 BEARINGBEARING
-
384WV-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
3990381-08002-00 BUSH, SOLIDBUSH, SOLID
-
404WV-17831-00-00 GEAR, DRIVEGEAR, DRIVE
-
414WV-17841-00-00 GEAR, DRIVENGEAR, DRIVEN
-
4293210-24253-00 O-RINGO-RING
-
4359V-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
4498507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4593210-32172-00 O-RINGO-RING
-
4690201-12163-00 WASHER, PLATEWASHER, PLATE
-
4793102-08307-00 OIL SEALOIL SEAL
-
4895027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
4998507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
