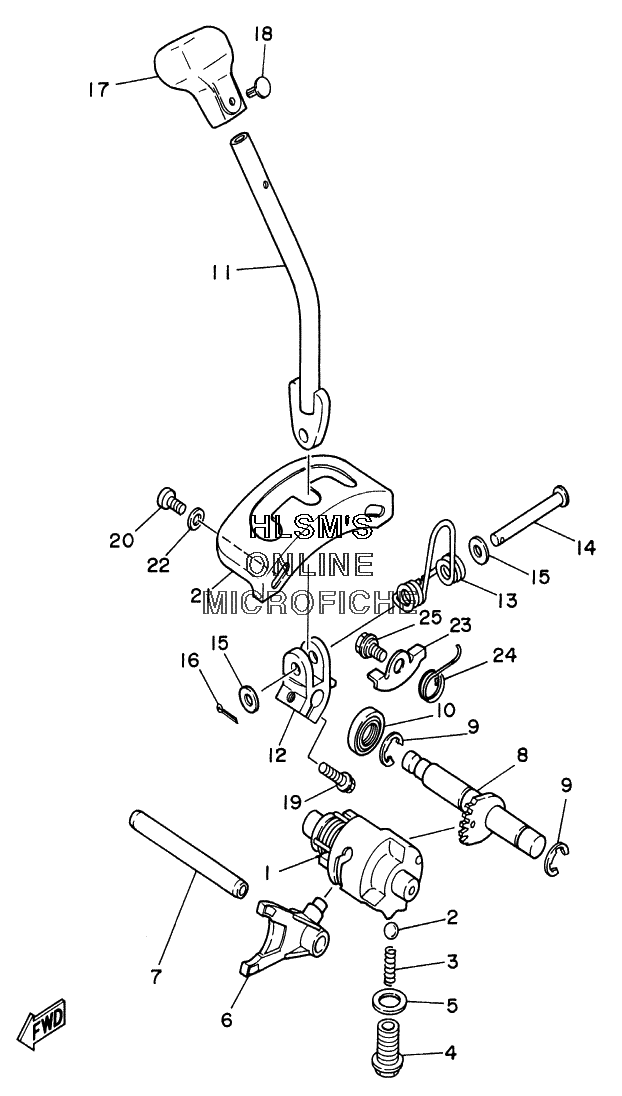

SHIFT CAM - FORK для Yamaha BREEZE YFA1N (3FAT) - 2001 года выпуска`
-
№АртикулНазвание
-
13FA-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293503-08007-00 BALLBALL
-
390501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
490105-14367-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590430-14194-00 GASKETGASKET
-
64GB-18512-00-00 FORK, SHIFTFORK, SHIFT
-
71HX-18535-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
83FA-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
999001-12600-00 CIRCLIPCIRCLIP
-
1093102-14209-00 OIL SEALOIL SEAL
-
113FA-18152-00-00 LEVER, SHIFTLEVER, SHIFT
-
123FA-18164-00-00 BOSS, SHIFTBOSS, SHIFT
-
1390508-29760-00 SPRING, TORSIONSPRING, TORSION
-
1491701-08058-00 PIN, CLEVISPIN, CLEVIS
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
1691401-25015-00 PIN, COTTERPIN, COTTER
-
173FA-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
1890269-05055-00 RIVETRIVET
-
1995827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090110-06142-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
213FA-18128-00-00 BRACKETBRACKET
-
2292907-06600-00 WASHER, PLATEWASHER, PLATE
-
233FA-18191-00-00 LEVERLEVER
-
2490508-12761-00 SPRING, TORSIONSPRING, TORSION
-
2590109-063F7-00 BOLTBOLT
