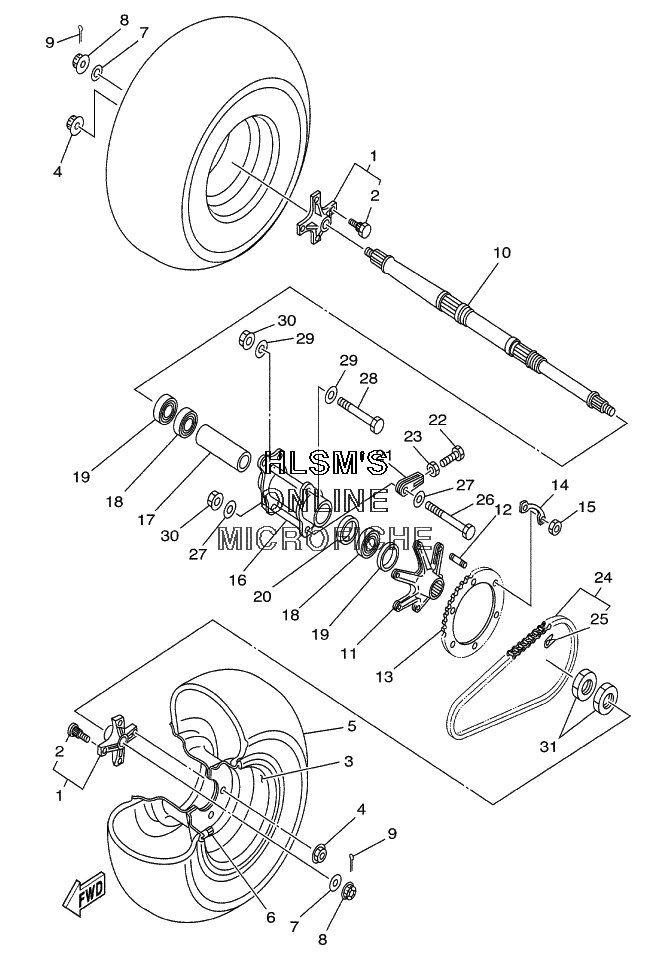

WHEEL - REAR W/ AXLE для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска`
-
№АртикулНазвание
-
12XJ-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
32VY-25390-00-35 REAR WHEEL COMP.REAR WHEEL COMP.
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
594110-085W9-00 TIRE (AT21X10-8KT895A T/L N) (UR) (DUNLOP)TIRE (AT21X10-8KT895A T/L N) (UR) (DUNLOP)
-
693900-00022-00 VALVE, RIM (TAIHEIYA)VALVE, RIM (TAIHEIYA)
-
790201-14226-00 WASHER, PLATEWASHER, PLATE
-
890171-14037-00 NUT, CASTLENUT, CASTLE
-
991401-30030-00 PIN, COTTERPIN, COTTER
-
102XJ-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
112XJ-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
1290116-08507-00 BOLT, STUDBOLT, STUD
-
132XJ-25440-20-00 SPROCKET, DRIVEN (40 TEETH)SPROCKET, DRIVEN (40 TEETH)
-
142XJ-25412-00-00 WASHERWASHER
-
1590170-08258-00 NUTNUT
-
162XJ-25311-00-35 HUB, REARHUB, REAR
-
172XJ-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
1893306-00705-00 BEARINGBEARING
-
1993102-42260-00 OIL SEALOIL SEAL
-
2090387-561U7-00 COLLARCOLLAR
-
212XJ-25388-00-00 PULLER, CHAINPULLER, CHAIN
-
2290101-08777-00 BOLTBOLT
-
2395307-08600-00 NUTNUT
-
2494581-08092-00 CHAINCHAIN
-
2594681-08011-00 ...JOINT, CHAIN (D.I.D 520V6-FJ)...JOINT, CHAIN (D.I.D 520V6-FJ)
-
2690101-10678-00 BOLTBOLT
-
2790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
2890101-10678-00 BOLTBOLT
-
2990201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3095707-10500-00 NUT, FLANGENUT, FLANGE
-
3190170-33376-00 NUTNUT
