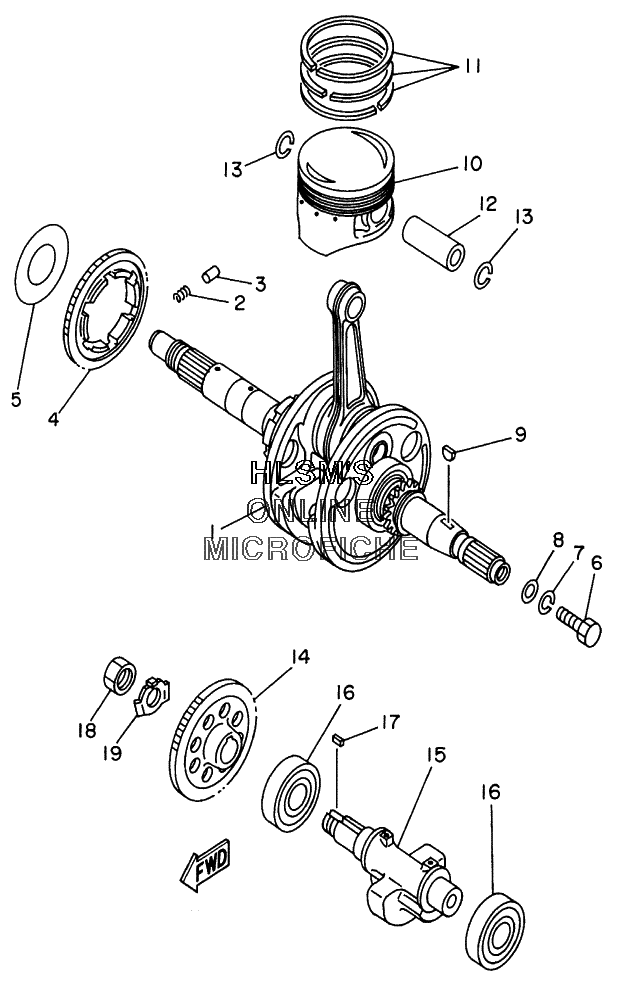

CRANKSHAFT - PISTON для Yamaha BIG BEAR 2WD REALTREE YFM400NHN (5GW4) - 2001 года выпуска`
-
№АртикулНазвание
-
15EH-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
290501-22721-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
393605-10090-00 PIN, DOWELPIN, DOWEL
-
43Y1-11531-02-00 GEAR, BALANCE WTGEAR, BALANCE WT
-
54KB-11565-00-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
690101-10568-00 BOLTBOLT
-
792907-10100-00 WASHER, SPRINGWASHER, SPRING
-
890201-107F8-00 WASHER, PLATEWASHER, PLATE
-
990280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
104GB-11631-00-Y0 PISTON (STANDARD)PISTON (STANDARD)
-
104GB-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
104GB-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
114GB-11610-00-00 PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
114GB-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
114GB-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
1251Y-11633-00-00 PIN, PISTONPIN, PISTON
-
1393450-19095-00 CIRCLIPCIRCLIP
-
144KB-11536-01-00 GEAR, DRIVEGEAR, DRIVE
-
151UY-11454-00-00 WEIGHTWEIGHT
-
1693306-20532-00 BEARINGBEARING
-
1790282-05034-00 KEY, STRAIGHTKEY, STRAIGHT
-
1890170-16326-00 NUTNUT
-
1990215-16270-00 WASHER, LOCKWASHER, LOCK
