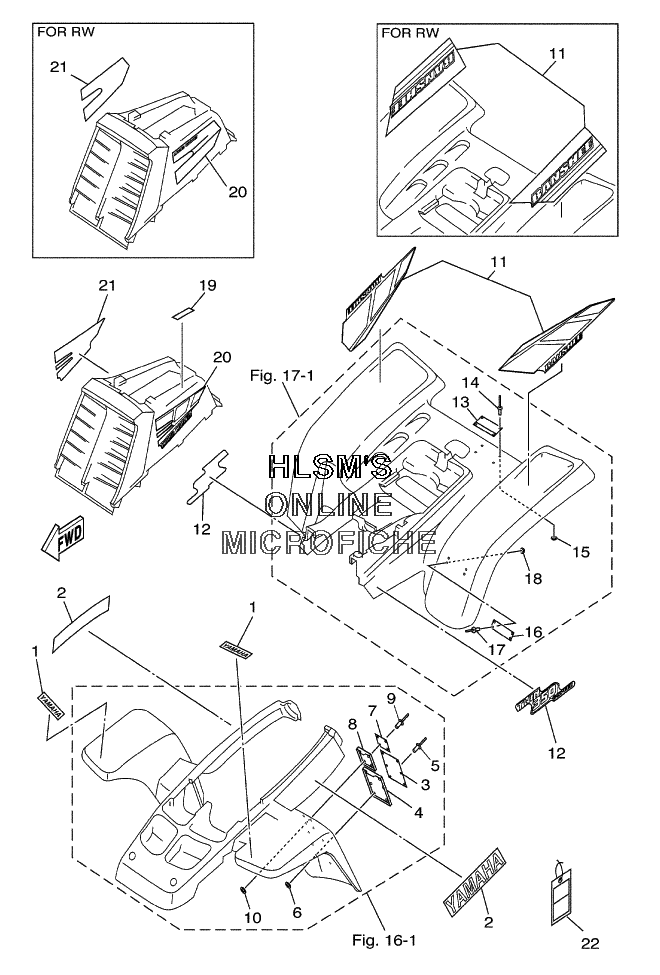

EMBLEMS - LABLES для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска`
-
№АртикулНазвание
-
13GD-2153E-00-00 EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)
-
13GD-2153E-10-00 EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)
-
299241-00280-00 EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)
-
299247-00280-00 EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)
-
35FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
44EM-21581-00-00 STAY, PLATE FITTING (OUJ) (RADICAL WHITE)STAY, PLATE FITTING (OUJ) (RADICAL WHITE)
-
44EM-21581-20-00 STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)
-
590267-32198-00 RIVET, BLINDRIVET, BLIND
-
690201-03313-00 WASHER, PLATEWASHER, PLATE
-
75FE-21697-01-00 LABEL, CAUTIONLABEL, CAUTION
-
83JM-21591-00-00 STAY, PLATE FITTING (OUJ) (RADICAL WHITE)STAY, PLATE FITTING (OUJ) (RADICAL WHITE)
-
83JM-21591-10-00 STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)
-
990267-32198-00 RIVET, BLINDRIVET, BLIND
-
1090201-03313-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
115FK-2165A-11-00 GRAPHIC SET, REAR FENDER (583) (DEEP PURPLISH BLUE SOLID)GRAPHIC SET, REAR FENDER (583) (DEEP PURPLISH BLUE SOLID)
-
115FK-2165A-21-00 GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)
-
125FK-21783-02-00 EMBLEM (583) (DEEP PURPLISH BLUE SOLID)EMBLEM (583) (DEEP PURPLISH BLUE SOLID)
-
125FK-21783-12-00 EMBLEM (OUJ) (RADICAL WHITE)EMBLEM (OUJ) (RADICAL WHITE)
-
135FE-2151H-01-00 LABELLABEL
-
1490267-32109-00 RIVET, BLINDRIVET, BLIND
-
1590201-03313-00 WASHER, PLATEWASHER, PLATE
-
165FK-21696-01-00 LABEL, CAUTIONLABEL, CAUTION
-
1790267-32109-00 RIVET, BLINDRIVET, BLIND
-
1890201-03313-00 WASHER, PLATEWASHER, PLATE
-
193XJ-2415E-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
205FK-2173E-11-00 GRAPHIC (583) (DEEP PURPLISH BLUE SOLID)GRAPHIC (583) (DEEP PURPLISH BLUE SOLID)
-
205FK-2173E-20-00 GRAPHIC (OUJ) (RADICAL WHITE)GRAPHIC (OUJ) (RADICAL WHITE)
-
215FK-2173F-11-00 GRAPHIC (583) (DEEP PURPLISH BLUE SOLID)GRAPHIC (583) (DEEP PURPLISH BLUE SOLID)
-
215FK-2173F-20-00 GRAPHIC (OUJ) (RADICAL WHITE)GRAPHIC (OUJ) (RADICAL WHITE)
-
223JM-2819R-00-00 TAG, WARNINGTAG, WARNING
