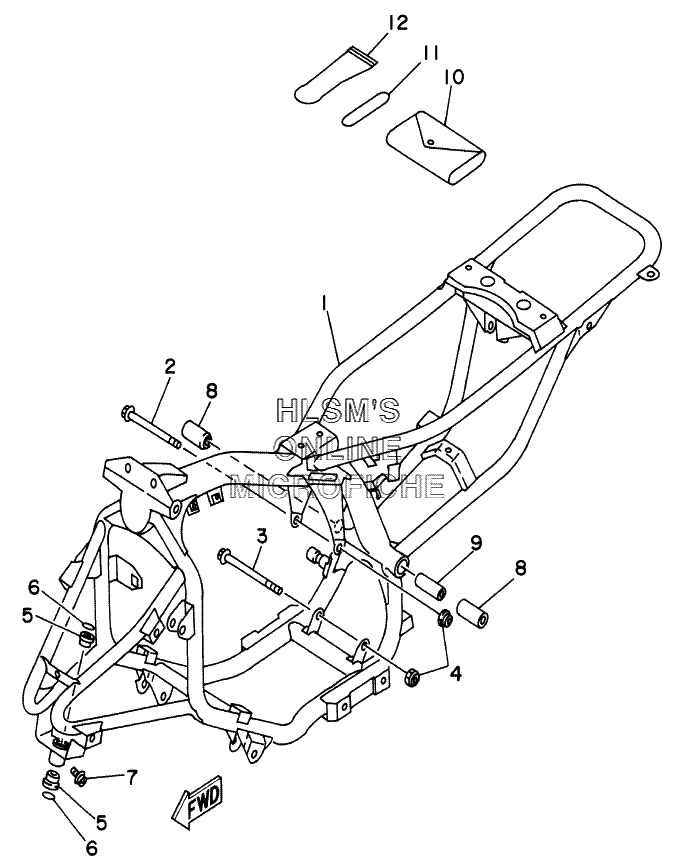

FRAME для Yamaha BADGER YFM80NC CALIFORNIA (4EMY) - 2001 года выпуска
-
№АртикулНазвание
-
14EM-21110-00-33 FRAME COMPFRAME COMP
-
295817-08115-00 BOLT, FLANGEBOLT, FLANGE
-
395817-08120-00 BOLT, FLANGEBOLT, FLANGE
-
495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590381-15040-00 BUSH, SOLIDBUSH, SOLID
-
693210-15414-00 O-RINGO-RING
-
793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
83GB-22123-00-00 BUSHBUSH
-
93GB-22155-00-00 PIPEPIPE
-
103GB-28100-00-00 TOOL KITTOOL KIT
-
1193210-40407-00 O-RINGO-RING
-
121NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
Все узлы модели:
- CAMSHAFT CHAIN
- CARBURETOR W/INTAKE
- CLUTCH
- CRANKCASE
- CRANKCASE - COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS - LABELS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- • FRAME
- FUEL TANK
- GENERATOR
- GUARD
- HANDLEBAR LH SWITCHES/LEVERS
- HANDLEBAR W/CABLES - RH SWITCHES/LEVERS
- MIDDLE DRIVE GEAR
- MODEL INFO - COLOR CHART
- OIL PUMP
- SEAT
- SHIFT CAM - FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - REAR ARM
- TRANSMISSION
- VALVE
- WHEEL - FRONT W/BRAKE
- WHEEL - REAR W/BRAKE
