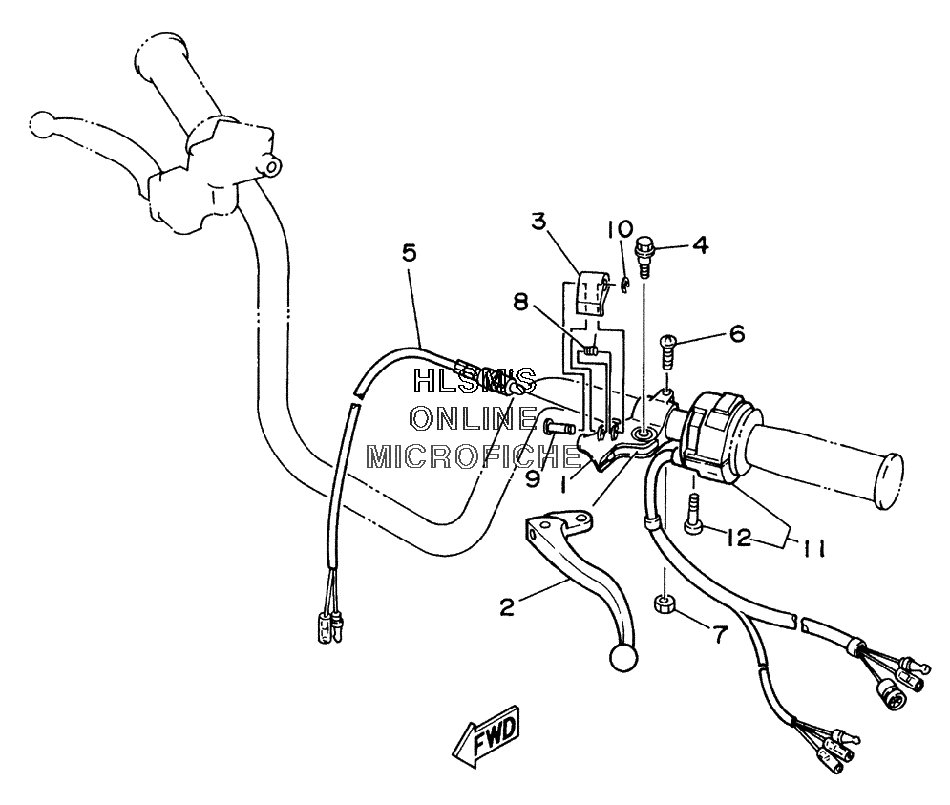

HANDLEBAR - SWITCHES/LEVERS для Yamaha BREEZE YFA1MC CALIFORNIA (3FAP) - 2000 года выпуска`
-
№АртикулНазвание
-
13FA-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
23FA-83912-00-00 LEVER 1LEVER 1
-
33FA-83965-00-00 LEVER, LOCKLEVER, LOCK
-
490109-06799-00 BOLTBOLT
-
51YW-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
698507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
795607-06100-00 NUT, UNUT, U
-
83FA-83966-00-00 SPRING, RETURNSPRING, RETURN
-
93FA-83967-00-00 PIN, LOCK 1PIN, LOCK 1
-
103FA-26466-00-00 RING, SNAPRING, SNAP
-
113FA-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1298506-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
