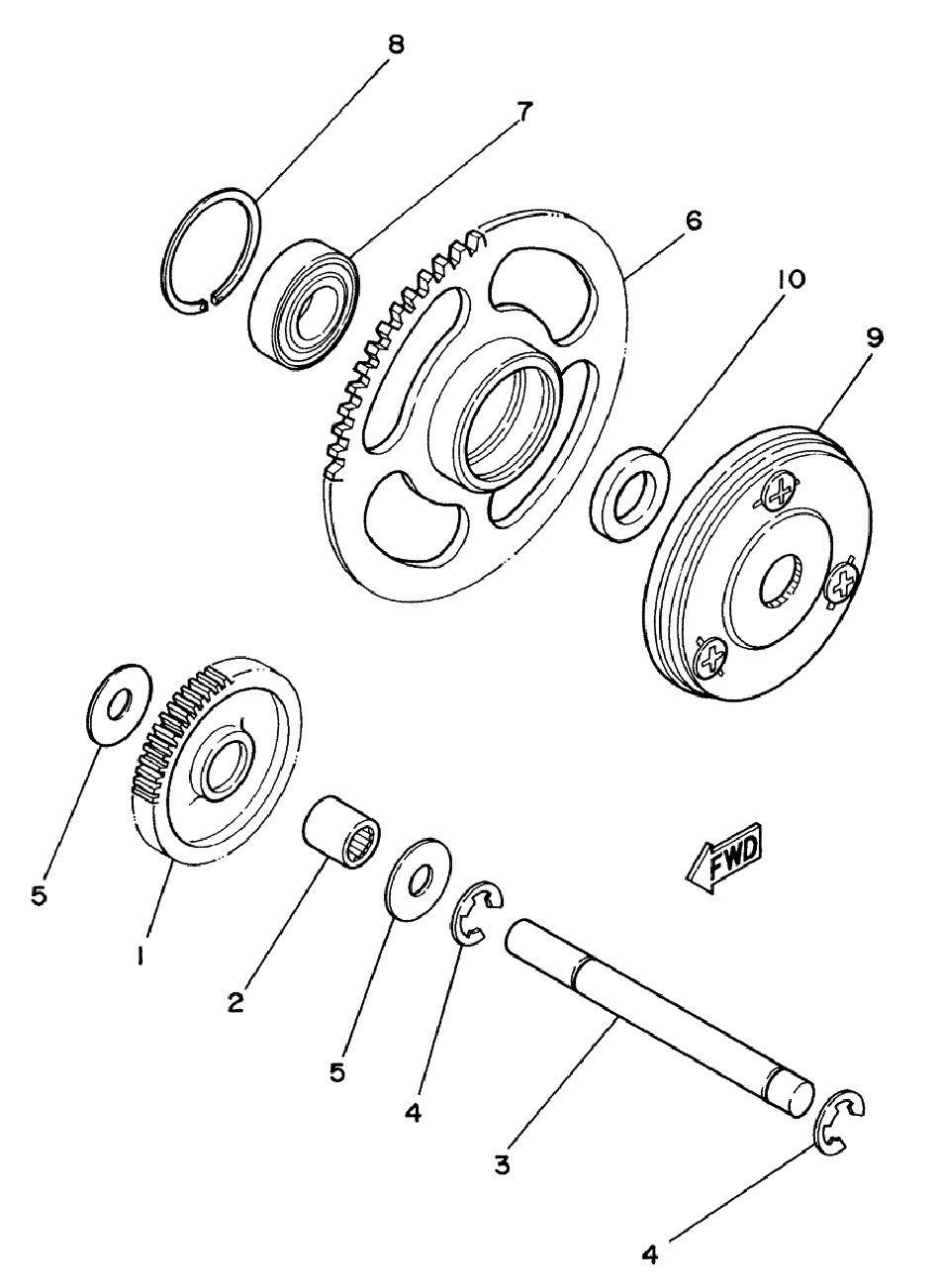

STARTER CLUTCH для Yamaha BREEZE YFA1M (3FAR) - 2000 года выпуска
-
№АртикулНазвание
-
150M-15512-00-00 GEAR, IDLER 1 (55T-14T)GEAR, IDLER 1 (55T-14T)
-
293315-11040-00 BEARINGBEARING
-
33FA-15521-00-00 SHAFT 1SHAFT 1
-
499001-09600-00 CIRCLIPCIRCLIP
-
590201-10135-00 WASHER, PLATEWASHER, PLATE
-
650M-15524-00-00 WHEEL, STARTER (55T)WHEEL, STARTER (55T)
-
793306-00307-00 BEARINGBEARING
-
893450-35015-00 CIRCLIPCIRCLIP
-
950M-15570-02-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
1090201-163F8-00 WASHER, PLATEWASHER, PLATE
