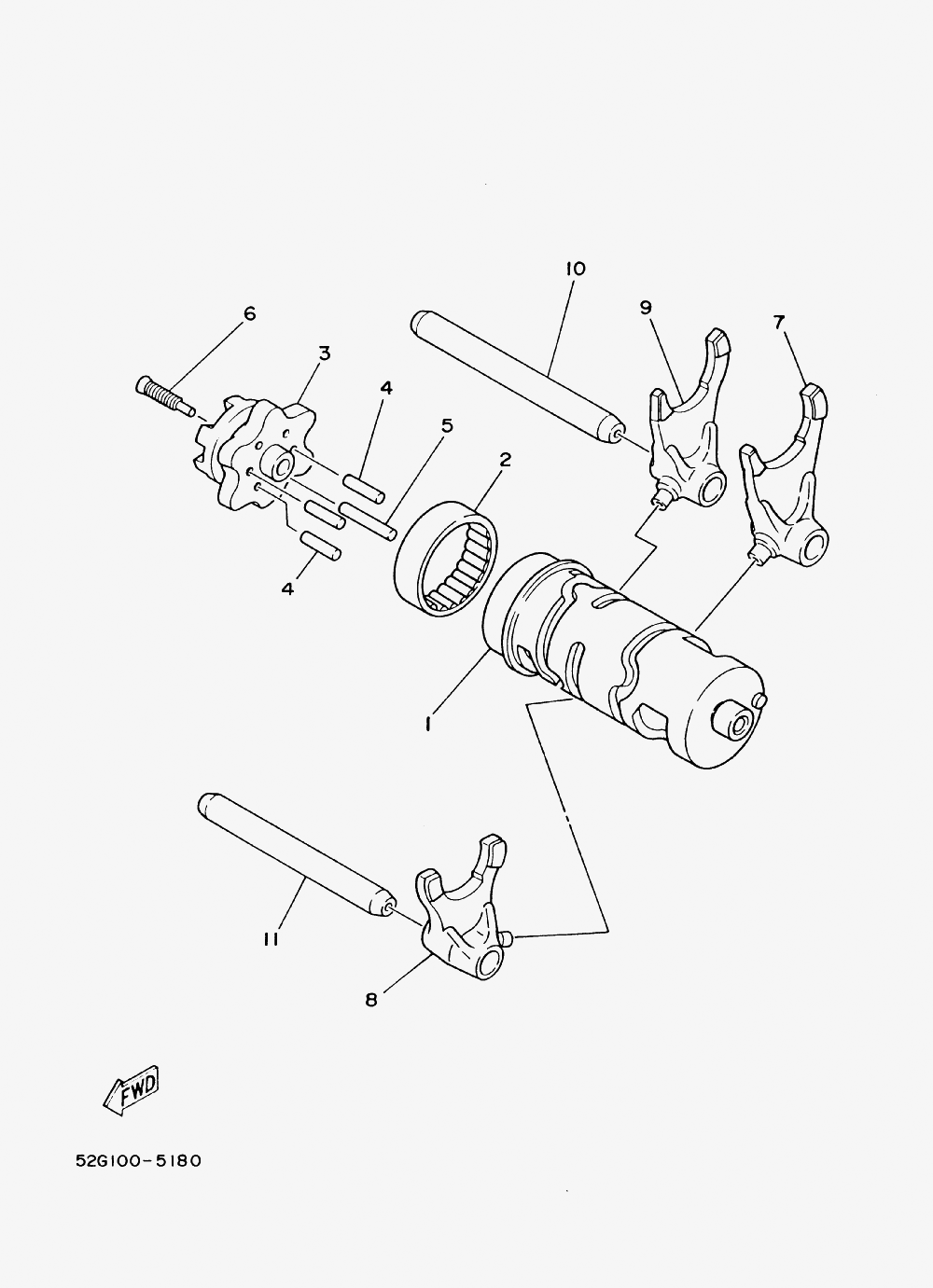

SHIFT CAM W/ FORK для Yamaha BEARTRACKER 2WD YFM250M (4XE5) - 2000 года выпуска
-
№АртикулНазвание
-
152G-18540-01-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293315-23607-00 BEARING, CYL.#15BEARING, CYL.#15
-
35H0-18185-01-00 SEGMENTSEGMENT
-
493604-16092-00 PIN, DOWELPIN, DOWEL
-
593604-20156-00 PIN, DOWELPIN, DOWEL
-
690151-06013-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
74JG-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
84JG-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
94BD-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
103GX-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
113GX-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
