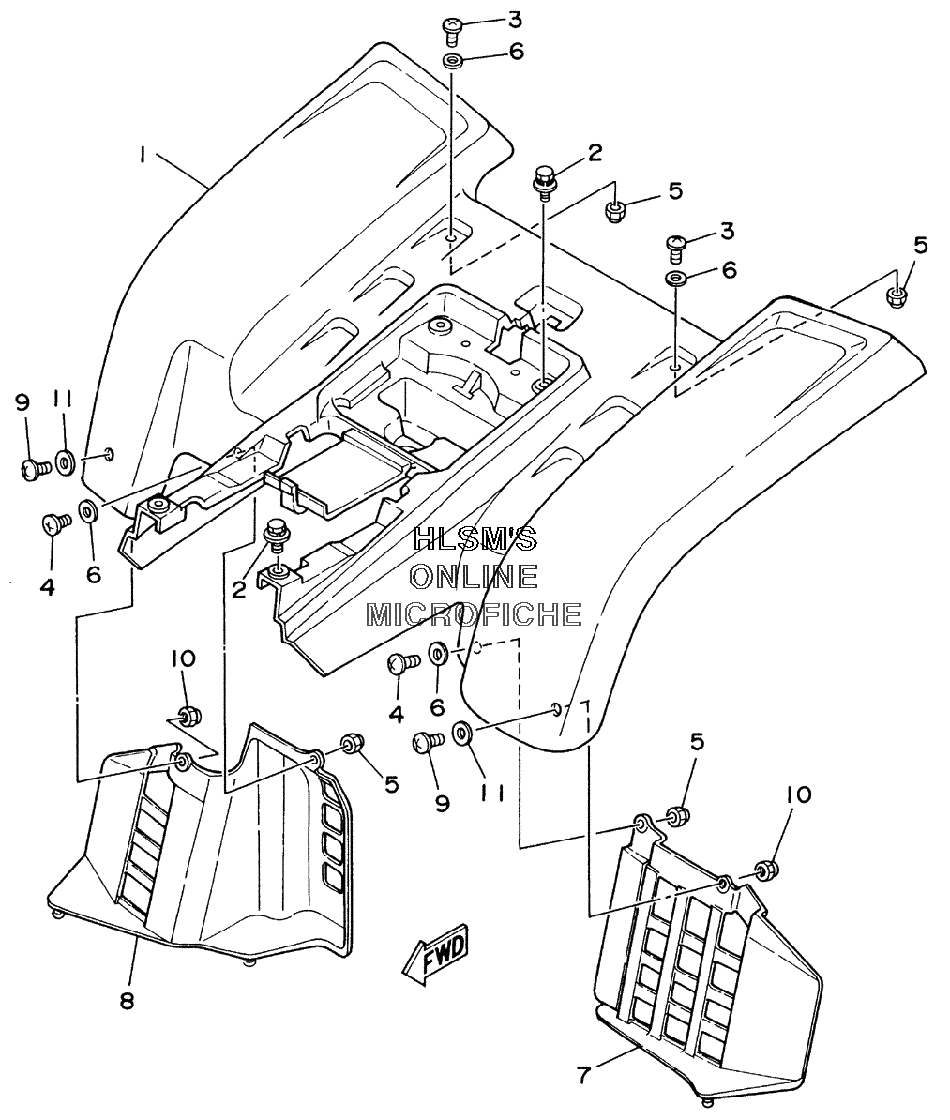

FENDER - REAR для Yamaha BANSHEE YFZ350M (5FK6) - 2000 года выпуска`
-
№АртикулНазвание
-
12GU-W2161-91-00 REAR FENDER COMP. (RADICAL WHITE) (RW)REAR FENDER COMP. (RADICAL WHITE) (RW)
-
12GU-W2161-B1-00 REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390149-06306-00 SCREWSCREW
-
490150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
595607-06100-00 NUT, UNUT, U
-
692907-06200-00 WASHERWASHER
-
73GG-21691-00-00 FLAP (YB)FLAP (YB)
-
83GG-21621-00-00 FLAP (YB)FLAP (YB)
-
990149-06306-00 SCREWSCREW
-
1095607-06100-00 NUT, UNUT, U
-
1192907-06200-00 WASHERWASHER
