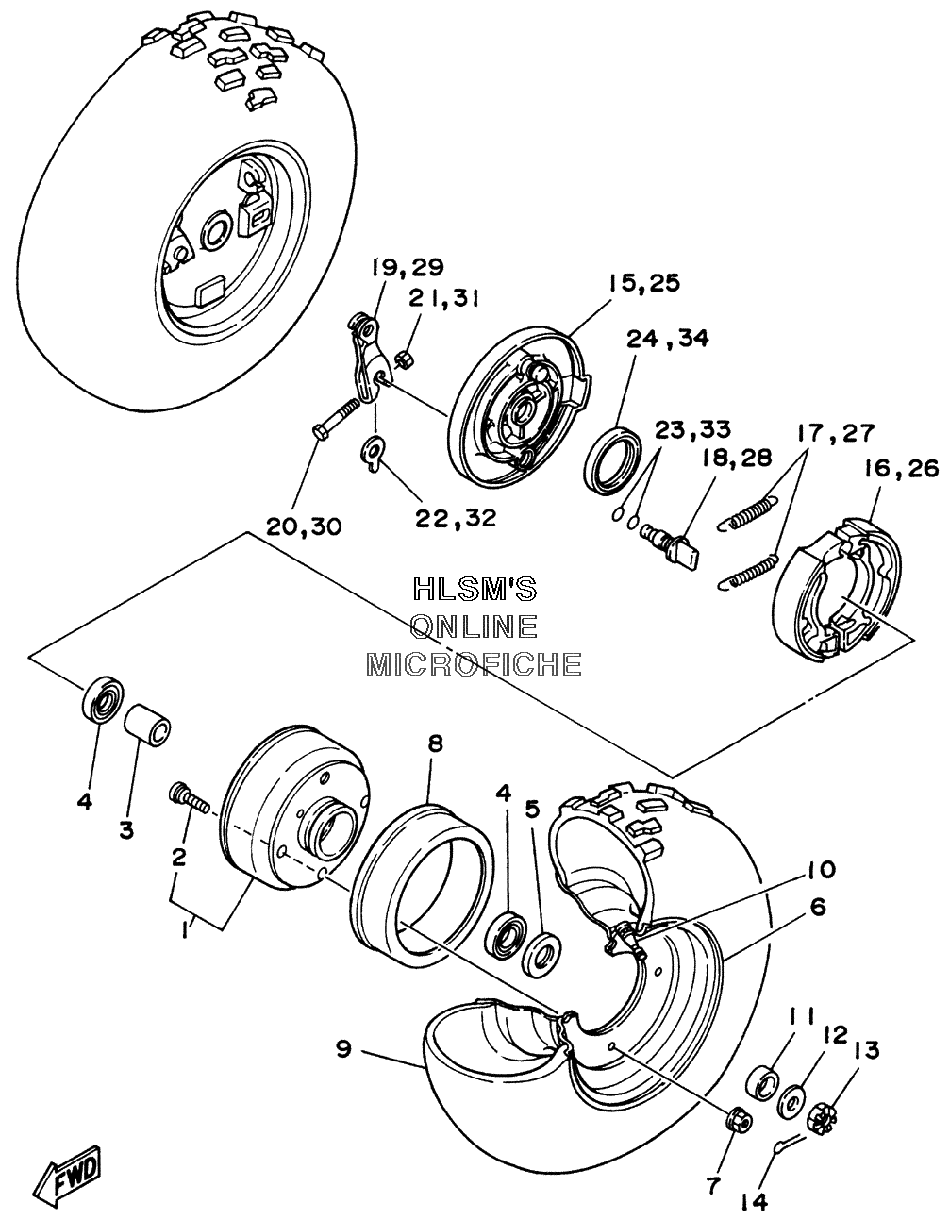

WHEEL - FRONT W/ AXLE ASSY для Yamaha BADGER YFM80MC CALIFORNIA (4EMS) - 2000 года выпуска`
-
№АртикулНазвание
-
12FJ-25111-00-00 HUB, FRONTHUB, FRONT
-
290109-08745-00 ...BOLT...BOLT
-
33FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
493306-00308-00 BEARING (B6003)BEARING (B6003)
-
593102-23275-00 OIL SEALOIL SEAL
-
62FJ-25180-00-35 WHEEL COMP. (SL)WHEEL COMP. (SL)
-
795707-08500-00 NUT, FLANGENUT, FLANGE
-
83GB-25185-00-00 RING 1RING 1
-
994107-073Y9-00 TIRE (AT18X7-7 *KT586T/L N) (DUNLOP)TIRE (AT18X7-7 *KT586T/L N) (DUNLOP)
-
1093900-00022-00 VALVE, RIM (TAIHEIYO)VALVE, RIM (TAIHEIYO)
-
1190387-175R2-00 COLLARCOLLAR
-
1290201-14586-00 WASHER, PLATEWASHER, PLATE
-
1390171-14020-00 NUT, CASTLENUT, CASTLE
-
1491401-30025-00 PIN, COTTERPIN, COTTER
-
152FJ-25121-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
164KN-W2536-11-00 BRAKE SHOE SETBRAKE SHOE SET
-
1790506-15260-00 SPRING, TENSIONSPRING, TENSION
-
183GB-25151-00-00 CAMSHAFTCAMSHAFT
-
192FJ-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
2090101-06278-00 BOLTBOLT
-
2195307-06600-00 NUTNUT
-
2252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2393210-12327-00 O-RINGO-RING
-
2493102-40367-00 OIL SEALOIL SEAL
-
252FJ-25169-00-00 PLATE, BRAKE SHOE 2PLATE, BRAKE SHOE 2
-
264KN-W2536-11-00 BRAKE SHOE SETBRAKE SHOE SET
-
2790506-15260-00 SPRING, TENSIONSPRING, TENSION
-
283GB-25151-00-00 CAMSHAFTCAMSHAFT
-
292FJ-25156-00-00 LEVER, CAMSHAFT 2LEVER, CAMSHAFT 2
-
3090101-06278-00 BOLTBOLT
-
3195307-06600-00 NUTNUT
-
3252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3393210-12327-00 O-RINGO-RING
-
3493102-40367-00 OIL SEALOIL SEAL
