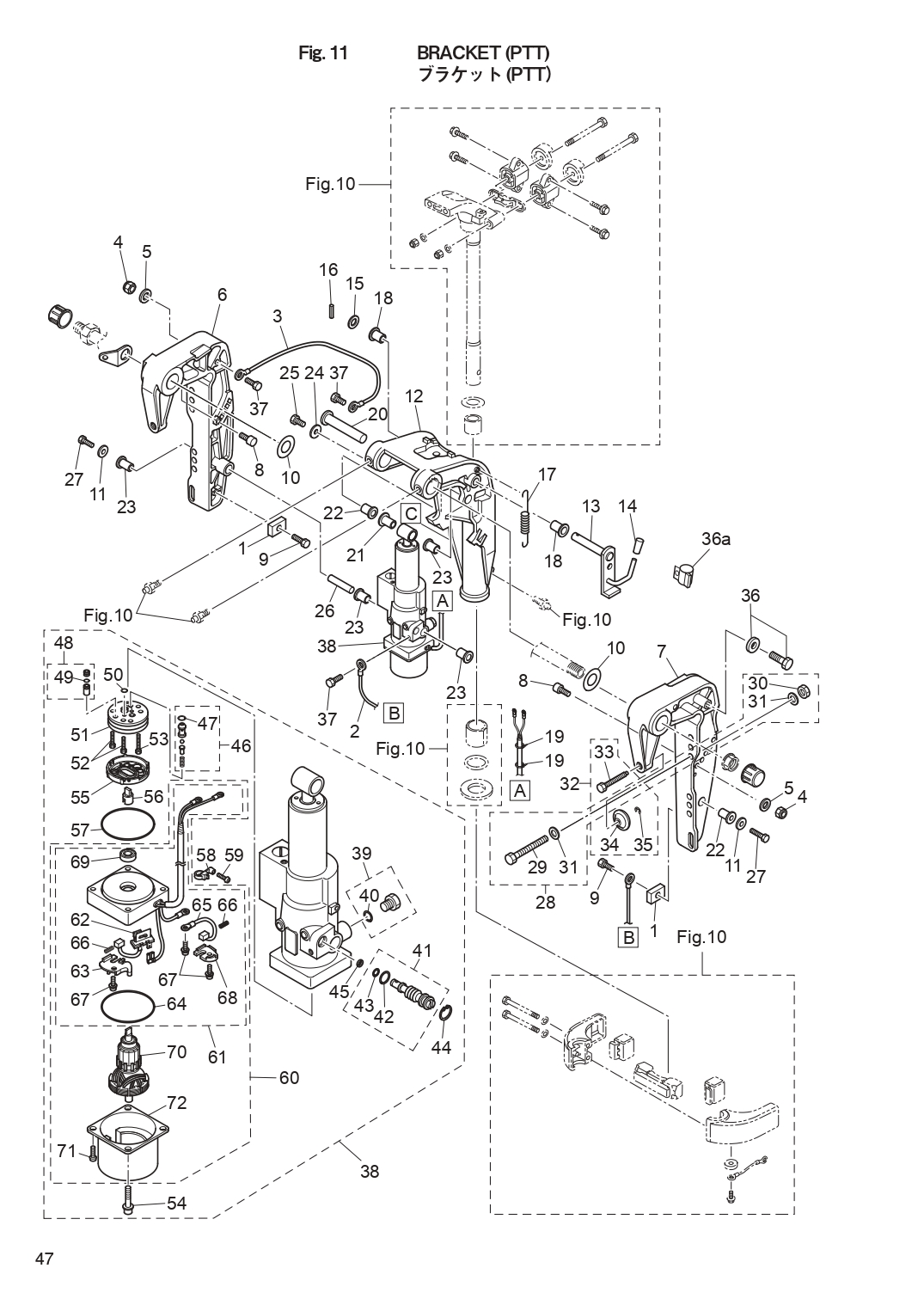

BRACKET (PTT) для Tohatsu MFS9.9E - 2021 года выпуска`
-
№АртикулНазвание
-
13H6-60218-0 ANODEANODE
-
2398-62396-1 GROUND L=130
Clamp Bracket (L)-PTGROUND L=130
Clamp Bracket (L)-PT -
3398-62396-1 GROUND L=130
Clamp Bracket (R)-Swivel BrackeyGROUND L=130
Clamp Bracket (R)-Swivel Brackey -
43V5-62442-0 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
53P0-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
63Z0Q77211-2 CLAMP BRACKET (PTT-R)CLAMP BRACKET (PTT-R)
-
73Z0Q77212-0 CLAMP BRACKET (PTT-L)CLAMP BRACKET (PTT-L)
-
83Z0-77115-0 TRIM LOCK PINTRIM LOCK PIN
-
9910103-5616 BOLTBOLT
-
103AA-62116-0 WASHER 22-36-1
NylonWASHER 22-36-1
Nylon -
11307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
123RSQ77208-0 SWIVEL BRACKET ASSY
Transom "L"&"UL"SWIVEL BRACKET ASSY
Transom "L"&"UL" -
123RTQ77208-0 SWIVEL BRACKET ASSY
Transom "S"SWIVEL BRACKET ASSY
Transom "S" -
133Z0-62476-2 TILT STOPPERTILT STOPPER
-
14369-62433-1 TILT STOPPER GRIPTILT STOPPER GRIP
-
159401E3-1000 WASHERWASHER
-
16951403-3516 SPRING PIN 3.5-16SPRING PIN 3.5-16
-
173R0-62473-0 TILT STOPPER SPRINGTILT STOPPER SPRING
-
18353-63207-0 COLLAR 10.2-12-12COLLAR 10.2-12-12
-
193Z0-84398-0 BAND 203BAND 203
-
203KY-77071-0 CYLINDER PIN (UPPER)CYLINDER PIN (UPPER)
-
213Z0-77076-0 BUSHING 13-16-31BUSHING 13-16-31
-
223R0-77076-0 BUSHING 13-17-19.5 13-17-19.5BUSHING 13-17-19.5 13-17-19.5
-
233Z0-77076-0 BUSHING 13-16-31BUSHING 13-16-31
-
24345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
259101E3-0612 BOLTBOLT
-
263Z0-77101-1 CYLINDER PIN (LOWER)CYLINDER PIN (LOWER)
-
279101E3-0820 BOLTBOLT
-
283BJ-72120-0 RIGGING BOLT SETRIGGING BOLT SET
-
299101E3-0885 * BOLT* BOLT
-
309301E3-0800 * NUT* NUT
-
319401E3-0800 * WASHER* WASHER
-
323RS-77217-0 CLAMP SCREW KITCLAMP SCREW KIT
-
333RS-77216-0 * CLAMP SCREW (PTT)* CLAMP SCREW (PTT)
-
34332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
35945303-0600 * E-RING d=6* E-RING d=6
-
369101E3-5616 BOLTBOLT
-
36a345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
37910103-5612 BOLTBOLT
-
383RSQ77151-0 PT ASSYPT ASSY
-
393Z0-77221-0 * CAP ASSY* CAP ASSY
-
403B7-77169-0 ** O-RING** O-RING
-
413BA-77175-0 * MANUAL VALVE ASSY* MANUAL VALVE ASSY
-
423R0-77177-0 ** O-RING 2.4-9.8** O-RING 2.4-9.8
-
433Z0-77179-0 ** O-RING** O-RING
-
443R0-77171-0 * C-RING* C-RING
-
453AC-77173-0 * SEAL WASHER* SEAL WASHER
-
463BA-77450-0 * RELIEF VALVE ASSY* RELIEF VALVE ASSY
-
473Z0-77179-0 ** O-RING** O-RING
-
483Z0-77460-0 * VALVE ASSY* VALVE ASSY
-
493R0-77451-0 ** O-RING 1.5-3.5** O-RING 1.5-3.5
-
503B7-77169-0 * O-RING* O-RING
-
513B7-77430-0 * PUMP* PUMP
-
523B7-77432-1 * BOLT* BOLT
-
533B7-77431-1 * BOLT* BOLT
-
543Z0-77431-0 * BOLT* BOLT
-
553B7-77434-1 * FILTER* FILTER
-
563E0-77163-0 * COUPLING* COUPLING
-
573R0-77167-0 * O-RING 2-62.5* O-RING 2-62.5
-
583Z1-84398-1 * BAND* BAND
-
593V1-64333-0 * PRE-COATED SCREW 5-12* PRE-COATED SCREW 5-12
-
603RS-77180-0 * MOTOR ASSY* MOTOR ASSY
-
613RS-77192-0 ** MOTOR BRACKET ASSY** MOTOR BRACKET ASSY
-
623Z0-77191-0 *** BREAKER*** BREAKER
-
633Z0-77187-0 *** BREAKER HOLDER*** BREAKER HOLDER
-
643Z0-77167-0 *** O-RING*** O-RING
-
653E0-77183-0 *** BRUSH*** BRUSH
-
663E0-77184-0 *** BRUSH SPRING*** BRUSH SPRING
-
67921521-5512 *** SCREW*** SCREW
-
683Z0-77186-0 *** BRUSH HOLDER*** BRUSH HOLDER
-
693E0-77193-0 *** OIL SEAL*** OIL SEAL
-
703Z0-77190-0 ** ARMATURE ASSY** ARMATURE ASSY
-
719215E3-5512 ** SCREW** SCREW
-
723Z0-77195-0 ** YOKE ASSY** YOKE ASSY
